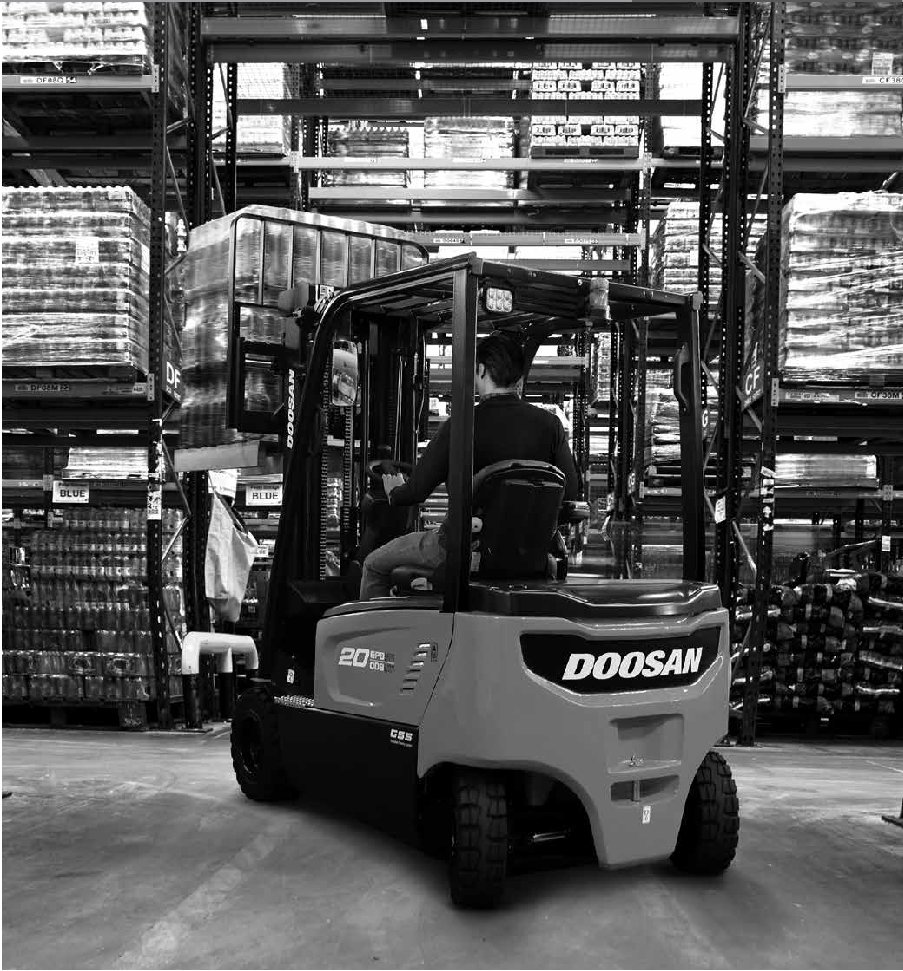

Doosan B35X-7 PLUS Specs

Quick-reference specifications for the Doosan B35X-7 PLUS forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Max. Gradeability, loaded/unloaded: 20/31 %

Performance 11 specs

Load Capacity	3,500 kg
Tyres: pneumatic (P), solid (E), cushion (C)	P, E
Tilt of Mast/Fork carriage Forward/Backward	6/9 °
External Turning Radius	2,155 mm
Travel Speed, loaded/unloaded	16/18 km/h
Lift Speed, loaded/unloaded	380/600 mm/s
Lowering Speed, loaded/unloaded	500/460 mm/s
Max. Drawbar pull, loaded/unloaded	17,338/16,426 N
Max. Gradeability, loaded/unloaded	20/31 %
Service brake	hydraulic
Parking brake	auto-electric

Dimensions 18 specs

Load Center	500 mm
Load Distance: Center of Drive axle to fork	454 mm
Wheelbase	1,750 mm
Tyre size, Front	23X10-12
Tyre size, Rear	18X7-8
Height, Mast lowered	2,160 mm
Free Lift	152 mm
Maximum Fork Height	3,000 mm
Height, Mast Extended	3,760 mm
Height of Overhead Guard	2,210 mm
Height of Seat	1,070 mm
Overall Length	3,614 mm
Length to Forkface	2,564 mm
Fork Dimensions	45X125X1,050 mm
Fork carriage width	1,115 mm
Fork spacing	286/1,044 mm
Aisle width for pallets 1,000 X 1,200 crossways	3,832 mm
Aisle width for pallets 800 X 1,200 lengthways	4,010 mm

Weight 2 specs

Axle loading, loaded, front/rear	7,940/1,046 kg
Axle loading, unloaded, front/rear	2,532/2,954 kg

Power / Engine 7 specs

Service weight with min. weight of battery	5,486 kg
Drive motor S2 60 min	10.0 X 2 kW
Lift motor rating at S3 15%	21 kW
Battery Compartment	1,040 X 865 X 805 mm
Battery voltage, nominal capacity K5	80/600 V/Ah
Battery weight	1,870 kg
Type of drive control	MOSFET Inverter

Hydraulics / Fluids 2 specs

Operating pressure for attachments – System	235 bar
Operating pressure for attachments – Attachment	155 bar
