Forklift · Doosan

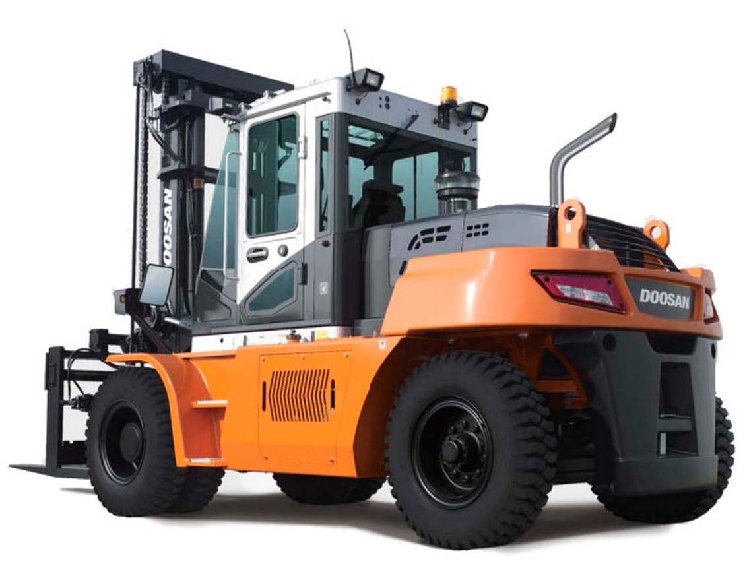

Doosan D120S-7 Specs
Quick-reference specifications for the Doosan D120S-7 forklift, from the manufacturer’s spec sheet and published specifications.
- Gradeability (Loaded)
- 38%
Performance 11 specs
| Load Capacity (at 600mm load center) | 26,000 lb (12 t) |
|---|---|
| Max Travel Speed (Loaded) | 15.5 mph (25 km/h) |
| Max Travel Speed (Unloaded) | 16.2 mph (29 km/h) |
| Lift Speed (Loaded) | 62 ft/min (0.31 m/s) |
| Lift Speed (Unloaded) | 67 ft/min (0.34 m/s) |
| Gradeability (Loaded) | 38% |
| Maximum Climbing Ability | 36% |
| Hoisting Speed (Loaded) | 0.40 m/s |
| Hoisting Speed (Unloaded) | 0.47 m/s |
| Lowering Speed (Loaded) | 0.43 m/s |
| Lowering Speed (Unloaded) | 0.41 m/s |
Dimensions 10 specs
| Overall Length (to fork face) | 155 in (3.94 m) |
|---|---|
| Overall Width | 78.7 in (2.35 m) |
| Height to Top of Overhead Guard | 110.2 in (2.99 m) |
| Construction Height | 118 in (2.99 m) |
| Wheelbase | 98.4 in (2.50 m) |
| Ground Clearance | 9.1 in (0.23 m) |
| Turning Radius | 14.07 ft (4.29 m) |
| Mast Collapsed Height | 108 in (2.74 m) |
| Mast Extended Height | 157 in (3.99 m) |
| Fork Length | 80 in (2.03 m) |
Weight 3 specs
| Service Weight (Unloaded) | 33,510 lb (15,190 kg) |
|---|---|
| Weight with Full Load (front axle) | 24,960 lb (11,316 kg) |
| Weight with Full Load (rear axle) | 3,230 lb (1,465 kg) |
Power / Engine 7 specs
| Engine Model | DL06P |
|---|---|
| Engine Power | 158 hp (118 kW) |
| Engine Displacement | 359.6 cu in (5.89 L) |
| Number of Cylinders | 6 |
| Max Torque | 535.6 lb-ft (725.9 Nm) |
| Fuel Tank Capacity | 52.8 gal (200 L) |
| Fuel Consumption | 4.0 gal/hr (15.3 L/hr) |
Hydraulics / Fluids 2 specs
| Hydraulic Tank Capacity | 27 gal (102 L) |
|---|---|
| Steering Angle | 44 degrees |
