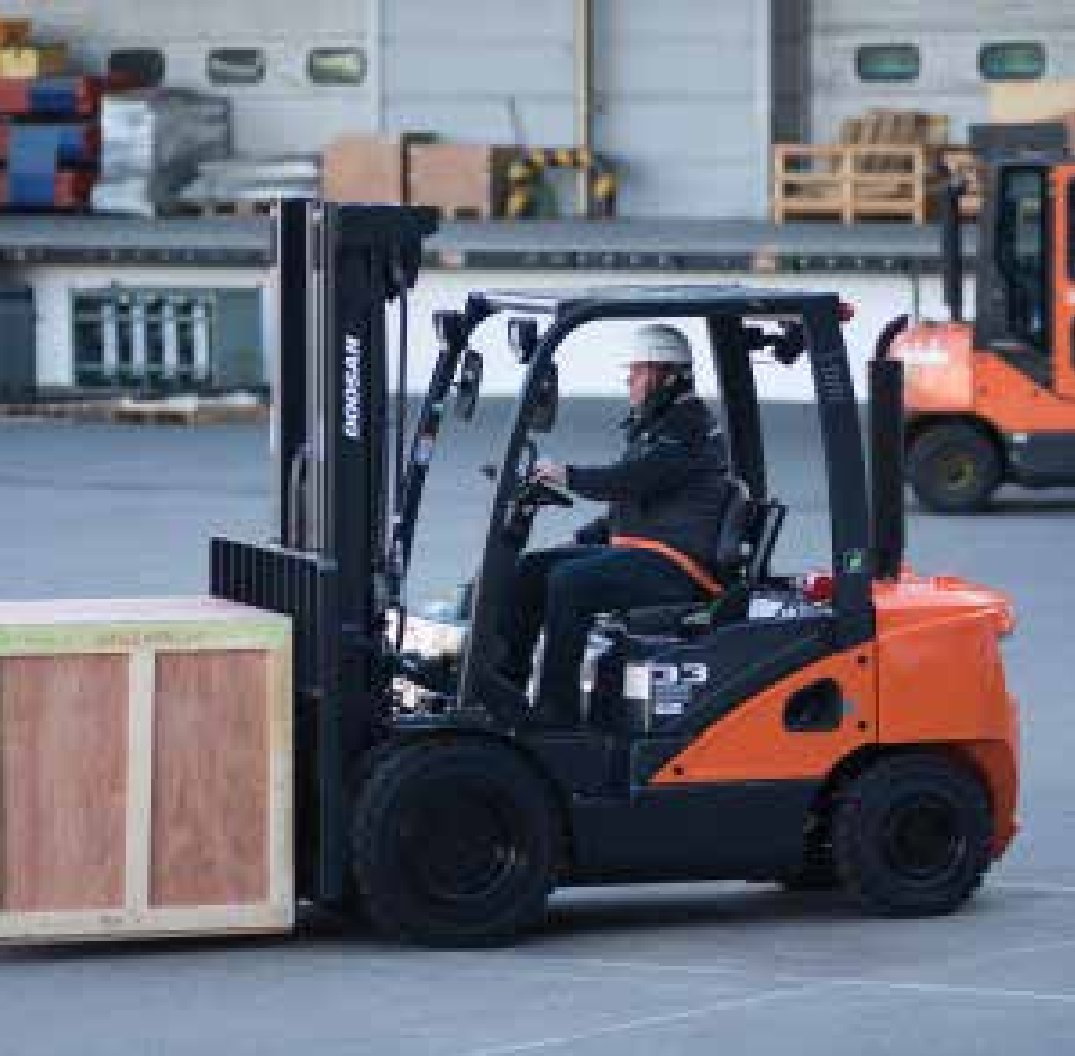

Doosan D30S-7 Specs

Quick-reference specifications for the Doosan D30S-7 forklift, taken from the manufacturer’s spec sheet.

Performance 1 spec

Load Capacity	3,000 kg

Load Center	500 mm
Load Distance: Center of Driveaxle to fork	485 mm
Wheelbase	2,115 mm
Height, Mast lowered	1,700 mm
Free Lift	152 mm
Lift Height	3,230 mm
Height, Mast Extended	4,490 mm
Height of Overhead Guard(Cabin)	2,183 mm
Height of Seat	1,026 mm
Overall Length	3,744 mm
Length to Forkface	2,700 mm
Overall Width	1,197 mm
Fork Dimensions	45x125x1,050 mm
