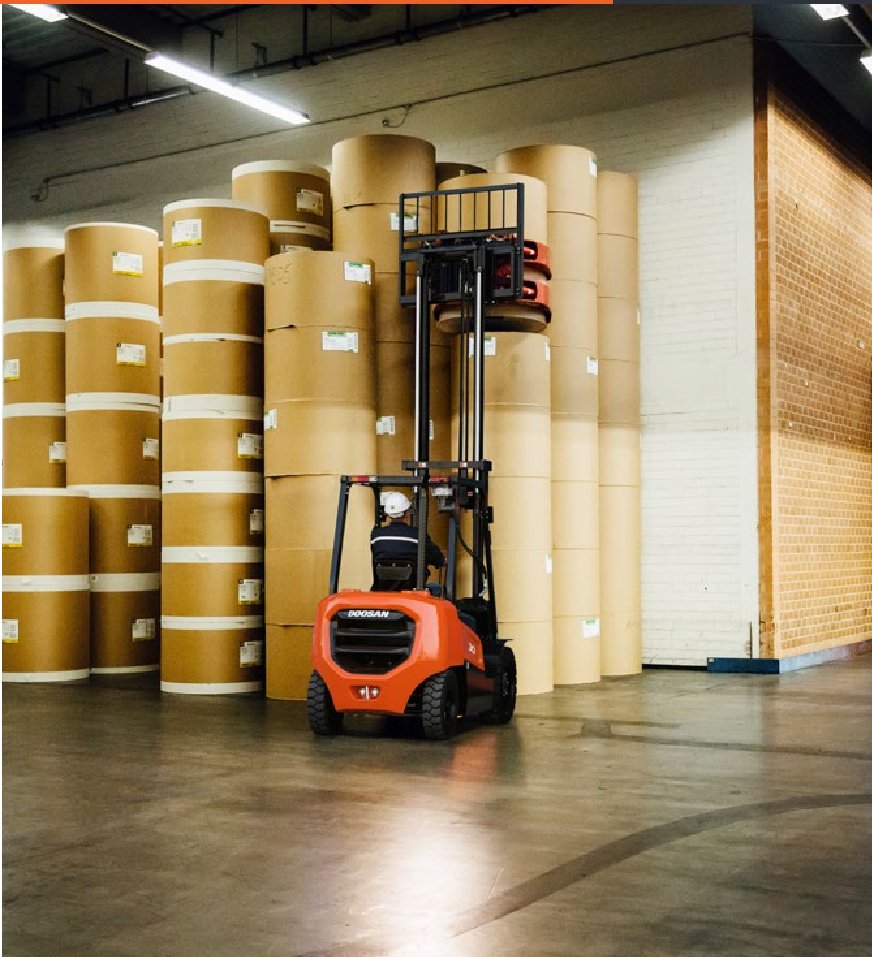

Doosan D35NXP Specs

Quick-reference specifications for the Doosan D35NXP forklift, taken from the manufacturer’s spec sheet.

Performance 2 specs

Load capacity/rated load	3,500 kg
Turning radius	2,480 mm

Load centre	500 mm
Load distance, centre of drive axle to fork	477 mm
Wheelbase	1,700 mm
Height, mast lowered	2,045 mm
Free Lift	150 mm
Lift (with STD 2-stage mast)	3,000 mm
Height, mast extended	4,252 mm
Height of overhead guard	2,160 mm
Height of seat	1,185 mm
Overall length	3,800 mm
Length to fork face	2,750 mm
Overall width	1,290 mm
