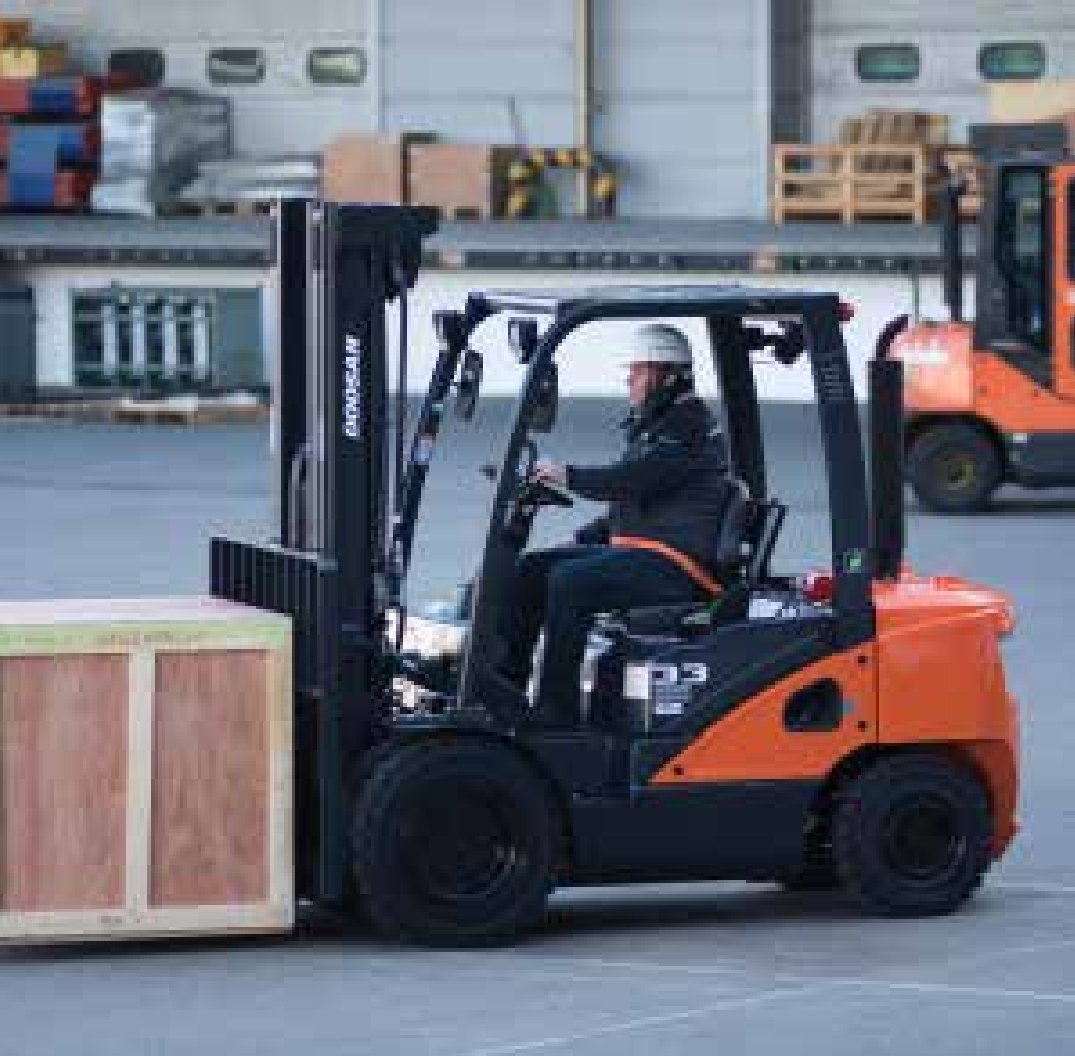

Doosan D35S-7 Specs

Quick-reference specifications for the Doosan D35S-7 forklift, taken from the manufacturer’s spec sheet.

Performance 1 spec

Load Capacity	3,500 kg

Load Center	600 mm
Load Distance: Center of Driveaxle to fork	560 mm
Wheelbase	2,015 mm
Height, Mast lowered	2,225 mm
Free Lift	160 mm
Lift Height	3,000 mm
Height, Mast Extended	4,265 mm
Height of Overhead Guard(Cabin)	2,225 mm
Height of Seat	1,248 mm
Overall Length	4,165 mm
Length to Forkface	3,115 mm
Overall Width	1,370 mm
Fork Dimensions	50x150x1,200 mm
