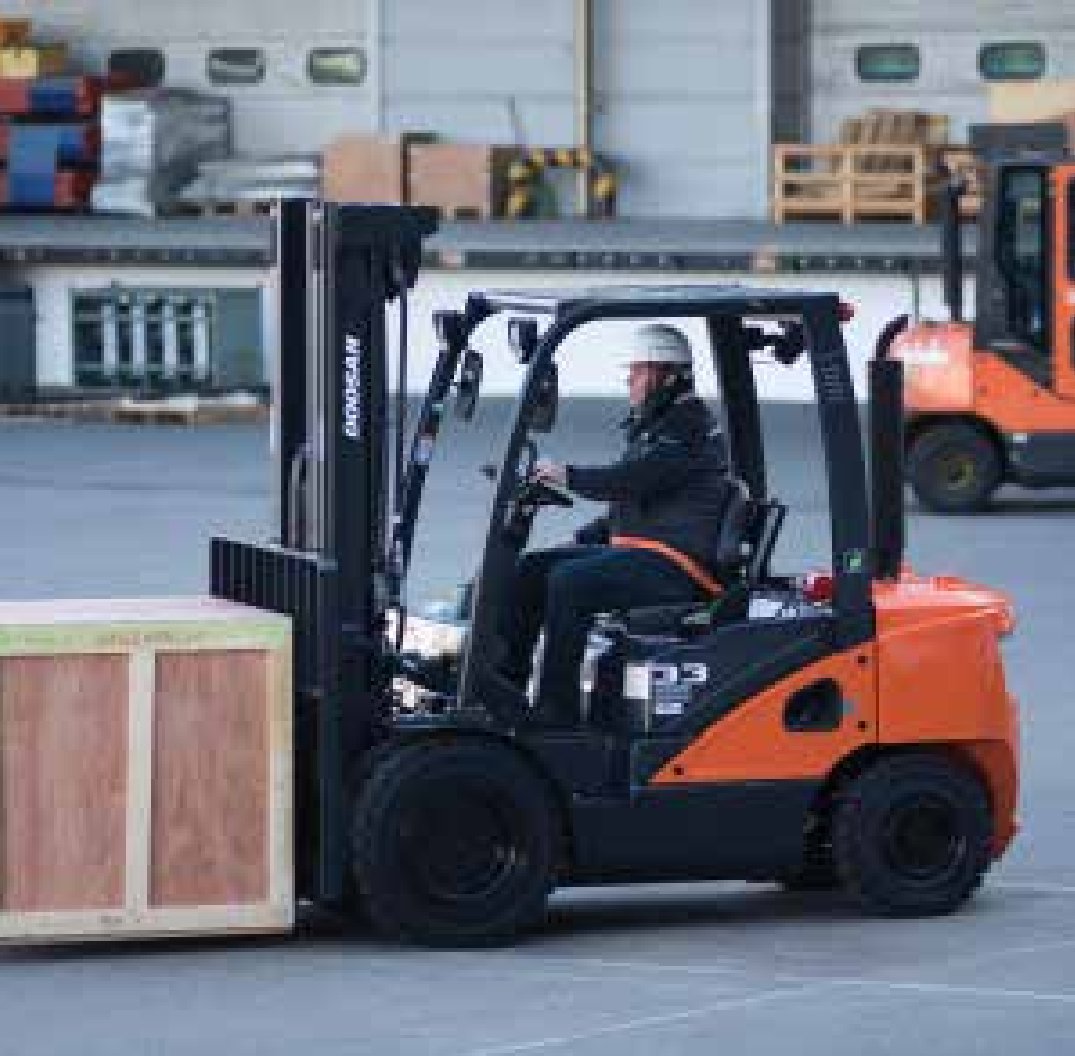

Doosan D40S-7 Specs

Quick-reference specifications for the Doosan D40S-7 forklift, taken from the manufacturer’s spec sheet.

Performance 1 spec

Load Capacity	4,000 kg

Load Center	600 mm
Load Distance: Center of Driveaxle to fork	560 mm
Wheelbase	2,015 mm
Height, Mast lowered	2,230 mm
Free Lift	160 mm
Lift Height	3,000 mm
Height, Mast Extended	4,270 mm
Height of Overhead Guard(Cabin)	2,230 mm
Height of Seat	1,255 mm
Overall Length	4,215 mm
Length to Forkface	3,165 mm
Overall Width	1,455 mm
Fork Dimensions	50x150x1,200 mm
