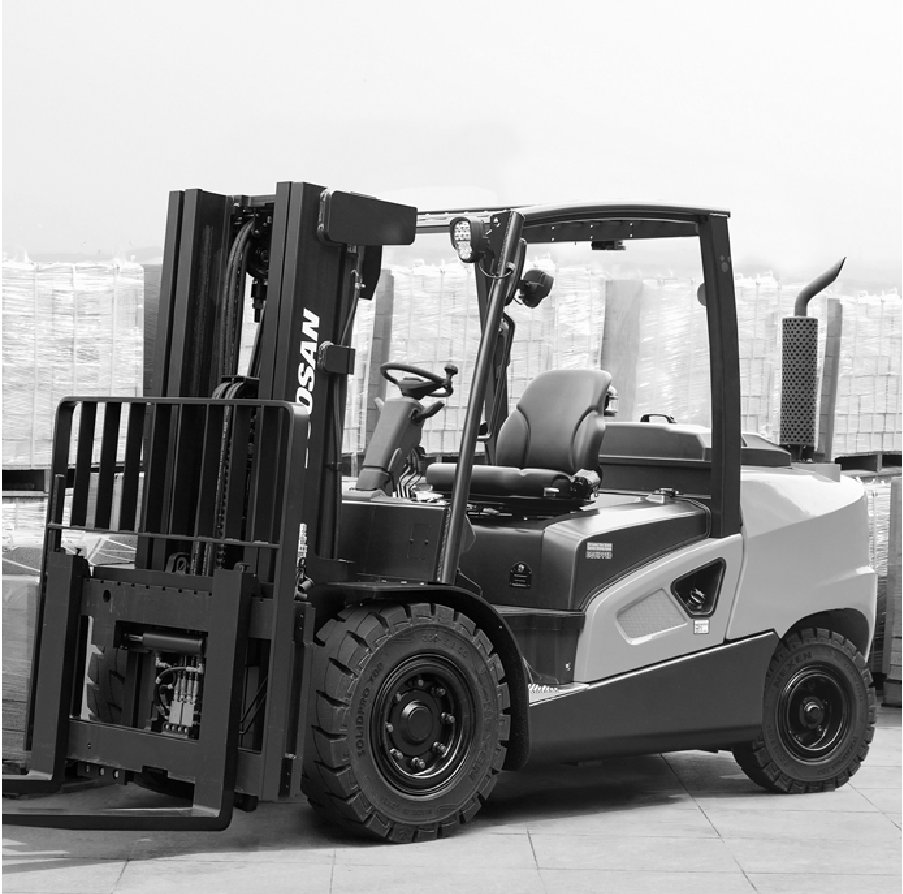

Doosan D45S-9 Specs

Quick-reference specifications for the Doosan D45S-9 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Gradeability, Loaded (@ 1.6km/h): 31.5 %

Performance 15 specs

Drive	Diesel
Load Capacity	4,500 kg
Tyres: pneumatic (P), cushion (C)	P
Tilt of Mast/Fork carriage Forward/Backward	8/10 °
External Turning Radius	2,850 mm
Travel Speed, Loaded/unloaded	24.0/26.0 km/h
Lift Speed, Loaded/unloaded	0.54/0.60 mm/s
Lowering Speed, Loaded/unloaded	0.45/0.50 mm/s
Drawbar pull, Loaded (@ 1.6km/h)	33,564 N
Max. Drawbar pull, Loaded	36,970 N
Gradeability, Loaded (@ 1.6km/h)	31.5 %
Max. Gradeability, Loaded	35 %
Service Brake	Foot/Hyd
Rated Speed	2,200 min-1
Sound level at th driver’s ear according to EN 12 053	79 dB (A)

Dimensions 18 specs

Load Center	600 mm
Load Distance: Center of Drive axle to fork	560 mm
Wheelbase	2,115 mm
Tyre size, Front	300X15-18PR/7.50X16-12PR
Tyre size, Rear	7.00X12-12PR
Height, Mast lowered	2,230 mm
Free Lift	160 mm
Maximum fork height	3,000 mm
Height, Mast Extended	4,420 mm
Height of Overhead Guard	2,230 mm
Height of Seat	1,225 mm
Overall Length	4,480 mm
Length to Forkface	3,260 mm
Overall Width	1,455 mm
Fork Dimensions	50X150X1,200 mm
Fork carriage ISO 2328, class/type A,B	IV
Aisle width for pallets 1,000 x 1,200 crossways	4,610 mm
Aisle width for pallets 800 x 1,200 crossways	4,810 mm

Weight 3 specs

Service weight	6,530 kg
Axle Loading, Loaded Front/Rear	9,960/1,070 kg
Axle Loading, Unloaded Front/Rear	2,630/3,900 kg

Power / Engine 5 specs

Engine Manufacturer/type	DI
Engine power according to DIN ISO1585	55.4 kW
Number of Cylinders/Displacement	4/3,409 cc -/cm3
Fuel consumption according to VDI cycle	5.2 l/h
Battery Voltage/normal capacity	12/100 V/Ah

Hydraulics / Fluids 3 specs

Operating pressure for attachments	160 bar
Oil volume for attachments	110 l/min
Fuel Tank Capacity	119 l
