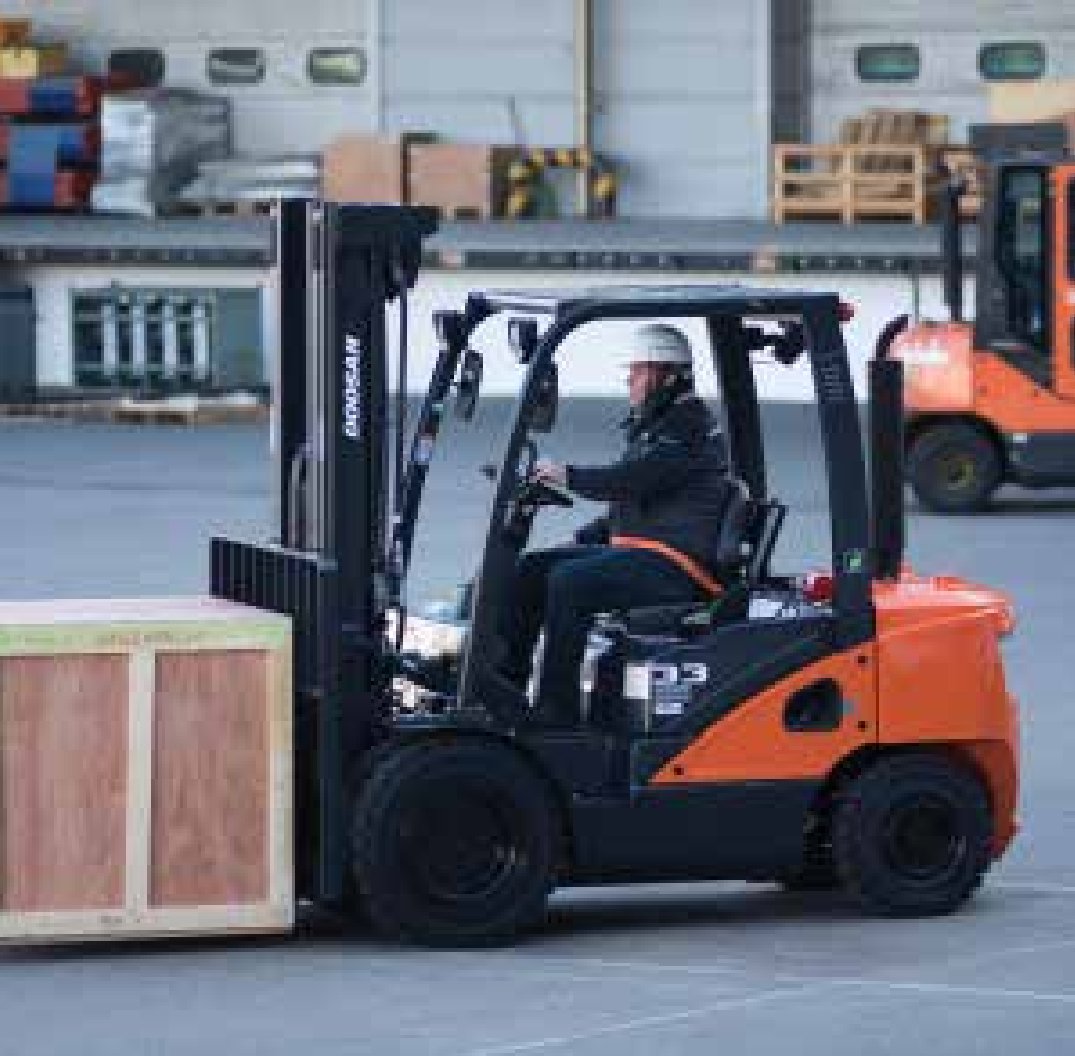

Doosan D50C-7 Specs

Quick-reference specifications for the Doosan D50C-7 forklift, taken from the manufacturer’s spec sheet.

Performance 1 spec

Load Capacity	5,000 kg

Load Center	600 mm
Load Distance: Center of Driveaxle to fork	570 mm
Wheelbase	2,115 mm
Height, Mast lowered	2,380 mm
Free Lift	170 mm
Lift Height	3,050 mm
Height, Mast Extended	4,470 mm
Height of Overhead Guard(Cabin)	2,230 mm
Height of Seat	1,255 mm
Overall Length	4,525 mm
Length to Forkface	3,325 mm
Overall Width	1,455 mm
Fork Dimensions	60x150x1,200 mm
