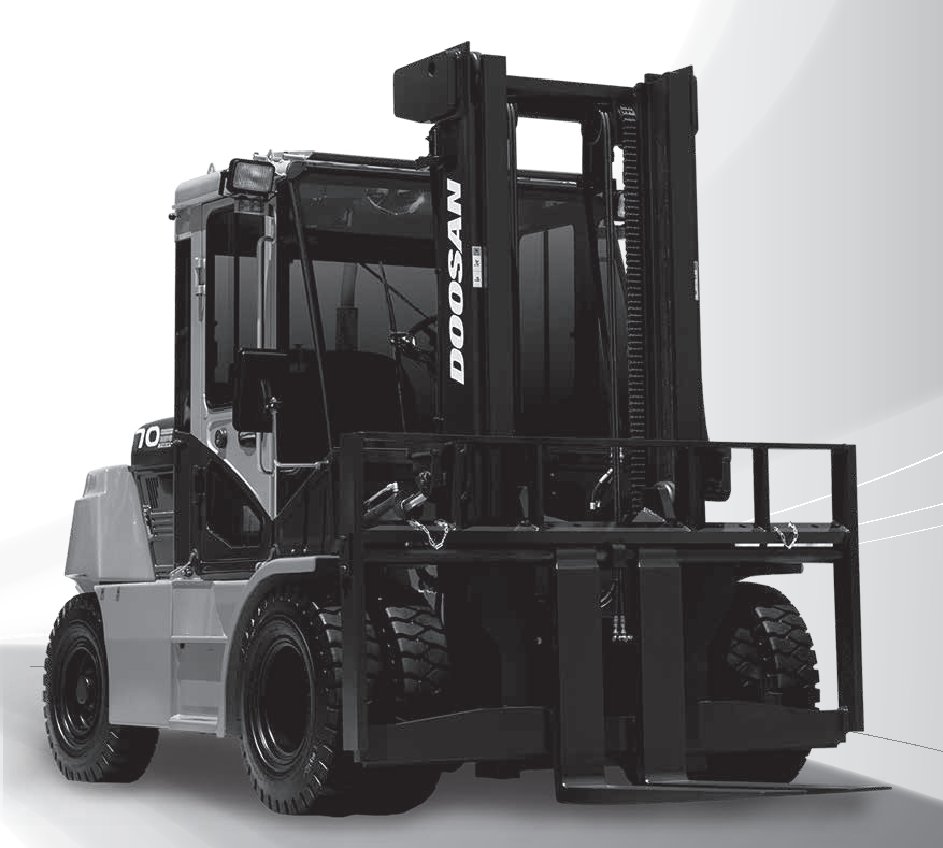

Doosan D60S-7 Specs
Quick-reference specifications for the Doosan D60S-7 forklift, taken from the manufacturer’s spec sheet.
- Gradeability, loaded (@ 1.6km/h)
- 33.1 %
Performance 15 specs
| Drive | diesel |
|---|---|
| Load Capacity Q | 6,000 kg |
| Load Center c | 600 mm |
| Load Distance: Center of Drive axle to fork x | 632 mm |
| Tyres: pneumatic (P), solid (E) | P/E |
| Tilt of Mast/Fork carriage Forward/Backward α/β | 15/10 ° |
| External Turning Radius Wa | 3,380 mm |
| Internal Turning Radius b | 1,279 mm |
| Travel Speed, loaded/unloaded | 23.0/25.0 km/h |
| Lift Speed, loaded/unloaded | 0.4/0.43 m/s |
| Lowering Speed, loaded/unloaded | 0.50/0.45 m/s |
| Drawbar pull, loaded (@ 1.6km/h) | 4,668 N |
| Gradeability, loaded (@ 1.6km/h) | 33.1 % |
| Service Brake | disc |
| Rated Speed | 2,300 min-1 |
Dimensions 18 specs
| Wheelbase y | 2,300 mm |
|---|---|
| Tyre size, Front | 8.25×15-14PR |
| Tyre size, Rear | 8.25×15-14PR |
| Height, Mast lowered h | 2,495 mm |
| Free Lift h | 205 mm |
| Maximum Fork Height h | 3,000 mm |
| Height, Mast Extended h | 4,340 mm |
| Height of Seat h | 1,455 mm |
| Overall Length l | 4,818 mm |
| Length to Forkface l | 3,618 mm |
| Overall Width b1/b | 2,108 mm |
| Fork Dimensions s/e/l | 60x180x1,200 mm |
| Fork carriage ISO 2328, class/type A,B | IV |
| Fork carriage width b | 2,156 mm |
| Ground Clearance, loaded, below mast m | 196 mm |
| Ground Clearance, center of wheelbase m | 225 mm |
| Aisle width for pallets 1,000 x 1,200 crossways Ast | 5,212 mm |
| Aisle width for pallets 800 x 1,200 lengthways Ast | 5,412 mm |
Weight 3 specs
| Service weight | 8,940 kg |
|---|---|
| Axle Loading, loaded, front/rear | 13,285/1,655 kg |
| Axle Loading, unloaded, front/rear | 4,050/4,890 kg |
Power / Engine 6 specs
| Engine Manufacturer/type | Doosan D34 NAP |
|---|---|
| Transmission Type | power shift |
| Engine power according to DIN ISO1585 | 55.0 kW |
| Maximum Torque | 330/1,400 Nm/rpm |
| Number of Cylinders/Displacement | 4/3,409 -/cm3 |
| Battery Voltage/normal capacity | 24/75 V/Ah |
Hydraulics / Fluids 1 spec
| Operating pressure for attachments | 140 bar |
|---|
