Forklift · Doosan

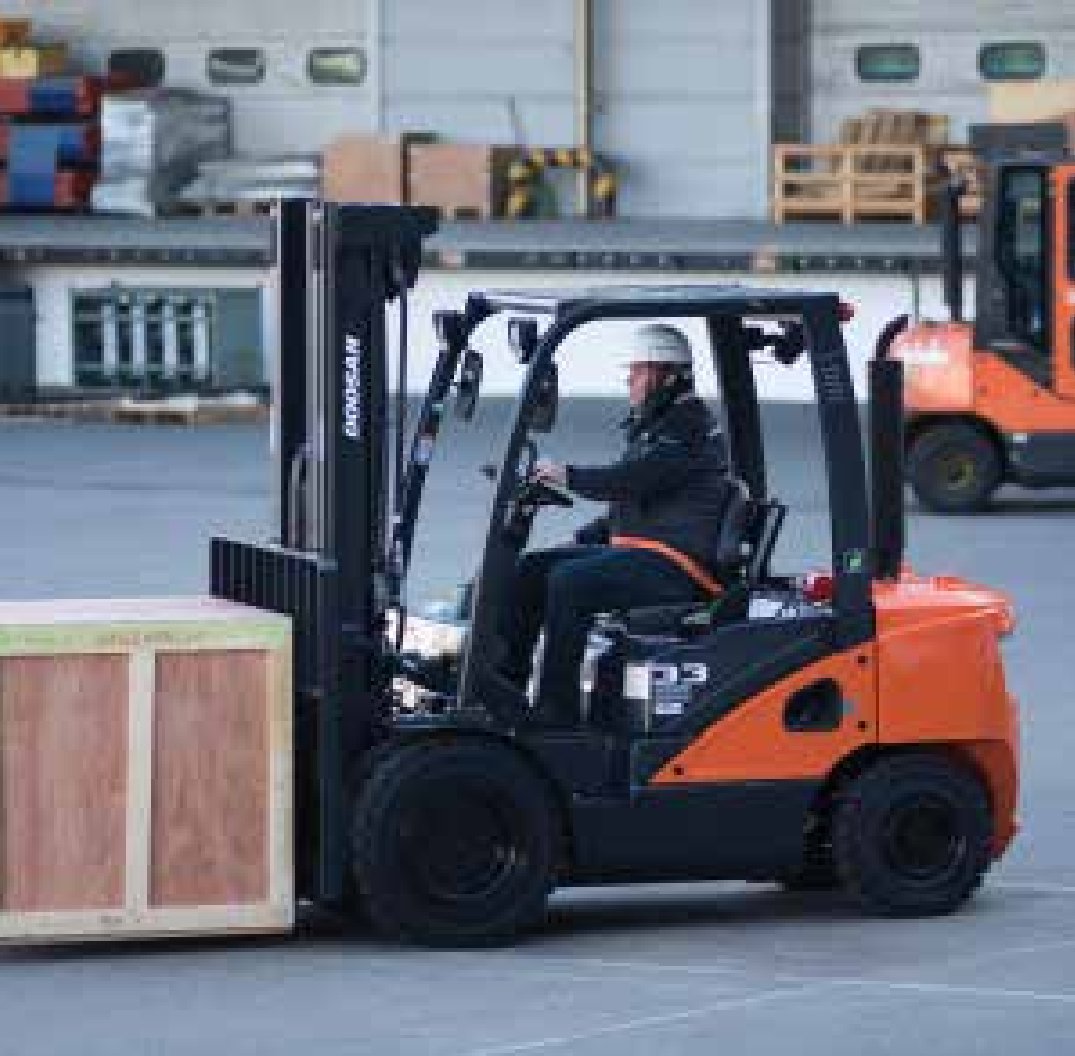

Doosan D70S-7 Specs
Quick-reference specifications for the Doosan D70S-7 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 25,880 lb11,760 kg
- Gradeability (loaded)
- 28%
Performance 6 specs
| Load Capacity (nominal at load center) | 15,400 lb (7 t) |
|---|---|
| Load Center Distance | 24 in (600 mm) |
| Travel Speed (loaded) | 18.1 mph (29.1 km/h) |
| Hoisting Speed (loaded/unloaded) | 1.41 ft/s (0.43 m/s) |
| Gradeability (loaded) | 28% |
| Turning Radius | 11.25 ft (3.43 m) |
Dimensions 10 specs
| Overall Length | 162 in |
|---|---|
| Overall Width | 82.99 in (2,108 mm) |
| Mast Height (lowered) | 104-133 in |
| Mast Height (raised) | 177 in |
| Construction Height (overhead guard) | 99.8 in (2,535 mm) |
| Wheelbase | 96 in |
| Ground Clearance | 8 in |
| Fork Length | 48 in |
| Fork Width | 7 in |
| Fork Thickness | 2.3 in |
Weight 2 specs
| Service Weight | 21,165 lb (9,600 kg) |
|---|---|
| Operating Weight | 25,880 lb (11,760 kg) |
Power / Engine 7 specs
| Engine Model | D34 / BB-4TNE92 |
|---|---|
| Engine Type | Diesel, 4-cylinder |
| Engine Displacement | 208 cu in (3.409 l) |
| Engine Power | 108-110 hp (80.9 kW) |
| Max Torque | 277 lb-ft (375 Nm) |
| Fuel Tank Capacity | 31 gallons (140 l) |
| Number of Cylinders | 4 |
Hydraulics / Fluids 5 specs
| Hydraulic System Pressure | 2,700 psi (210 kg/cm²) |
|---|---|
| Hydraulic Tank Capacity | 19 gallons (72 l) |
| Transmission Type | 3-speed Full Auto Powershift |
| Transmission Speeds | 3 forward / 3 reverse |
| Tire Pressure | 115 psi (8 kg/cm²) |
