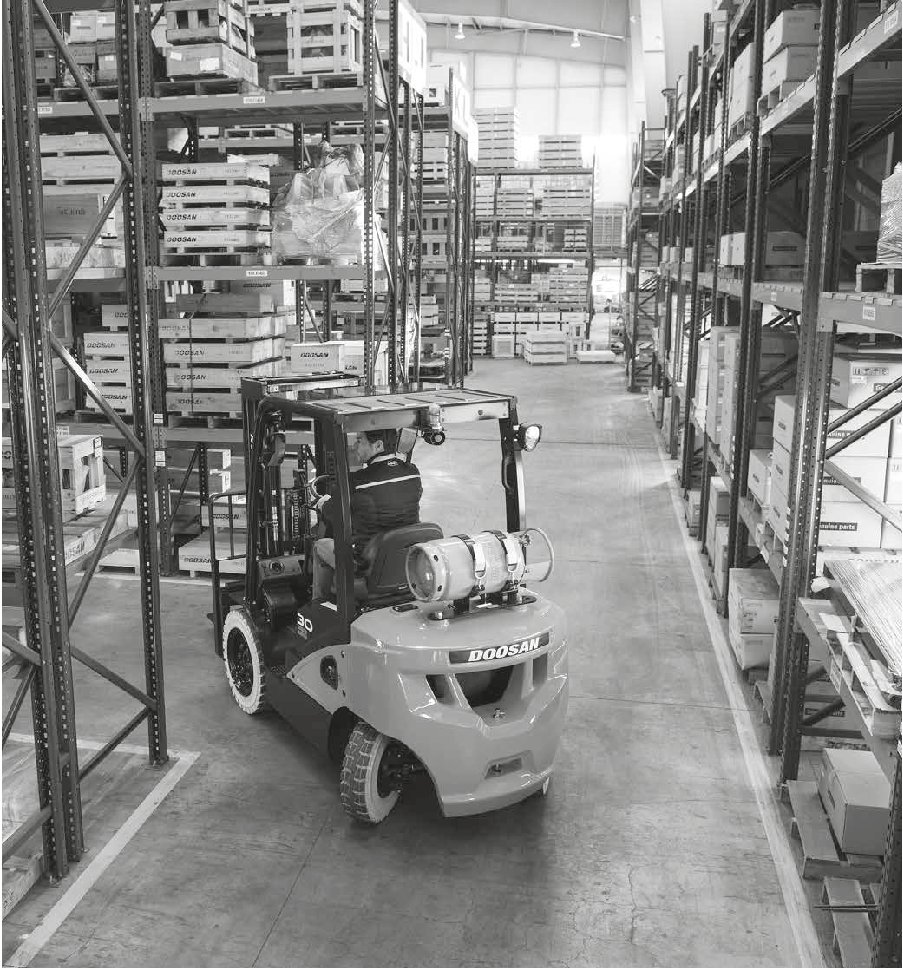

Doosan G25E-7 Specs

Quick-reference specifications for the Doosan G25E-7 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Gradeability, loaded/unloaded (@ 1.6km/h): 29.3/50.3 %

Performance 12 specs

Load capacity	2,500 kg
Tilt of mast/fork carriage forward/backward	6/10°
External turning radius	2,265 mm
Travel speed, loaded/unloaded	19/20 km/h
Lift speed, loaded/unloaded	540/570 mm/s
Lowering speed, loaded/unloaded	510/460 mm/s
Drawbar pull, loaded/unloaded (@ 1.6km/h)	1,809/1,761 kg
Max. Drawbar pull, loaded/unloaded	2,059/1,984 kg
Gradeability, loaded/unloaded (@ 1.6km/h)	29.3/50.3 %
Max. gradeability, loaded/unloaded	33.4/56.7 %
Service brake	foot/hydraulic
Rated speed	2,600 min-1

Dimensions 18 specs

Load centre	500 mm
Load Distance: Center of Drive axle to fork	480 mm
Wheelbase	1,625 mm
Tyre size, front	7.00X15-12
Tyre size, rear	6.50X10-10
Height, Mast lowered	2,175 mm
Free Lift	147 mm
Lift Height	3,230 mm
Height, mast extended	4,490 mm
Height of overhead guard	2,183 mm
Height of seat	1,026 mm
Overall length	3,630 mm
Length to forkface	2,595 mm
Fork dimensions	40X100X1,050 mm
Fork carriage ISO 2328, class/type	II/A
Fork carriage width	1,103 mm
Aisle width for pallets 1.000 X 1.200 crossways	3,945 mm
Aisle width for pallets 800 X 1.200 lengthways	4,145 mm

Weight 3 specs

Service weight	3,965 kg
Axle loading, loaded, front/rear	5,645/820 kg
Axle loading, unloaded, front/rear	1,640/2,325 kg

Power / Engine 5 specs

Engine manufacturer/type	HMC/G424IE
Engine power according to DIN ISO1585	45.4 kW
Torque at 1/min	179 Nm
Number of cylinders/displacement	4/2,359 cm3
Battery voltage/normal capacity	12/50 V/Ah

Hydraulics / Fluids 3 specs

Operating pressure for attachments	156 bar
Oil flow for attachments	60 l/min
Fuel Tank Capacity	51 l
