- Doosan G25N
Forklift · Doosan

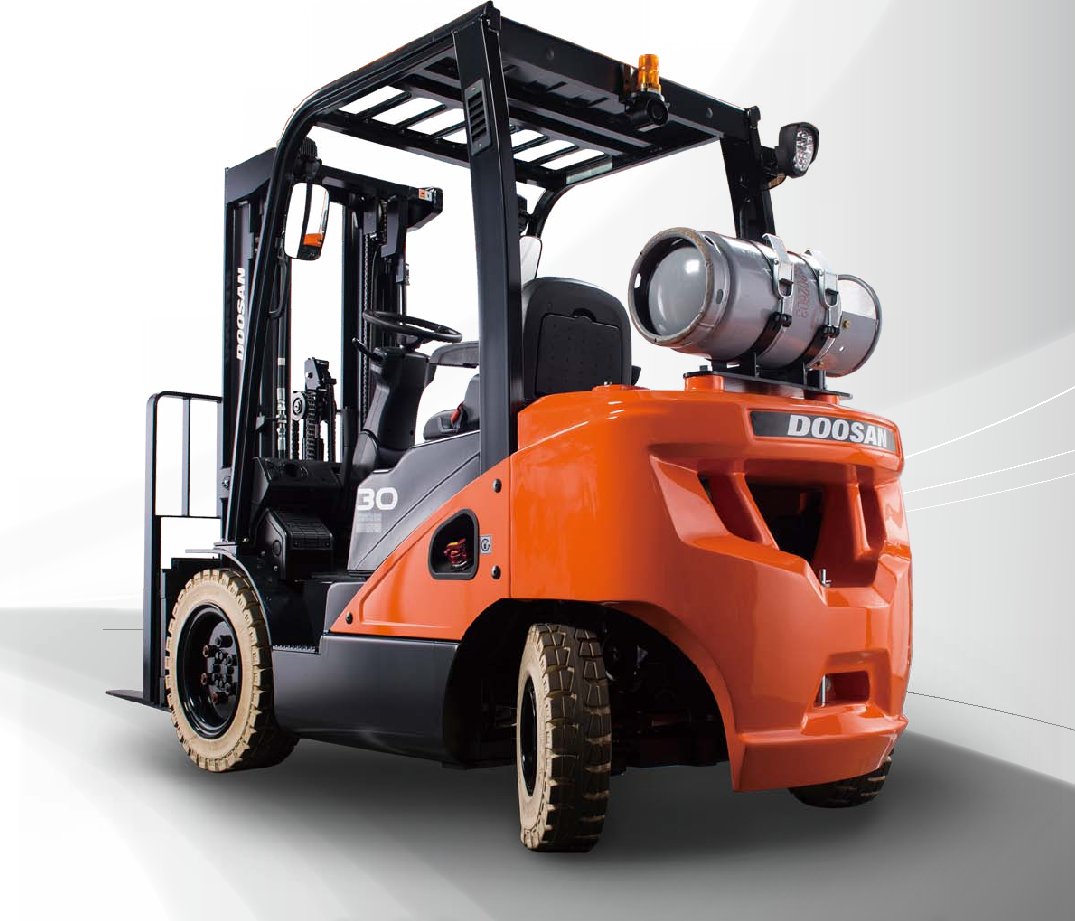

Doosan G25N Specs
Quick-reference specifications for the Doosan G25N forklift, from the manufacturer’s spec sheet and published specifications.
- Max Gradeability
- 29.3%
Performance 8 specs
| Load Capacity | 5,500 lb (2.5 t) |
|---|---|
| Max Travel Speed (with load) | 11.8 mph (19 km/h) |
| Max Travel Speed (without load) | 12.4 mph (20 km/h) |
| Hoisting Speed (with load) | 1.77 ft/s (0.54 m/s) |
| Hoisting Speed (without load) | 1.87 ft/s (0.57 m/s) |
| Lowering Speed (with load) | 1.67 ft/s (0.51 m/s) |
| Max Gradeability | 29.3% |
| Load Center | 19.7 in (500 mm) |
Dimensions 3 specs
| Overall Width | 46.1 in (1,170 mm) |
|---|---|
| Lifting Height (mast raised) | 10.6 ft (3.23 m) |
| Turning Radius | 7.43 ft (2.265 m) |
Weight 2 specs
| Total Weight | 8,841 lb (4.01 t) |
|---|---|
| Ground Clearance | 8.5 in |
Power / Engine 5 specs
| Engine Type | K25 |
|---|---|
| Engine Power | 62.7 hp (46.8 kW) |
| Engine Displacement | 151.8 cu in (2.488 L) |
| Max Torque | 140 ft-lb (190 Nm) |
| Cylinders | 4 |
