Forklift · Doosan

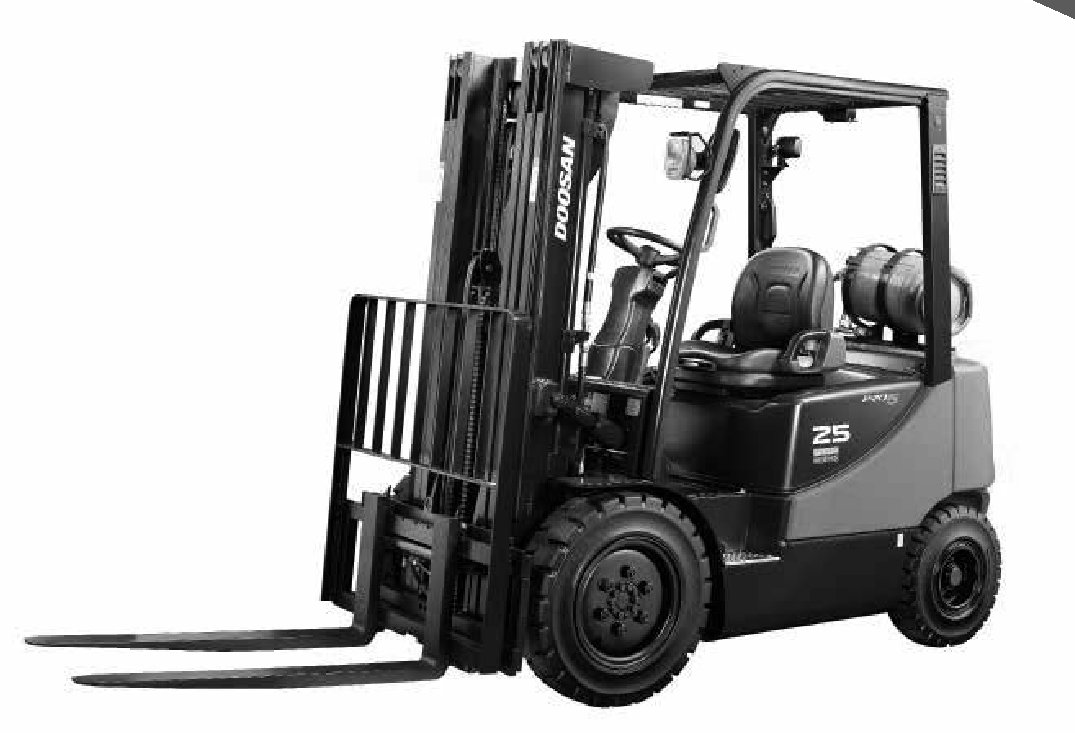

Doosan G25P-5 Specs
Quick-reference specifications for the Doosan G25P-5 forklift, from the manufacturer’s spec sheet and published specifications.
Performance 10 specs
| HP/rpm | 45.5 / 2,450 |
|---|---|
| Rated Load Capacities | D/G15S-5 |
| Tilt Angle – BWD | LC 24 in (LC 500 mm) |
| Load Capacity | 5,000 lb (2,268 kg) |
| Max Speed | 13.3 mph (21.4 kph) |
| Travel Speed with Load (2007-2017) | 11.8-12.4 mph (19-20 km/h) |
| Travel Speed with Load (2017-2021) | 13.0 mph (21 km/h) |
| Hoisting Speed with Load (2007-2017) | 0.51 m/s |
| Hoisting Speed with Load (2017-2021) | 0.56 m/s |
| Turning Radius | 7.44 ft (2.27 m) |
Dimensions 4 specs
| Overall Width | 3.85 ft (1.17 m) |
|---|---|
| Height to Top of Overhead Guard | 7.16 ft (2.18 m) |
| Length to Fork Face | 8.45 ft (2.58 m) |
| Lifting Height (2007-2017) | 14.3 ft (4.35 m) |
Weight 2 specs
| Service Weight (2007-2017) | 8,679 lb (3.94 t) |
|---|---|
| Tire Type | Pneumatic (L4) |
Power / Engine 7 specs
| Engine Type (2007-2017) | G424F |
|---|---|
| Engine Type (2017-2021) | G424P (E) |
| Engine Power (2007-2017) | 64.3 hp (48 kW) |
| Engine Power (2017-2021) | 65.6 hp (48.9 kW) |
| Displacement (2017-2021) | 2.351 L |
| Max Torque (2017-2021) | 183.2 Nm |
| Number of Cylinders | 4 |
