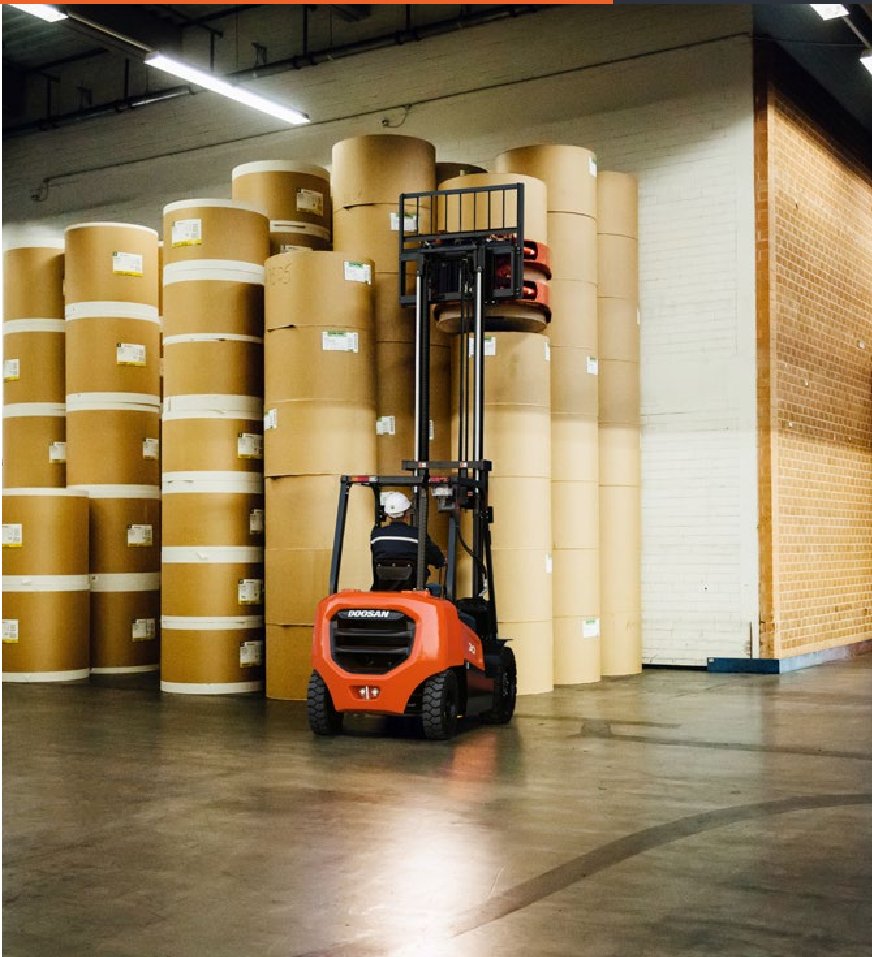

Doosan G30NXP Specs

Quick-reference specifications for the Doosan G30NXP forklift, taken from the manufacturer’s spec sheet.

Performance 3 specs

Load distance, centre of drive axle to fork	472 mm
Wheelbase	1,700 mm
Height, mast lowered	2,045 mm
Free Lift	150 mm
Lift (with STD 2-stage mast)	3,000 mm
Height, mast extended	4,247 mm
Height of overhead guard	2,160 mm
Height of seat	1,185 mm
Overall length	3,715 mm
Length to fork face	2,665 mm
Overall width	1,290 mm
