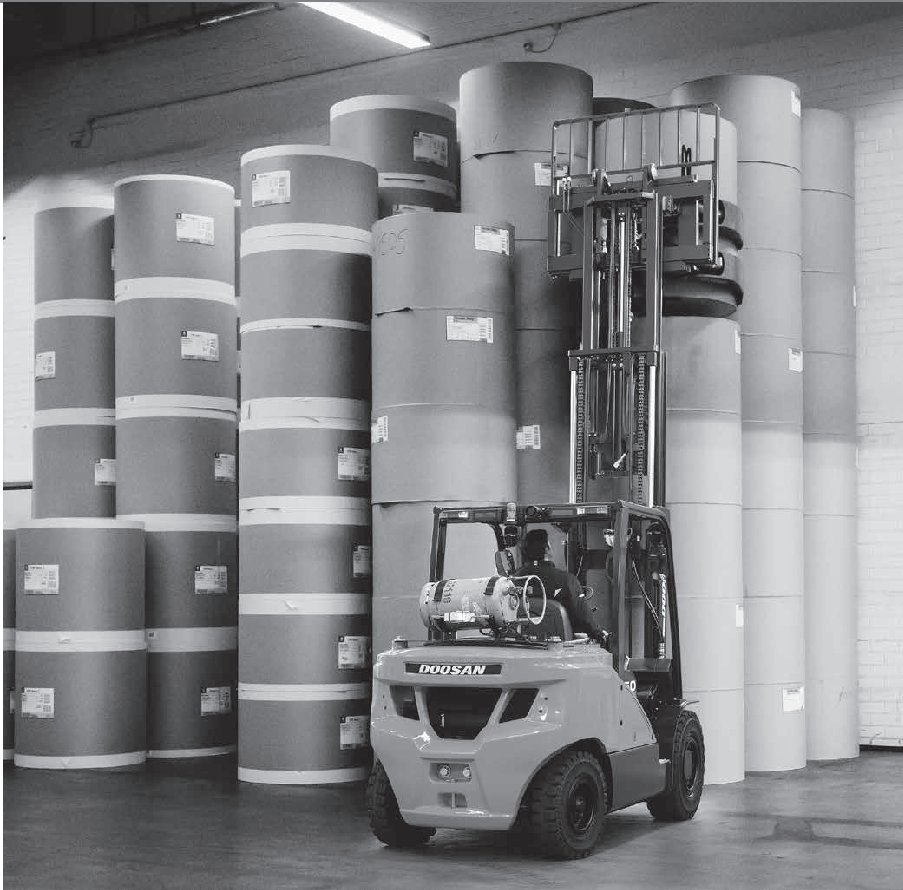

Doosan G50C-7 Specs

Quick-reference specifications for the Doosan G50C-7 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Gradeability, Loaded/unloaded (@ 1.6km/h): 25.5/45.5 %

Performance 16 specs

Drive	LPG
Load Capacity	5,000 kg
Load Center	600 mm
Load Distance: Center of Driveaxle to fork	570 mm
Tyres: pneumatic (P), cushion (C)	P
Tilt of Mast/Fork carriage Forward/Backward	8/10°
External Turning Radius	2,925 mm
Travel Speed, Loaded/unloaded	19.5/20.5 km/h
Lift Speed, Loaded/unloaded	0.49/0.54 m/s
Lowering Speed, Loaded/unloaded	0.49/0.45 m/s
Drawbar pull, Loaded (@ 1.6km/h)	29,220 N
Max. Drawbar pull, Loaded	34,060 N
Gradeability, Loaded/unloaded (@ 1.6km/h)	25.5/45.5 %
Max. Gradeability, Loaded/unloaded	30.1/54.2 %
Service Brake	Foot/Hyd
Rated Speed	2,500 min-1

Dimensions 17 specs

Wheelbase	2,115 mm
Tyre size, Front	300×15-18PR/7.50×16-12PR
Tyre size, Rear	7.00×12-14PR
Height, Mast lowered	2,380 mm
Free Lift	170 mm
Lift height	3,050 mm
Height, Mast Extended	4,470 mm
Height of Overhead Guard(Cabin)	2,230 mm
Height of Seat	1,255 mm
Overall Length	4,525 mm
Length to Forkface	3,325 mm
Overall Width	1,455 mm
Fork Dimensions	60x150x1,200 mm
Fork carriage ISO 2328, class/type A,B	IV
Fork carriage width	1,330 mm
Aisle width for pallets 1,000 x 1,200 crossways	4,695 mm
Aisle width for pallets 800 x 1,200 crossways	4,895 mm

Weight 3 specs

Service weight	7,050 kg
Axle Loading. loaded. front/rear	10,680/1,370 kg
Axle Loading, unloaded. front/rear	2,890/4,160 kg

Power / Engine 4 specs

Engine Manufacturer/type	PSI (4.3 L)
Engine power according to DIN ISO1585	70 kW
Number of Cylinders/Displacement	4/4,294 cc
Battery Voltage/nominal capacity	12/75 V/Ah

Hydraulics / Fluids 2 specs

Operating pressure for attachments	140 bar
Oil volume for attachments	80 l/min
