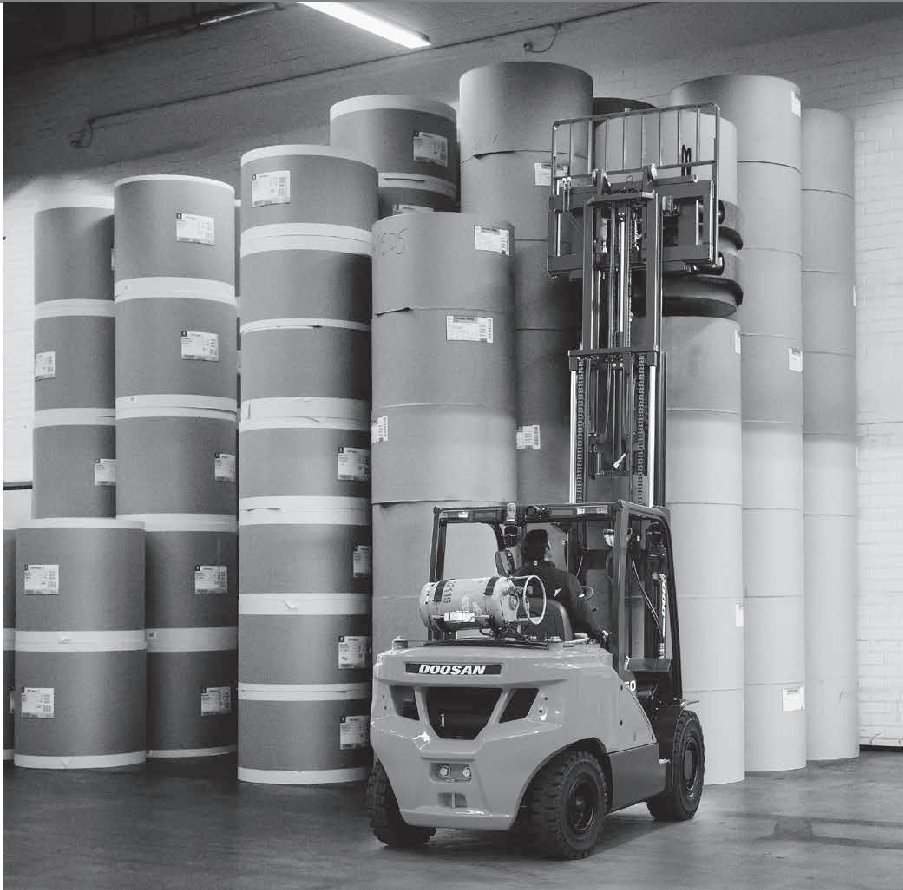

Doosan G45S-7 Specs

Quick-reference specifications for the Doosan G45S-7 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Gradeability, Loaded/unloaded (@ 1.6km/h): 28.2/50.1 %

Performance 15 specs

Drive	LPG
Load Capacity	4,500 kg
Load Center	600 mm
Tyres: pneumatic (P), cushion (C)	P
Tilt of Mast/Fork carriage Forward/Backward	8/10°
External Turning Radius	2,877 mm
Travel Speed, Loaded/unloaded	19.5/20.5 km/h
Lift Speed, Loaded/unloaded	0.50/0.54 m/s
Lowering Speed, Loaded/unloaded	0.48/0.45 m/s
Drawbar pull, Loaded (@ 1.6km/h)	29,390 N
Max. Drawbar pull, Loaded	34,220 N
Gradeability, Loaded/unloaded (@ 1.6km/h)	28.2/50.1 %
Max. Gradeability, Loaded/unloaded	33.1/60.1 %
Service Brake	Foot/Hyd
Rated Speed	2,500 min-1

Dimensions 18 specs

Load Distance: Center of Driveaxle to fork	560 mm
Wheelbase	2,115 mm
Tyre size, Front	300×15-18PR/7.50×16-12PR
Tyre size, Rear	7.00×12-12PR
Height, Mast lowered	2,230 mm
Free Lift	160 mm
Lift height	3,000 mm
Height, Mast Extended	4,420 mm
Height of Overhead Guard(Cabin)	2,230 mm
Height of Seat	1,255 mm
Overall Length	4,480 mm
Length to Forkface	3,280 mm
Overall Width	1,455 mm
Fork Dimensions	50x150x1,200 mm
Fork carriage ISO 2328, class/type A,B	IV
Fork carriage width	1,330 mm
Aisle width for pallets 1,000 x 1,200 crossways	4,637 mm
Aisle width for pallets 800 x 1,200 crossways	4,837 mm

Weight 3 specs

Service weight	6,550 kg
Axle Loading, loaded, front/rear	9,800/1,250 kg
Axle Loading, unloaded, front/rear	2,810/3,740 kg

Power / Engine 4 specs

Engine Manufacturer/type	PSI (4.3 L)
Engine power according to DIN ISO1585	70 kW
Number of Cylinders/Displacement	4/4,294 cc -/cm3
Battery Voltage/normal capacity	12/75 V/Ah

Hydraulics / Fluids 2 specs

Operating pressure for attachments	140 bar
Oil volume for attachments	80 l/min
