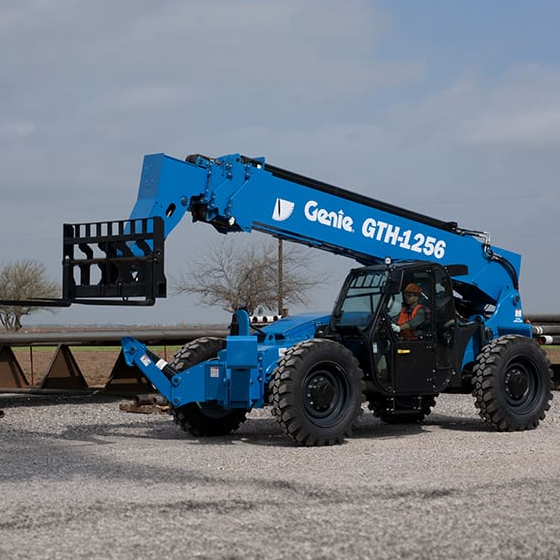

Genie GTH-1256 Specs
Quick-reference specifications for the Genie GTH-1256 telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 12,000 lb5,443 kg
- Maximum lift height
- 56 ft 3 in17.15 m
- Maximum forward reach
- 42 ft12.80 m
- Weight
- 34,500 lb15,649 kg
Performance 9 specs
| Maximum forward reach | 42 ft (12.80 m) |
|---|---|
| Reach at maximum height | 7 ft 11 in (2.41 m) |
| Maximum lift capacity | 12,000 lb (5,443 kg) |
| Lift capacity at maximum height | 6,000 lb (2,721 kg) |
| Lift capacity at maximum reach | 3,500 lb (1,588 kg) |
| Raise/Lower boom | 20/17 sec |
| Drive speed | 17 mph (121 hp PS) (27 km/h (121 hp PS)) |
| Frame leveling (side to side) | 10° |
| Tires, standard size | Genie Enduro A/T 400/75-28 |
Dimensions 8 specs
| Maximum lift height | 56 ft 3 in (17.15 m) |
|---|---|
| Height, stowed | 8 ft 8 in (2.63 m) |
| Length, stowed (without forks) | 22 ft 8 in (6.91 m) |
| Width | 8 ft 6 in (2.59 m) |
| Wheelbase | 11 ft 6 in (3.51 m) |
| Ground clearance, center | 1 ft 3 in (0.38 m) |
| Ground clearance, axle | 1 ft 6 in (0.46 m) |
| Fork cross section | 2.4 × 4 in (61 × 99 mm) |
Weight 1 spec
| Weight | 34,500 lb (15,649 kg) |
|---|
Power / Engine 4 specs
| Power source | Diesel |
|---|---|
| Electrical system voltage | 12 V |
| Alternator | Deutz TCD 3.6 – 95 amp |
| Battery | 1000 CCA 0°F (-18°C) |
Hydraulics / Fluids 4 specs
| Auxiliary hydraulic pressure | 3,200 psi (220.6 bar) |
|---|---|
| Hydraulic tank capacity | 27 gal (102.2 L) |
| Hydraulic system capacity (w/tank) | 52 gal (196.8 L) |
| Fuel tank capacity | 30 gal (113.6 L) |
