Telehandler · Genie

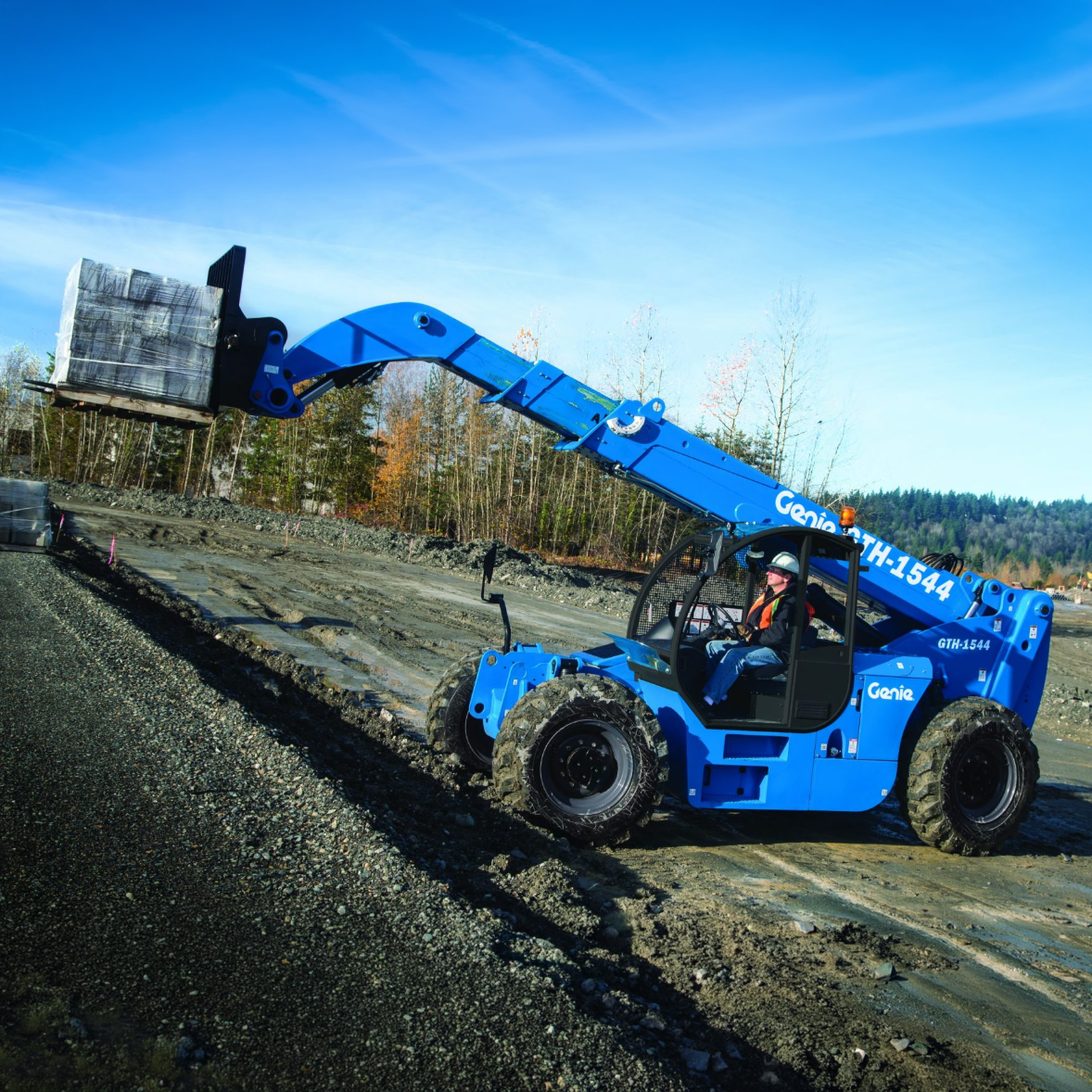

Genie GTH-1544 Specs
Quick-reference specifications for the Genie GTH-1544 telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 15,000 lb6,804 kg
- Maximum lift height
- 44 ft13.41 m
- Maximum forward reach
- 27 ft 3 in8.31 m
- Weight
- 33,686 lb15,280 kg
Performance 9 specs
| Maximum forward reach | 27 ft 3 in (8.31 m) |
|---|---|
| Reach at maximum height | 10 in (0.25 m) |
| Maximum lift capacity | 15,000 lb (6,804 kg) |
| Lift capacity at maximum height | 10,000 lb (4,536 kg) |
| Lift capacity at maximum reach | 3,500 lb (1,587 kg) |
| Raise/Lower boom | 19/15 sec |
| Drive speed | 18 mph (29 km/h) |
| Frame leveling (side to side) | 7° |
| Tires, standard size | 17.5 × 25 in 20PR (0.45 × 0.65 m 20PR) |
Dimensions 8 specs
| Maximum lift height | 44 ft (13.41 m) |
|---|---|
| Height, stowed | 8 ft 7 in (2.61 m) |
| Length, stowed (without forks) | 20 ft 4 in (6.20 m) |
| Width | 7 ft 11 in (2.42 m) |
| Wheelbase | 11 ft 6 in (3.50 m) |
| Ground clearance, center | 1 ft 3 in (0.38 m) |
| Ground clearance, axle | 1 ft 3 in (0.38 m) |
| Fork cross section | 2.4 × 5.9 in (60 × 150 mm) |
Weight 1 spec
| Weight | 33,686 lb (15,280 kg) |
|---|
Power / Engine 4 specs
| Power source | Diesel |
|---|---|
| Electrical system voltage | 12 V |
| Alternator | Deutz TCD3.6 – 150 amp |
| Battery | 1000 CCA 0°F (-18°C) |
Hydraulics / Fluids 4 specs
| Auxiliary hydraulic pressure | 3,335 psi (230 bar) |
|---|---|
| Hydraulic tank capacity | 48 gal (182 L) |
| Hydraulic system capacity (w/tank) | 77 gal (290 L) |
| Fuel tank capacity | 47 gal (180 L) |
