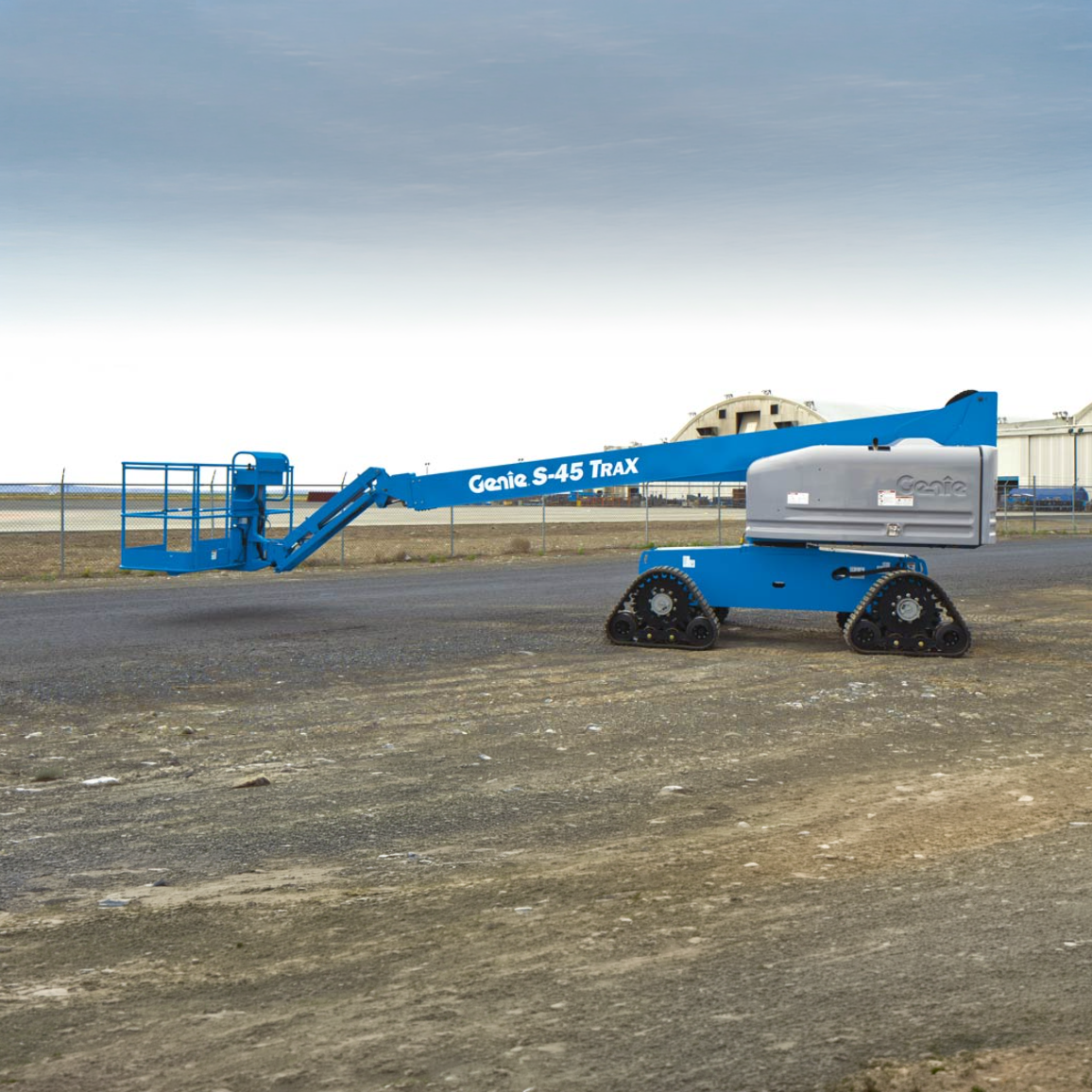

Genie S-45TRAX Specs

Quick-reference specifications for the Genie S-45TRAX boom lift, taken from the manufacturer’s spec sheet.

Performance 20 specs

Working height max.	15.56 m
Working height max.(TraX)	15.61 m
Horizontal reach max.	11.02 m
Below ground reach	1.27 m
Lift capacity max. – unrestricted	300 kg
Lift capacity max. – restricted	454 kg
Platform rotation	160°
Vertical jib rotation (up/down)	133°
Turntable rotation	360°
Drive speed – stowed (tires)	6.40 km/h
Drive speed – stowed (TraX)	3.28 km/h
Drive speed – raised (tires)	1.1 km/h
Drive speed – raised (TraX)	1.1 km/h
Gradeability – stowed	45 %
Turning radius – inside/outside (tires)	2.08 m / 5.23 m
Turning radius – inside/outside (TraX)	2.08 m / 5.23 m
Tires	315 / 55D20
Sound Pressure level (ground workstation)	90 dBA
Sound Pressure level (platform workstation)	77 dBA
Vibrations	< 2.5 m/s²

Platform height max.	13.56 m
Platform height max.(TraX)	13.61 m
Height – stowed (tires)	2.51 m
Height – stowed (TraX)	2.59 m
Length – stowed (tires)	9.47 m
Length – stowed (TraX)	9.47 m
Length – storage/transport (jib tucked under)	7.37 m
Width (tires)	2.49 m
Width (TraX)	2.48 m
Wheelbase	2.46 m
Ground clearance – center (tires)	0.32 m
Ground clearance – center (TraX)	0.48 m
Height under counterweight	1.02 m
Jib length	1.52 m
Turntable tailswing	0.97 m

Weight (tires)	7,167 kg
Weight (TraX)	8,623 kg
Tire contact pressure	634 kPa
Track contact pressure	172.4 kPa
Occupied floor pressure (tires)	8.95 kPa
Occupied floor pressure (TraX)	10.7 kPa

Fuel tank capacity	132 L
