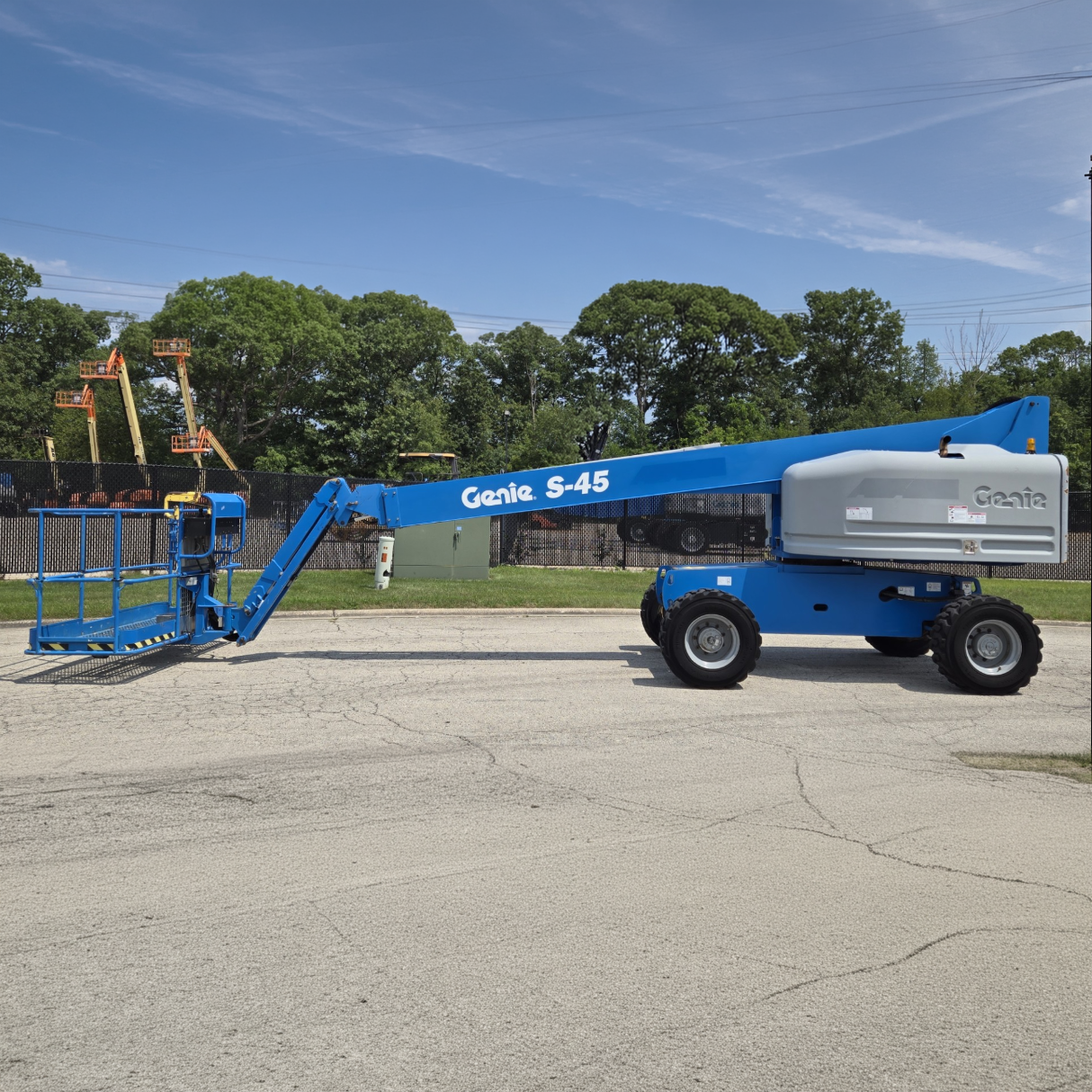

Genie S-45 Specs
Quick-reference specifications for the Genie S-45 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb227 kg
- Platform height maximum
- 45 ft13.72 m
- Working height maximum
- 51 ft15.72 m
- Gradeability – 2WD – stowed
- 30%
Performance 15 specs
| Working height maximum | 51 ft (15.72 m) |
|---|---|
| Horizontal reach maximum | 36 ft 8 in (11.18 m) |
| Below ground reach | 4 ft 11 in (1.5 m) |
| Lift capacity | 500 lb (227 kg) |
| Platform rotation | 160° |
| Vertical jib rotation | 135° |
| Turntable rotation | 360° continuous |
| Drive speed – stowed | 4.8 mph (7.7 km/h) |
| Drive speed – raised or extended | 0.68 mph (1.1 km/h) |
| Gradeability – 2WD – stowed | 30% |
| Gradeability – 4WD – stowed | 40% |
| Turning radius – inside | 6 ft 8 in (2.0 m) |
| Turning radius – outside | 15 ft 8 in (4.78 m) |
| Tires – RT lug | 12-16.5 NHS |
| Tires – ribbed (2WD front) | 12.5 L – 16 SL |
Dimensions 11 specs
| Platform height maximum | 45 ft (13.72 m) |
|---|---|
| Platform length – 8 ft model | 3 ft (.91 m) |
| Platform length – 6 ft model | 2 ft 6 in (.76 m) |
| Platform width – 8 ft model | 8 ft (2.44 m) |
| Platform width – 6 ft model | 6 ft (1.83 m) |
| Height – stowed | 8 ft 2 in (2.49 m) |
| Length – stowed | 27 ft 10 in (8.48 m) |
| Width (with standard tires) | 7 ft 6 in (2.30 m) |
| Wheelbase | 7 ft 3 in (2.20 m) |
| Ground clearance – center | 1 ft .5 in (.32 m) |
| Turntable tailswing | 2 ft 10 in (.86 m) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 45 gal (170 L) |
|---|---|
| Fuel tank capacity | 20 gal (76 L) |
