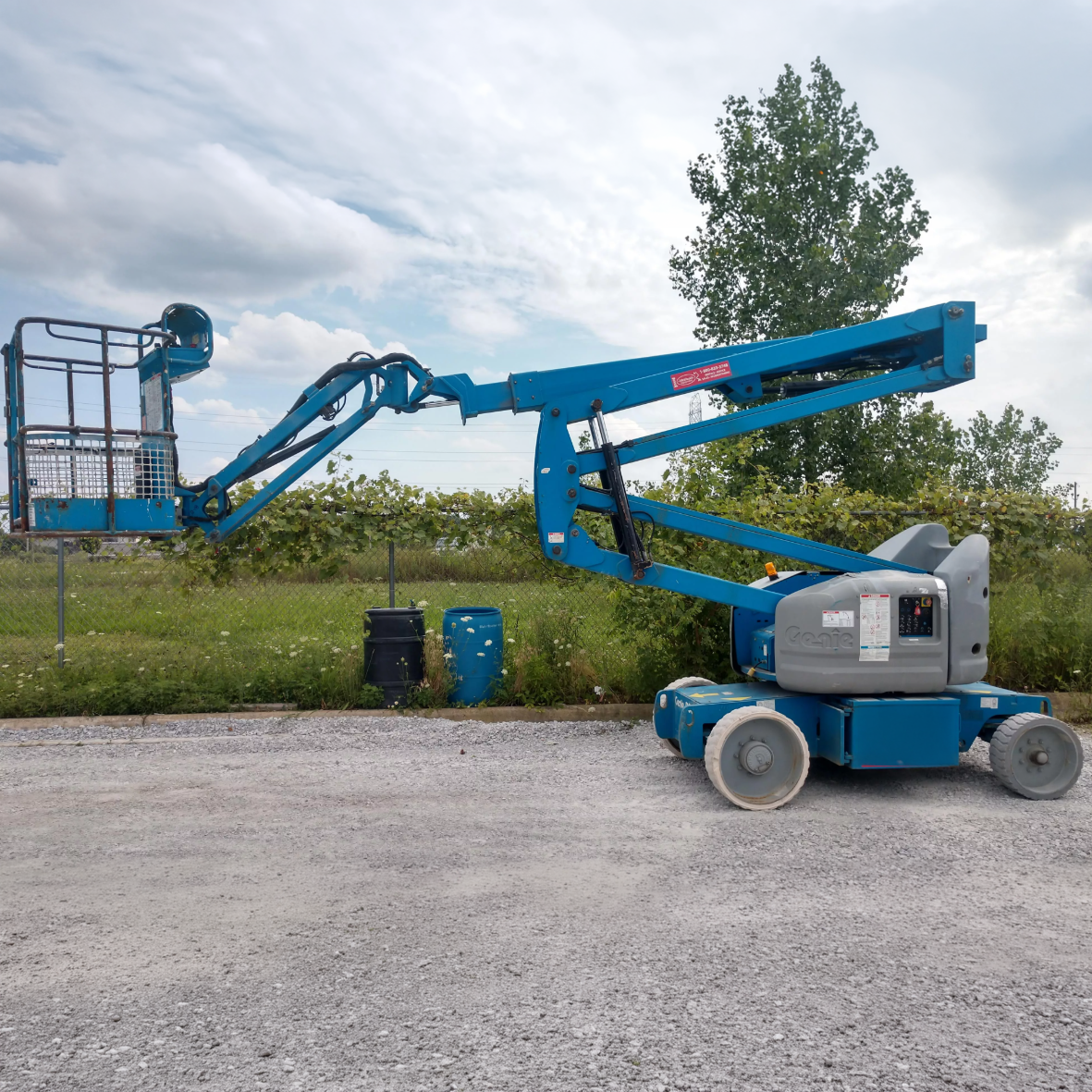

Genie Z-40/23N Specs
Quick-reference specifications for the Genie Z-40/23N boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 500 lb227 kg
- Platform height max.
- 40 ft 5 in12.32 m
- Working height max.
- 46 ft 5 in14.32 m
- Gradeability – stowed
- 30 %
Performance 13 specs
| Working height max. | 46 ft 5 in (14.32 m) |
|---|---|
| Horizontal reach max. | 22 ft 8 in (6.91 m) |
| Lift capacity max. – unrestricted | 500 lb (227 kg) |
| Platform rotation | 180° |
| Vertical jib rotation | 128° |
| Turntable rotation | 355° |
| Drive speed – stowed | 4.5 mph (7.2 km/h) |
| Drive speed – raised | 0.68 mph (1.1 km/h) |
| Gradeability – stowed | 30 % |
| Turning radius – inside/outside | 2 ft 11 in/ 10 ft 6 in (0.87 m / 3.20 m) |
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | 8 ft 2 in/s² (2.5 m/s²) |
Dimensions 11 specs
| Platform height max. | 40 ft 5 in (12.32 m) |
|---|---|
| Up and over clearance max. | 21 ft 3 in (6.48 m) |
| Platform length | 2 ft 6 in (0.76 m) |
| Platform width | 4 ft 8 in (1.42 m) |
| Height – stowed (tires) | 6 ft 6 in (1.98 m) |
| Length – stowed (tires) | 21 ft 5 in (6.53 m) |
| Width | 4 ft 11 in (1.50 m) |
| Wheelbase | 6 ft 5 in (1.96 m) |
| Ground clearance – center | 9.5 in (0.24 m) |
| Jib length | 4 ft (1.22 m) |
| Turntable tailswing | 5 in (0.13 m) |
Weight 3 specs
| Weight (tires) | 15,230 lb (6,908 kg) |
|---|---|
| Tire contact pressure | 200 psi (1379 kPa) |
| Occupied floor pressure (tires) | 372 psf (17.8 kPa) |
Power / Engine 1 spec
| Auxiliary power unit | 24 V DC |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic tank capacity | 8 gal (30.3 L) |
|---|
