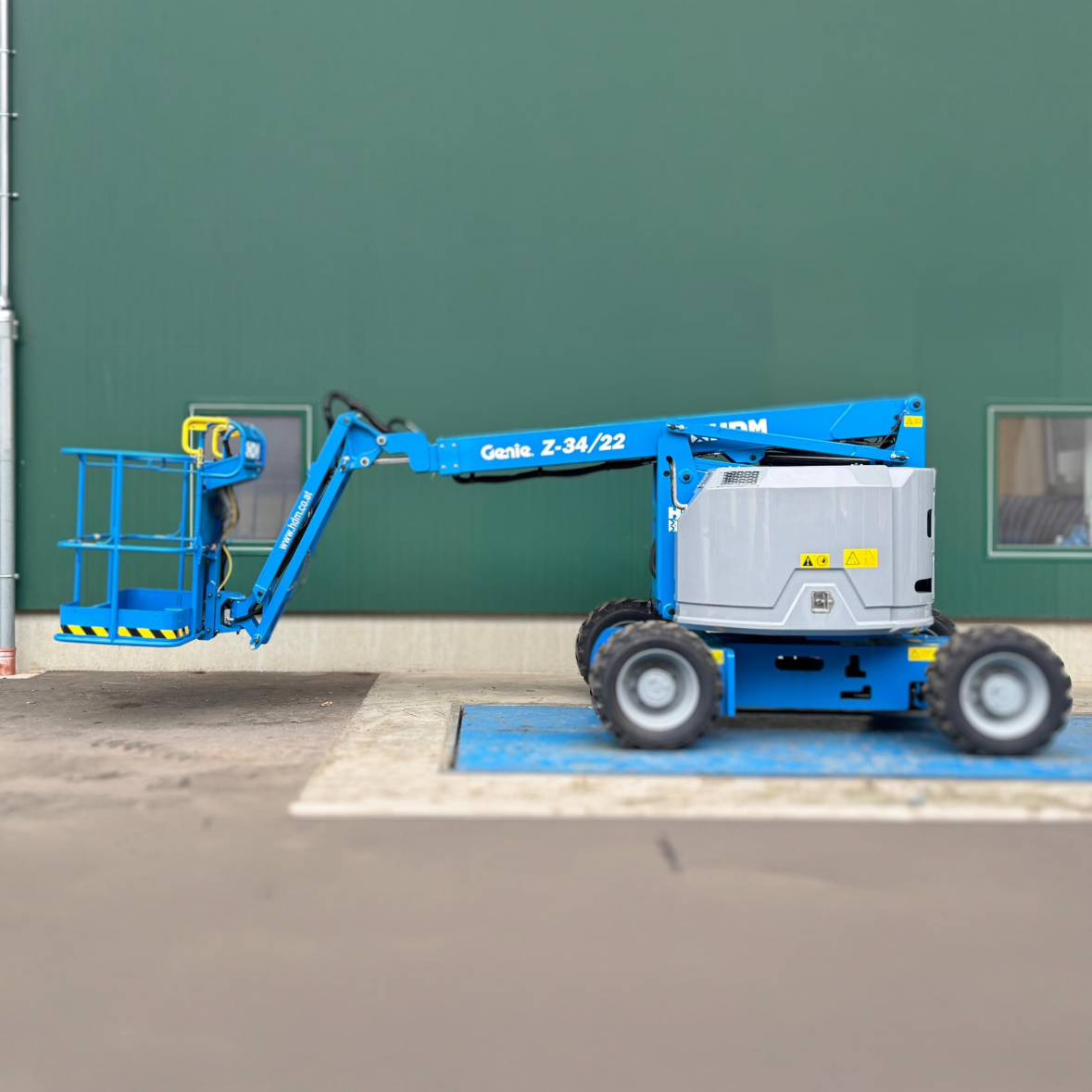

Genie Z-34/22 IC Specs
Quick-reference specifications for the Genie Z-34/22 IC boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 500 lb227 kg
- Platform height max.
- 34 ft 7 in10.54 m
- Working height max.
- 40 ft 7 in12.54 m
- Weight
- 11,010 lb4,994 kg
Performance 15 specs
| Working height max. | 40 ft 7 in (12.54 m) |
|---|---|
| Horizontal reach max. | 22 ft 3 in (6.78 m) |
| Lift capacity max. – unrestricted | 500 lb (227 kg) |
| Platform rotation | 180° |
| Vertical jib rotation | 139° |
| Turntable rotation | 355° |
| Drive speed – stowed | 3.0 mph (4.8 km/h) |
| Drive speed – raised | 0.68 mph (1.1 km/h) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside | 5 ft 11 in / 13 ft 6 in (1.80 m / 4.11 m) |
| Tires (solid, non-marking) | 10 × 16.5 in (25 × 42 cm) |
| Sound Pressure level (ground workstation) | 81 dBA |
| Sound Pressure level (platform workstation) | 80 dBA |
| Vibrations | 8 ft 2 in/s² (2.5 m/s²) |
| Platform level cutout | 2.2 kW AC Generator, 220 V/50Hz |
Dimensions 13 specs
| Platform height max. | 34 ft 7 in (10.54 m) |
|---|---|
| Up and over clearance max. | 15 ft 1 in (4.6 m) |
| Platform length | 2 ft 6 in (0.76 m) |
| Platform width | 4 ft 8 in (1.42 m) |
| Height – stowed | 6 ft 9 in (2.06 m) |
| Length – stowed | 18 ft 7 in (5.66 m) |
| Storage height | 7 ft 6 in (2.29 m) |
| Storage length | 13 ft 6 in (4.11 m) |
| Width | 6 ft 1 in (1.85 m) |
| Wheelbase | 6 ft 2 in (1.88 m) |
| Ground clearance – center | 6.5 in (0.17 m) |
| Jib length | 4 ft (1.22 m) |
| Turntable tailswing | 0 in (0 cm) |
Weight 3 specs
| Weight | 11,010 lb (4,994 kg) |
|---|---|
| Tire contact pressure | 45 psi (310 kPa) |
| Occupied floor pressure (tires) | 221 psf (10.58 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 19 gal (71.9 L) |
|---|---|
| Fuel tank capacity | 9 gal (34 L) |
