Telehandler · Gradall

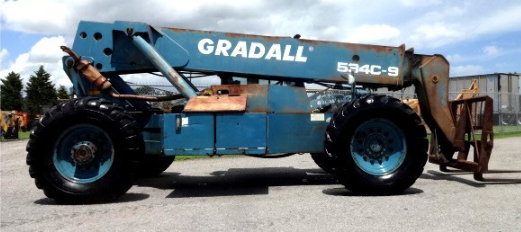

Gradall 534C-9 Specs

Quick-reference specifications for the Gradall 534C-9 telehandler, compiled from published specifications.

Lift Capacity: 9,000 lb4,082 kg
Maximum Lift Height: 40 ft12.2 m
Operating Weight (GVW): 22,650 lb10,270 kg
Gradeability: 45%

Performance 7 specs

Lift Capacity	9,000 lb (4,082 kg)
Maximum Lift Height	40 ft (12.2 m)
Maximum Reach	24 ft (7.3 m)
Horsepower	100 hp (75 kW)
Travel Speed	18 mph (29 km/h)
Gradeability	45%
Frame Leveling	8 degrees

Dimensions 3 specs

Transport Length	280 in (7.1 m)
Transport Width	98 in (2.5 m)
Transport Height	98 in (2.5 m)

Weight 1 spec

Operating Weight (GVW)	22,650 lb (10,270 kg)

Power / Engine 2 specs

Engine Type	Cummins 4-cylinder diesel
Horsepower	100 hp

Hydraulics / Fluids 1 spec

Drive	4WD
