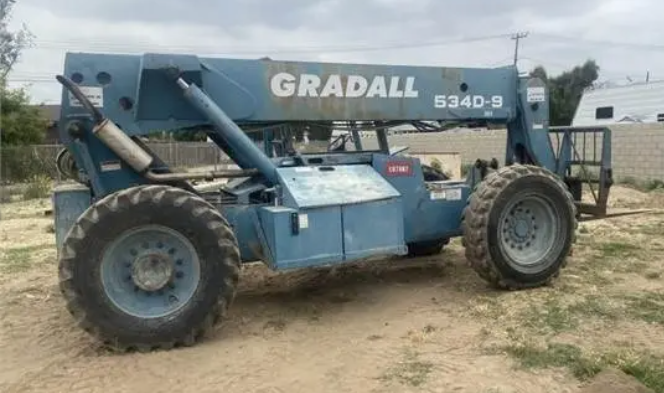

Gradall 534D-9 Specs

Quick-reference specifications for the Gradall 534D-9 telehandler, compiled from published specifications.

Rated Capacity (at 24 in load center): 9,000 lb4,082 kg
Maximum Lift Height: 45 ft13.7 m
Operating Weight (with 48 in carriage and forks): 22,900 lb

Performance 10 specs

Rated Capacity (at 24 in load center)	9,000 lb (4,082 kg)
Maximum Lift Height	45 ft (13.7 m)
Frame Leveling	8 degrees
Lift Speed – Up (boom retracted)	11.4 sec
Lift Speed – Down (boom retracted)	9 sec
Boom Extend Speed	15 sec
Boom Retract Speed	13 sec
Travel Speed Forward 2WD	0-18 mph (29 kmph)
Travel Speed Forward 4WD	0-6 mph (9.7 kmph)
Drawbar Pull (loaded)	20,000 lb (9,072 kg)

Dimensions 5 specs

Length (less forks)	237 in (6.02 m)
Max Reach from Front Tires (24 in load center)	31.5 ft (9.60 m)
Standard Operating Length	19 ft 9 in
Standard Operating Width	8 ft 1 in
Standard Operating Height	7 ft 8 in

Weight 1 spec

Operating Weight (with 48 in carriage and forks)	22,900 lb

Power / Engine 6 specs

Engine Make and Model	John Deere 4045TF275 Turbocharged
Engine Type	4 Cylinder Diesel
Displacement	276 cu in (4.5 L)
Rated Speed	2,400 rpm
Fuel Type	No. 2 Diesel
Fuel Tank Capacity	38 gal (144 L)

Hydraulics / Fluids 1 spec

Hydraulic System Capacity	40 gal (151.4 L)
