Telehandler · Gradall

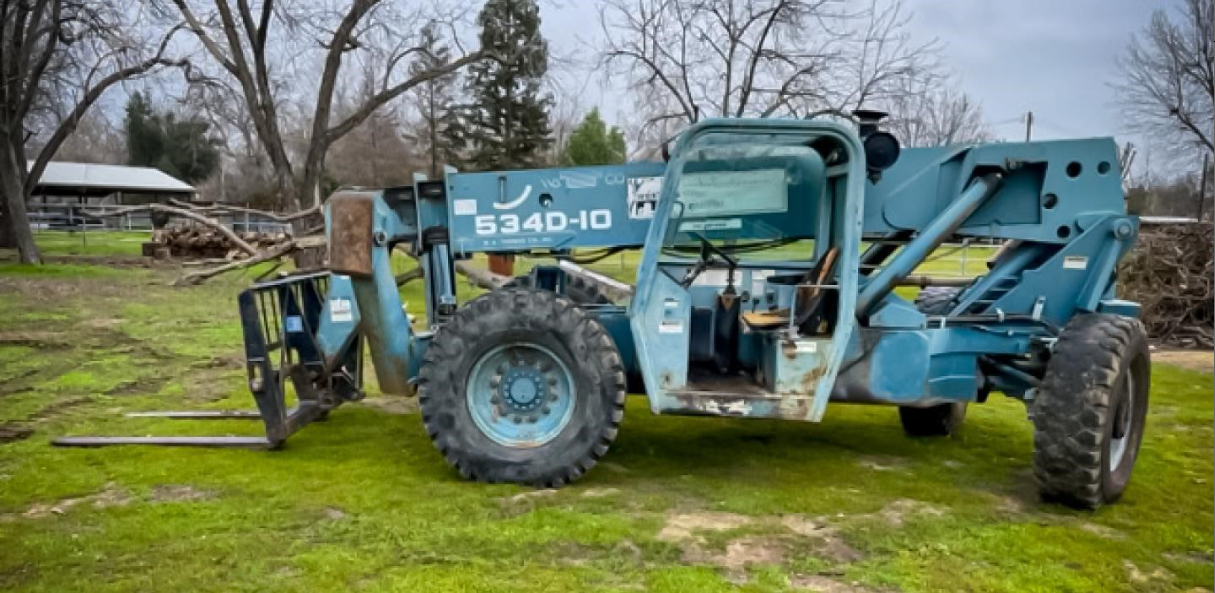

Gradall 534D-10 Specs
Quick-reference specifications for the Gradall 534D-10 telehandler, compiled from published specifications.
- Rated Capacity at 24 in. load center
- 10,000 lb4,536 kg
- Capacity at Maximum Lift Height
- 7,000 lb3,175 kg
- Maximum Lift Height
- 45 ft13.7 m
- Maximum Forward Reach
- 31 ft 6 in9.6 m
Performance 10 specs
| Rated Capacity at 24 in. load center | 10,000 lb (4,536 kg) |
|---|---|
| Maximum Lift Height | 45 ft (13.7 m) |
| Capacity at Maximum Lift Height | 7,000 lb (3,175 kg) |
| Maximum Forward Reach | 31 ft 6 in (9.6 m) |
| Capacity at Maximum Reach | 3,000 lb (1,361 kg) |
| Lift Speed (boom retracted) – Down | 8.1 sec |
| Boom Speed – Extend | 14.5 sec |
| Boom Speed – Retract | 13.4 sec |
| Drawbar Pull (Loaded) | 21,000 lb (9,526 kg) |
| Frame Leveling | 8 degrees |
Dimensions 6 specs
| Length to Fork Face | 19 ft 9 in (6.0 m) |
|---|---|
| Width Over Tires | 8 ft 3 in (2.5 m) |
| Overall Height | 7 ft 9 in (2.36 m) |
| Wheelbase | 11 ft 3 in (3.4 m) |
| Ground Clearance | 19.3 in (490 mm) |
| Outside Turning Radius | 14 ft 7 in (4.4 m) |
Weight 1 spec
| Operating Weight (with 48 in. carriage and forks) | 25,300 lb (11,476 kg) |
|---|
Power / Engine 6 specs
| Make and Model | John Deere 4045TF275 |
|---|---|
| Fuel | No. 2 Diesel |
| Number of Cylinders | 4 |
| Displacement | 276 cu in (4.5 L) |
| Rated Speed | 2,500 rpm |
| Fuel Tank Capacity | 38 gal (144 L) |
Hydraulics / Fluids 4 specs
| Hydraulic System Fluid Capacity | 40 gal (152 L) |
|---|---|
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 14.00 x 24 – 12PR |
