10K Telehandler · Gradall

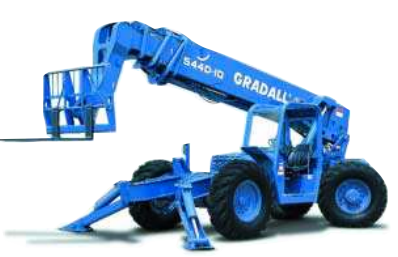

Gradall 544D Specs
Quick-reference specifications for the Gradall 544D telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity – At 24 in. load center
- 10,000 lb4,536 kg
- Maximum Lift Height
- 55 ft16.8 m
- Operating Weight – With 48″ carriage and forks
- 33,570 lb15,224 kg
Performance 7 specs
| Rated Capacity – At 24 in. load center | 10,000 lb (4,536 kg) |
|---|---|
| Frame Leveling | 8 degrees |
| Lift Speed (boom retracted) – Empty | 110 f.p.m. (34 m/min) |
| Lift Speed (boom retracted) – Loaded | 100 f.p.m. (30.5 m/min) |
| Boom Speed – Extend | 130 f.p.m. (40 m/min) |
| Boom Speed – Retract | 130 f.p.m. (40 m/min) |
| Rated Speed | 2500 rpm |
Dimensions 1 spec
| Maximum Lift Height | 55 ft (16.8 m) |
|---|
Weight 1 spec
| Operating Weight – With 48″ carriage and forks | 33,570 lb (15,224 kg) |
|---|
Power / Engine 6 specs
| Make and Model | Cummins B3.9C-130 Turbocharged, aftercooled |
|---|---|
| Fuel | No. 2 Diesel |
| No. of Cylinders | 4 |
| Displacement | 239 cu. in (3.9 L) |
| Electrical System – Voltage | 12 V |
| Electrical System – Alternator | 65 amp |
Hydraulics / Fluids 2 specs
| Fuel Tank | 38 gal (141 L) |
|---|---|
| Hydraulic System-Implement – System capacity | 40 gal (151.4 L) |
