Specs that keep your equipment moving.- Home
- Lifting & Material Handling
- Aerial Lift
- Haulotte 3632T
Aerial Lift · Haulotte

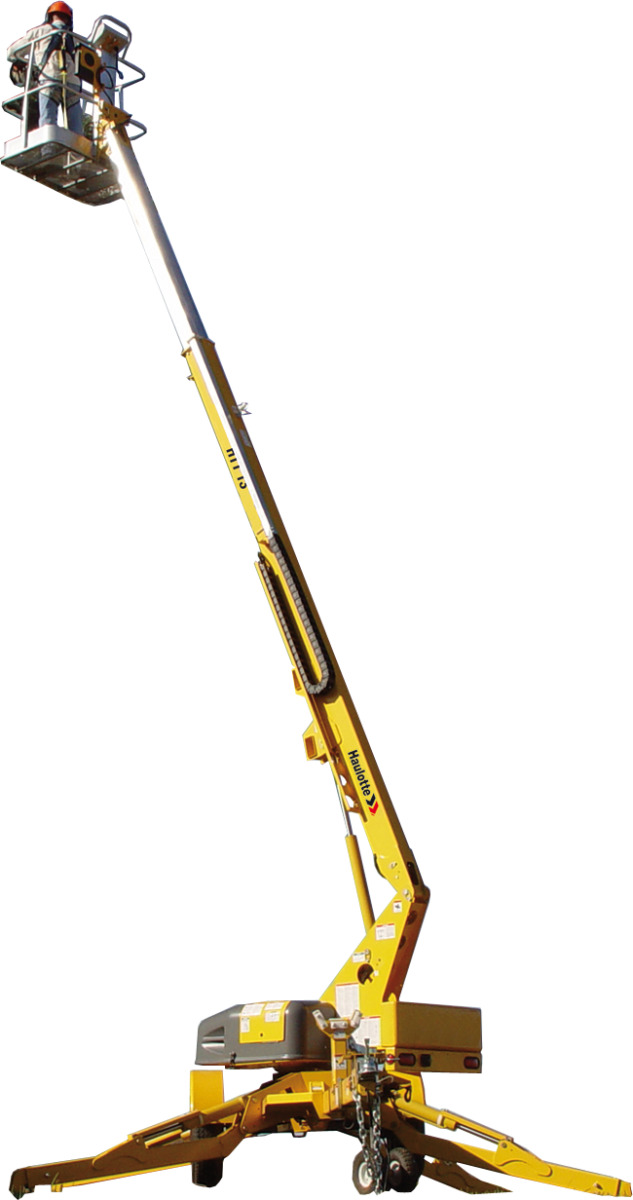

Haulotte 3632T Specs
Quick-reference specifications for the Haulotte 3632T aerial lift, compiled from published specifications.
- Lift Capacity
- 500 lb226.80 kg
- Max Working Height
- 43 ft 6 in13.29 m
- Operating Weight
- 4,440 lb2,013.95 kg
Performance 6 specs
| Max Working Height | 43 ft 6 in (13.29 m) |
|---|---|
| Max Platform Height | 37 ft 6 in (11.46 m) |
| Max Horizontal Reach | 32 ft (9.75 m) |
| Lift Capacity | 500 lb (226.80 kg) |
| Max Speed | 65 mph (104.61 kph) |
| Leveling Capability | 12.5 degrees |
Dimensions 4 specs
| Overall Length | 22 ft 8 in (6.91 m) |
|---|---|
| Overall Width | 5 ft 6 in (1.68 m) |
| Overall Height (mast lowered) | 6 ft 8 in (2.03 m) |
| Platform Size | 2.9 ft x 4 ft (0.88 m x 1.22 m) |
Weight 1 spec
| Operating Weight | 4,440 lb (2,013.95 kg) |
|---|
Power / Engine 3 specs
| Battery Configuration | 4 × 6 V batteries |
|---|---|
| Charger Amps | 245 amps |
| Tire Size | ST 225/75 D15 |
