Haulotte HM10P Specs
Quick-reference specifications for the Haulotte HM10P aerial lift, from the manufacturer’s spec sheet and published specifications.
- Platform Height
- 26 ft 3 in8 m
- Working Height
- 32 ft 9 in10 m
- Max Gradeability
- 25%
Performance 7 specs
| Working Height | 32 ft 9 in (10 m) |
|---|---|
| Platform Height | 26 ft 3 in (8 m) |
| Max. Horizontal Reach | 9 ft 10 in (3 m) |
| Travel Speed | 3.1 mph (5 km/h) |
| Max Gradeability | 25% |
| Rotation Range | 360° |
| Basket Arm Rotation | ±130° |

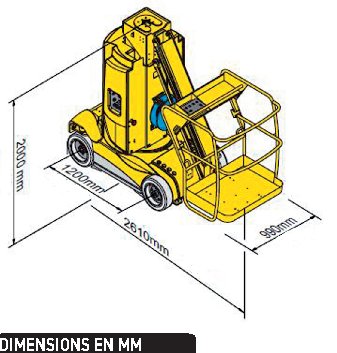

Dimensions 5 specs
| Platform Length | 2 ft 11 in (0.9 m) |
|---|---|
| Platform Width | 2 ft 4 in (0.7 m) |
| Machine Length | 8 ft 9 in (2.67 m) |
| Machine Width / Passage Width | 3 ft 3 in (1.0 m) |
| Turning Radius (outside) | 6 ft 3 in (1.9 m) |
Weight 1 spec
| Total Weight | 5,446 lb (2,470 kg) |
|---|
Power / Engine 2 specs
| Power Source | 24 V Electric (Battery) |
|---|---|
| Charger | 35 A battery charger |
Hydraulics / Fluids 1 spec
| Hydraulic Fluid Capacity | 1.85 gal (7 l) |
|---|
