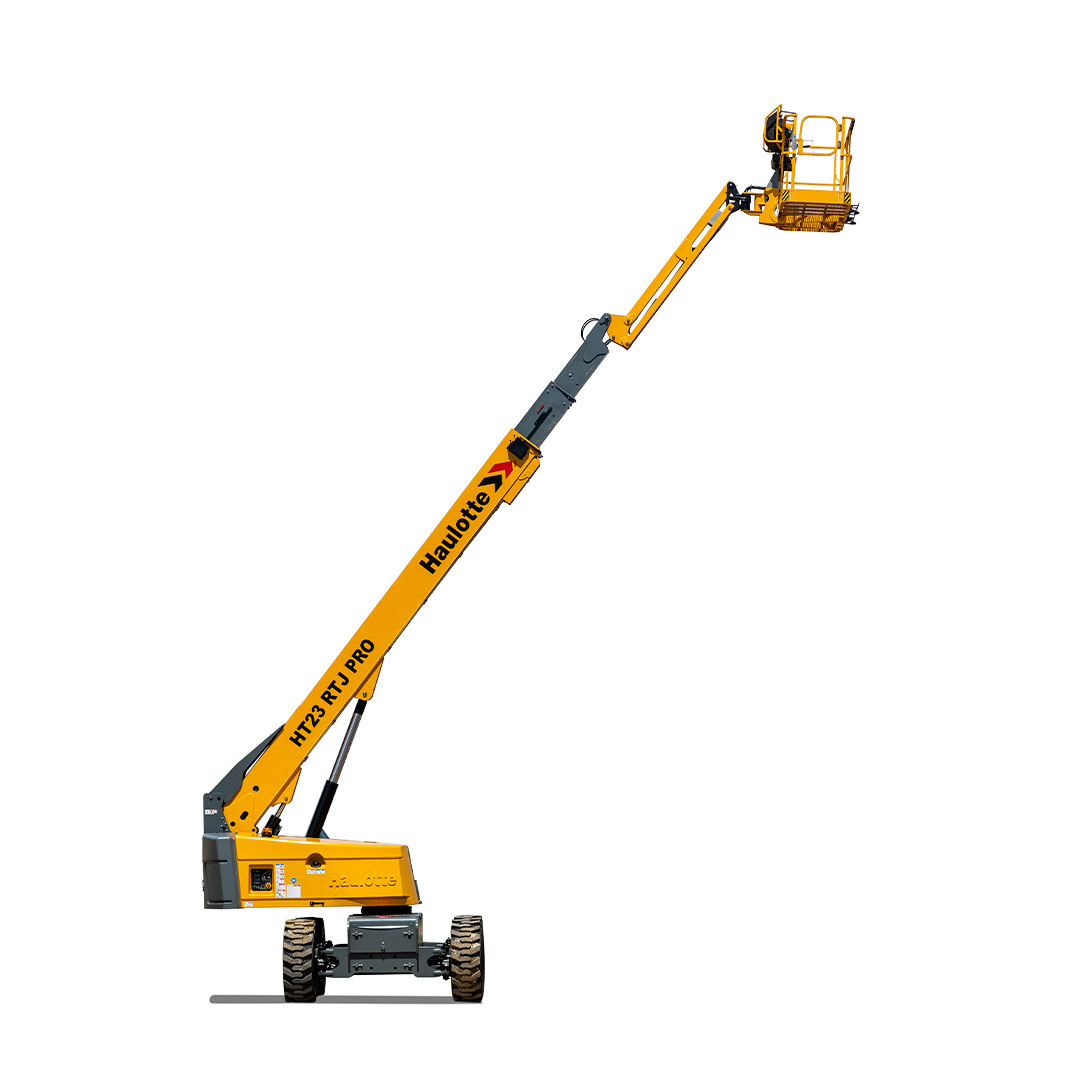

Haulotte HT23RTJPRO Specs
Quick-reference specifications for the Haulotte HT23RTJPRO aerial lift, taken from the manufacturer’s spec sheet.
- Platform height
- 20.5 m
- Working height
- 22.5 m
- Weight
- 13,400 kg
- Gradeability
- 40 %
Performance 13 specs
| Working height | 22.5 m |
|---|---|
| Horizontal outreach | 18.3 m |
| Below ground reach | 4 m |
| Vertical jib rotation | 133° (+68/-65) |
| Platform rotation | 180° (+90/-90) |
| Boom rotation angle | 90° (+75/-15) |
| Turntable rotation | 360° continuous |
| Tilt | 5° |
| Drive speed | 0.5 – 6.5 km/h |
| Gradeability | 40 % |
| Turning radius – outside | 3,4 m |
| Tires – foam-filled | 385/65 – 22.5 |
| Maximum wind speed | 28 mph (45 km/h) |
Dimensions 8 specs
| Platform height | 20.5 m |
|---|---|
| Platform size | 2.44 x 0.91 m |
| Length – stowed | 10.4 m |
| Length – storage | 7.8 m |
| Width | 2.47 m |
| Wheelbase | 2.5 m |
| Ground clearance | 34 cm |
| Tailswing | 109 cm |
Weight 1 spec
| Weight | 13,400 kg |
|---|
