Aerial Lift · Haulotte

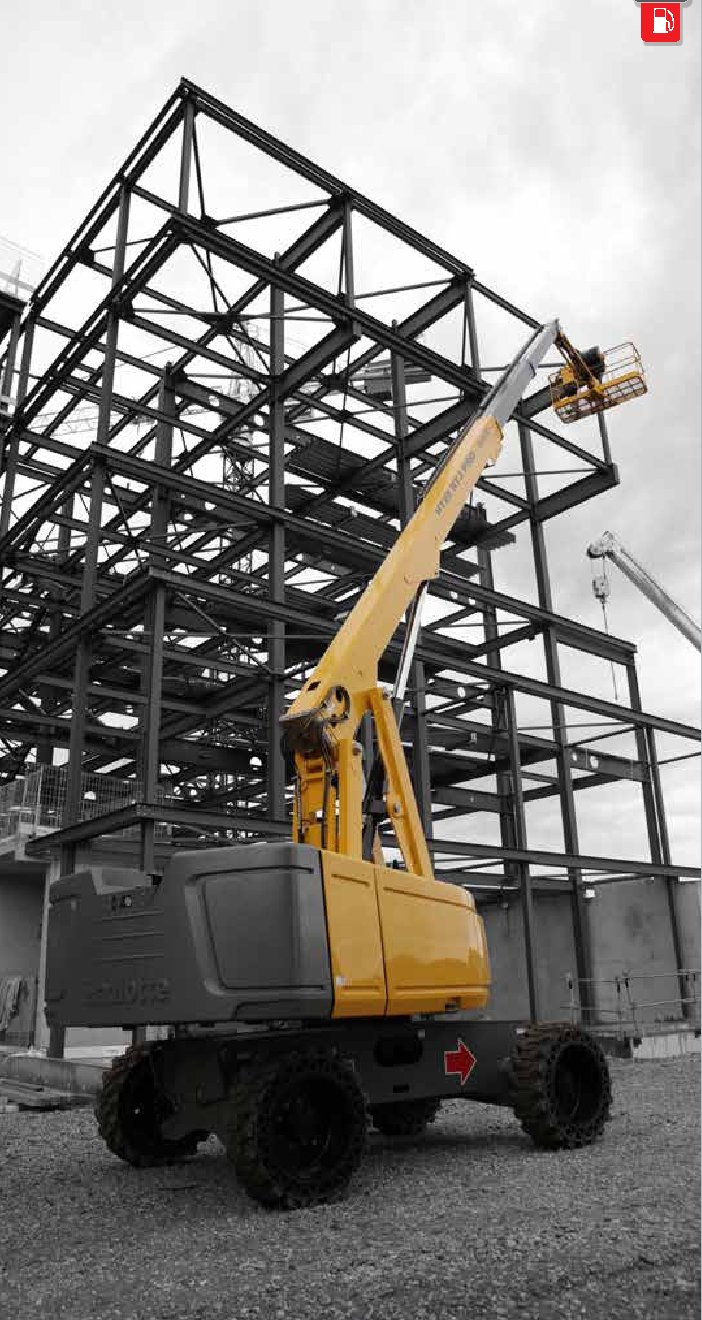

Haulotte HT28RTJPRO Specs
Quick-reference specifications for the Haulotte HT28RTJPRO aerial lift, taken from the manufacturer’s spec sheet.
- Platform height
- 25.9 m
- Working height
- 27.9 m
- Weight
- 18,100 kg
- Gradeability
- 45 %
Performance 10 specs
| Working height | 27.9 m |
|---|---|
| Horizontal outreach | 23.85 m |
| Below ground reach | 3 m |
| Vertical jib rotation | 133° (-66°/+67°) |
| Boom rotation angle | 84.5° (+74.5°/-10°) |
| Turntable rotation | 360° continuous |
| Tilt | 4 ° |
| Drive speed | 0.5 – 5 km/h |
| Gradeability | 45 % |
| Turning radius – outside | 4.35 m |
Dimensions 10 specs
| Platform height | 25.9 m |
|---|---|
| Platform size | 2.44 x 0.91 |
| Length – stowed | 13.05 m |
| Length – storage | 9.8 m |
| Width | 2.48 m |
| Jib length | 1.83 m |
| Tailswing | 150 cm |
| Wheelbase | 2.8 m |
| Ground clearance | 48 cm |
| Tires – foam-filled | Solid RT cured on 1025×365 mm |
Weight 1 spec
| Weight | 18,100 kg |
|---|
Power / Engine 1 spec
| Engine | Kubota Tier 3 – 49,3 kW & Kubota Tier 4f – 53 kW |
|---|
