Aerial Lift · Haulotte

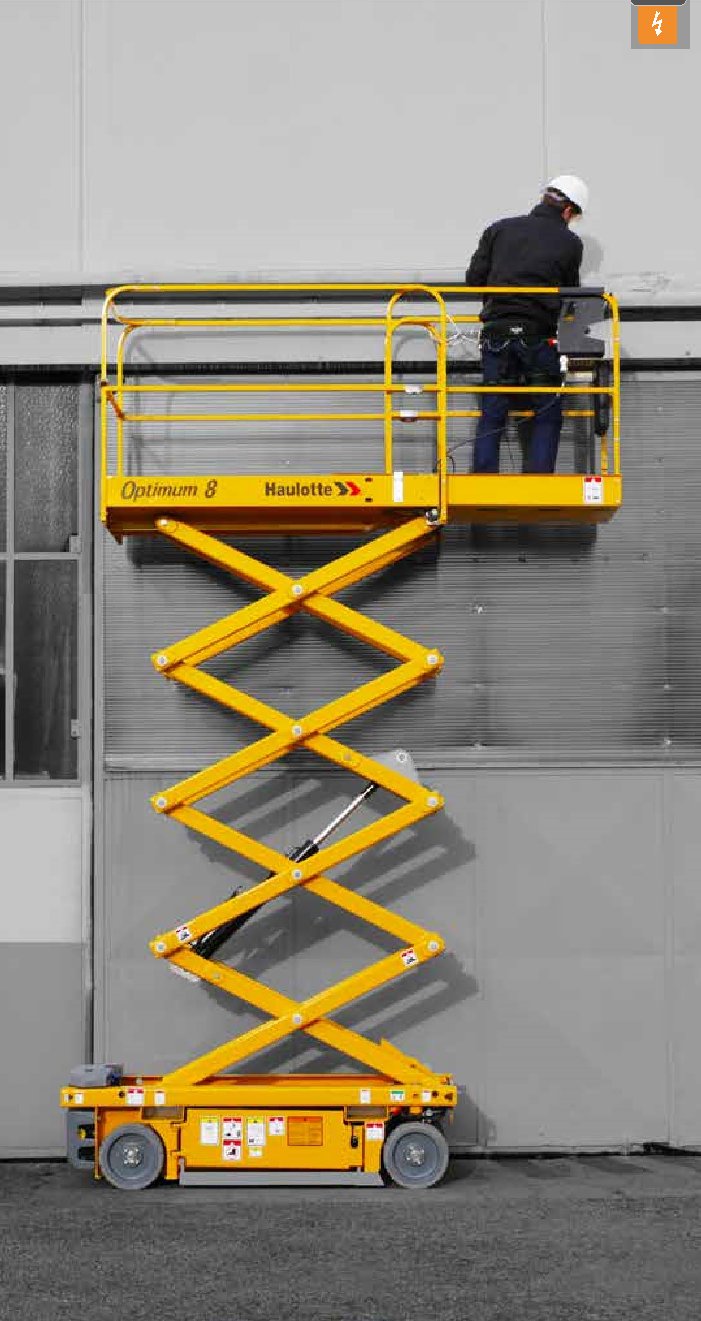

Haulotte OPTIMUM 8 Specs
Quick-reference specifications for the Haulotte OPTIMUM 8 aerial lift, compiled from published specifications.
- Maximum Platform Capacity
- 507 lb230 kg
- Platform Height
- 18 ft 11 in5.77 m
- Maximum Working Height
- 25 ft 6 in7.77 m
- Operating Weight
- 3,465 lb1,572 kg
Performance 13 specs
| Maximum Working Height | 25 ft 6 in (7.77 m) |
|---|---|
| Platform Height | 18 ft 11 in (5.77 m) |
| Maximum Platform Capacity | 507 lb (230 kg) |
| Maximum Persons Indoor/Outdoor | 2 persons |
| Drive Speed | 2.9 mph (4.67 km/h) |
| Maximum Forward Speed | 2.8 mph (4.5 km/h) |
| Gradeability | 25% |
| Maximum Wind Speed | 28 mph (45 km/h) |
| Turning Radius Outside | 5.58 ft (1.70 m) |
| Raise Time | 23 seconds |
| Lower Time | 32 seconds |
| Deck Extension | 36.23 in (92 cm) |
| Deck Extension Capacity | 253 lb (115 kg) |
Dimensions 7 specs
| Overall Length (Stowed) | 6 ft 3 in (1.90 m) |
|---|---|
| Overall Width | 2 ft 6 in (0.76 m) |
| Overall Height (Stowed) | 6 ft 7 in (2.00 m) |
| Platform Length (Standard) | 5 ft 6 in (1.68 m) |
| Platform Width (Standard) | 2 ft 4 in (0.70 m) |
| Ground Clearance (Center) | 3 in (8 cm) |
| Wheelbase | 4 ft 6 in (1.38 m) |
Weight 1 spec
| Operating Weight | 3,465 lb (1,572 kg) |
|---|
Power / Engine 4 specs
| Power Source | 24 V DC Electric Battery |
|---|---|
| Number of Batteries | 4 |
| Charger Amps | 30 amps |
| System Voltage | 24 V |
Hydraulics / Fluids 1 spec
| Hydraulic System Capacity | 5.28 gal (20 L) |
|---|
