- Haulotte HS18 E PRO
Aerial Lift · Haulotte

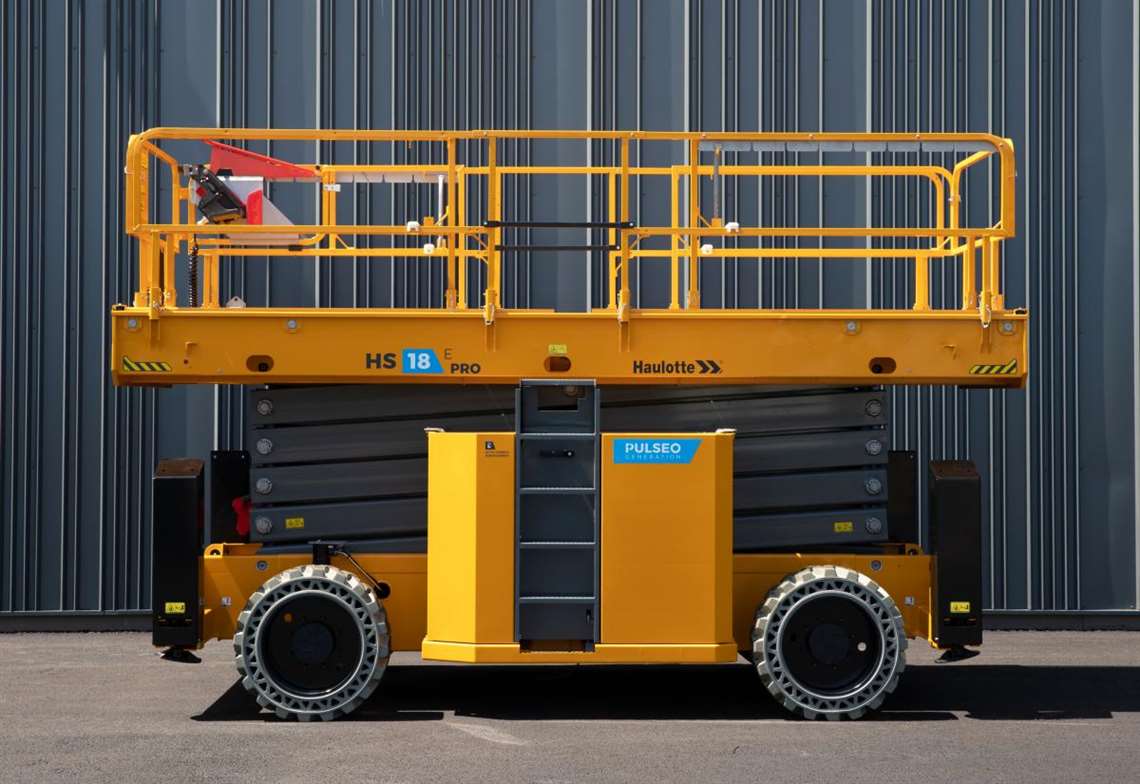

Haulotte HS18 E PRO Specs
Quick-reference specifications for the Haulotte HS18 E PRO aerial lift, taken from the manufacturer’s spec sheet.
- Lift capacity on the extension
- 225 kg
- Platform height
- 16 m
- Working height
- 18 m
- Weight
- 8,010 kg
Performance 6 specs
| Working height | 18 m |
|---|---|
| Max. drive working height | 13 m |
| Lift capacity on the extension | 225 kg |
| Drive speed | 5 km/h |
| Gradeability | 40 % |
| Tilt (lonitudinal / lateral) | 5° / 2° |
Dimensions 12 specs
| Platform height | 16 m |
|---|---|
| Platform length | 3.82 m |
| Platform length – extended | 5.8 m |
| Length – extension | 0.93 m |
| Platform width – outside | 1.89 m |
| Height – stowed | 3.15 m |
| Height – guardrails lowered | 2.29 m |
| Overall width | 2.3 m |
| Length | 4.4 m |
| Wheelbase | 2.76 m |
| Ground clearance | 30.7 cm |
| Tyres | 830 x 285 mm |
Weight 1 spec
| Weight | 8,010 kg |
|---|
