Forklift · Hyster

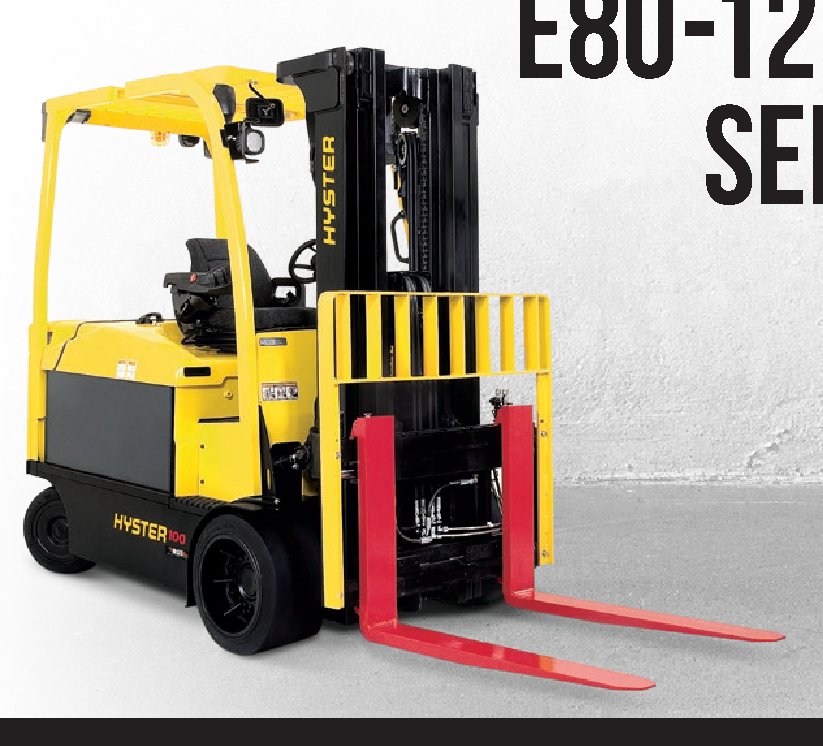

Hyster E100XN Specs
Quick-reference specifications for the Hyster E100XN forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 12,299.6 lb5,579 kg
- Gradeability
- 11.9%
Performance 10 specs
| Lift speed | Std 2-stg LFL mast |
|---|---|
| Lower speed | Std 2-stg LFL mast |
| Max Speed | 10.4 mph (16.74 kph) |
| Gradeability | 11.9% |
| Turning Radius | 7.69 ft (2.34 m) |
| Hoisting Speed (with load) | 0.36 m/s |
| Hoisting Speed (without load) | 0.23 m/s |
| Lowering Speed (with load) | 0.45 m/s |
| Travel Speed (with load) | 16.6 km/h |
| Travel Speed (without load) | 14.2 km/h |
Dimensions 9 specs
| Length to Fork Face | 9.16 ft (2.79 m) |
|---|---|
| Overall Height – Mast Lowered | 7.02 ft (2.14 m) |
| Overall Width | 4.34 ft (1.32 m) |
| Height to Top of Overhead Guard | 3.12 ft (0.95 m) |
| Ground Clearance | 3.63 in (9.22 cm) |
| Max Fork Height | 1.07 ft (0.33 m) |
| Wheelbase | 5.71 ft (1.74 m) |
| Right Angle Stack | 13.17 ft (4.01 m) |
| Max Fork Spread | 158.71 in (403.12 cm) |
Weight 4 specs
| Operating Weight | 12,299.6 lb (5,579 kg) |
|---|---|
| Axle Load – Front | 7,708 lb (3,496.29 kg) |
| Axle Load – Rear | 10,139 lb (4,598.98 kg) |
| Battery Weight (minimum) | 4,000 lb |
Power / Engine 2 specs
| Battery Voltage | 36 V, 48 V, or 80 V |
|---|---|
| Traction Motor | 36 kW |
Hydraulics / Fluids 7 specs
| Pump motor | 15% rating |
|---|---|
| Load Capacity | 10,000 lb (4,536 kg) |
| Load Center | 24.02 in (61.01 cm) |
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Drawbar Pull | 3,322 lb (1,506.84 kg) |
| Auxiliary Oil Flow | 16 gal/min (60 l/min) |
