Forklift · Hyster

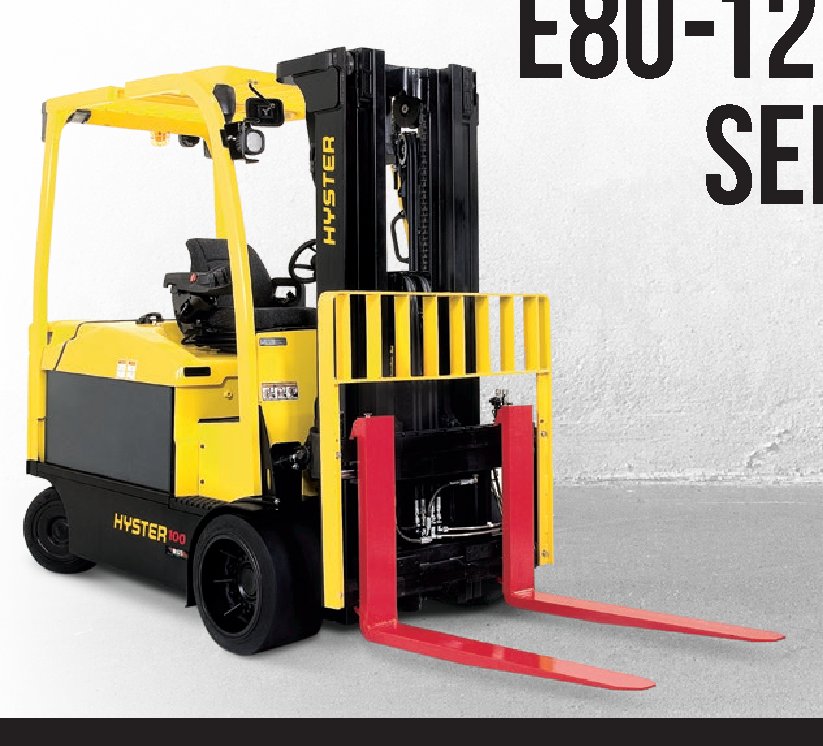

Hyster E120XN Specs
Quick-reference specifications for the Hyster E120XN forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 13,809.80 lb6,264.03 kg
- Gradeability
- 10.4%
Performance 7 specs
| Lift speed | Std 2-stg LFL mast |
|---|---|
| Lower speed | Std 2-stg LFL mast |
| Load Capacity | 12,000 lb (5,443 kg) |
| Max Speed | 10.4 mph (16.74 kph) |
| Gradeability | 10.4% |
| Turning Radius | 8.00 ft (2.44 m) |
| Drawbar Pull | 3,320 lb (1,505.93 kg) |
Dimensions 13 specs
| Overall Width | 4.40 ft (1.34 m) |
|---|---|
| Overall Height – Mast Lowered | 7.10 ft (2.16 m) |
| Overall Height – Mast Extended | 14.08 ft (4.29 m) |
| Length to Fork Face | 9.00 ft (2.74 m) |
| Wheelbase | 5.80 ft (1.77 m) |
| Ground Clearance | 3.70 in (9.40 cm) |
| Height to Top of Overhead Guard | 3.20 ft (0.98 m) |
| Max Fork Height | 1.10 ft (0.34 m) |
| Right Angle Stack | 13.50 ft (4.11 m) |
| Max Fork Spread | 158.80 in (403.35 cm) |
| Load Center | 24.10 in (61.21 cm) |
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
Weight 3 specs
| Operating Weight | 13,809.80 lb (6,264.03 kg) |
|---|---|
| Axle Load – Front | 7,466 lb (3,386.52 kg) |
| Axle Load – Rear | 11,886 lb (5,391.41 kg) |
Power / Engine 1 spec
| Battery Voltage Options | 36 V / 48 V / 80 V |
|---|
Hydraulics / Fluids 3 specs
| Pump motor | 15% rating |
|---|---|
| Front Tire Size | 22 x 12 x 16 |
| Rear Tire Size | 18 x 7 x 12.1 |
