Forklift · Hyster

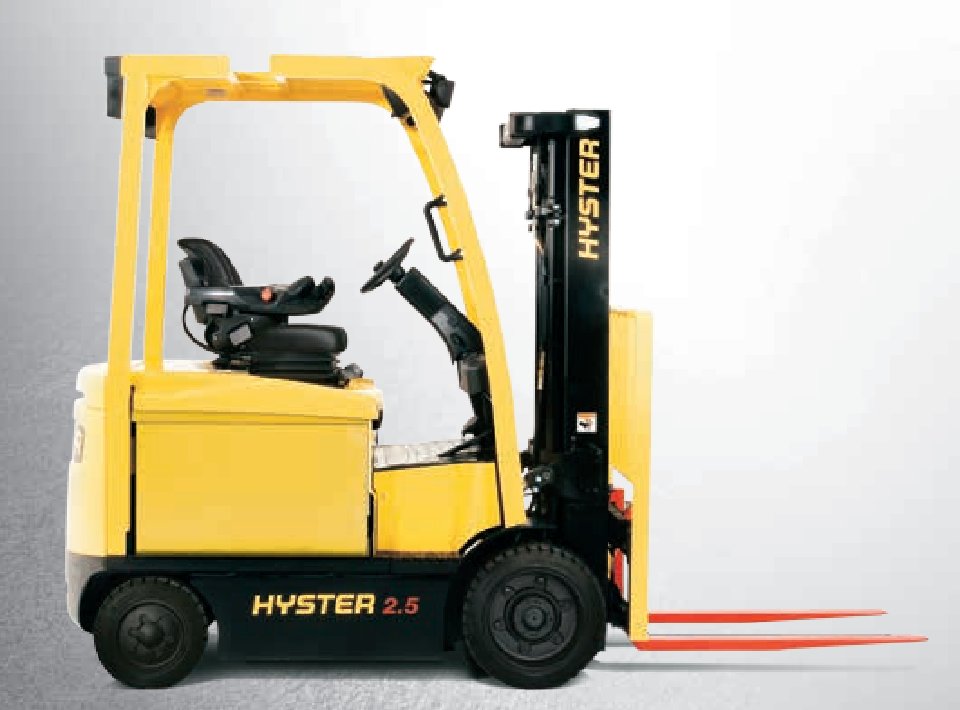

Hyster E2.5XN Specs
Quick-reference specifications for the Hyster E2.5XN forklift, from the manufacturer’s spec sheet and published specifications.
Performance 9 specs
| Load Capacity | 5,512 lb (2,500 kg) |
|---|---|
| Load Centre Distance | 1.64 ft (500 mm) |
| Travel Speed (with load) | 12.4 mph (19.9 km/h) |
| Travel Speed (without load) | 12.2 mph (19.7 km/h) |
| Hoist Speed (with load) | 0.52 m/s (102 ft/min) |
| Hoist Speed (without load) | 0.72 m/s (142 ft/min) |
| Lowering Speed (with load) | 0.57 m/s (112 ft/min) |
| Turning Radius (SWB) | 5.76 ft (1,757 mm) |
| Turning Radius (MWB) | 6.18 ft (1,884 mm) |
Dimensions 3 specs
| Overall Width | 3.64 ft (1,108 mm) |
|---|---|
| Construction Height (Mast Lowered) | 7.38 ft (2,248 mm) |
| Lifting Height | 13.55 ft (4,130 mm) |
Weight 2 specs
| Service Weight | 10,120 lb (4,590 kg) |
|---|---|
| Battery Weight | 3,307 lb (1,500 kg) |
Power / Engine 5 specs
| Electric (battery) – Seated | 2.2 |
|---|---|
| Battery according to DIN | 43531/35/36 A, B, C, no |
| Voltage | 80 V |
| Traction Motor | 23.6 kW |
| Hoist Motor | 24 kW |
Hydraulics / Fluids 3 specs
| Operating Pressure (Attachments) | 180 bar |
|---|---|
| Oil Volume for Attachments | 40 l/min |
| Hydraulic Oil Tank Capacity | 21.2 l |
