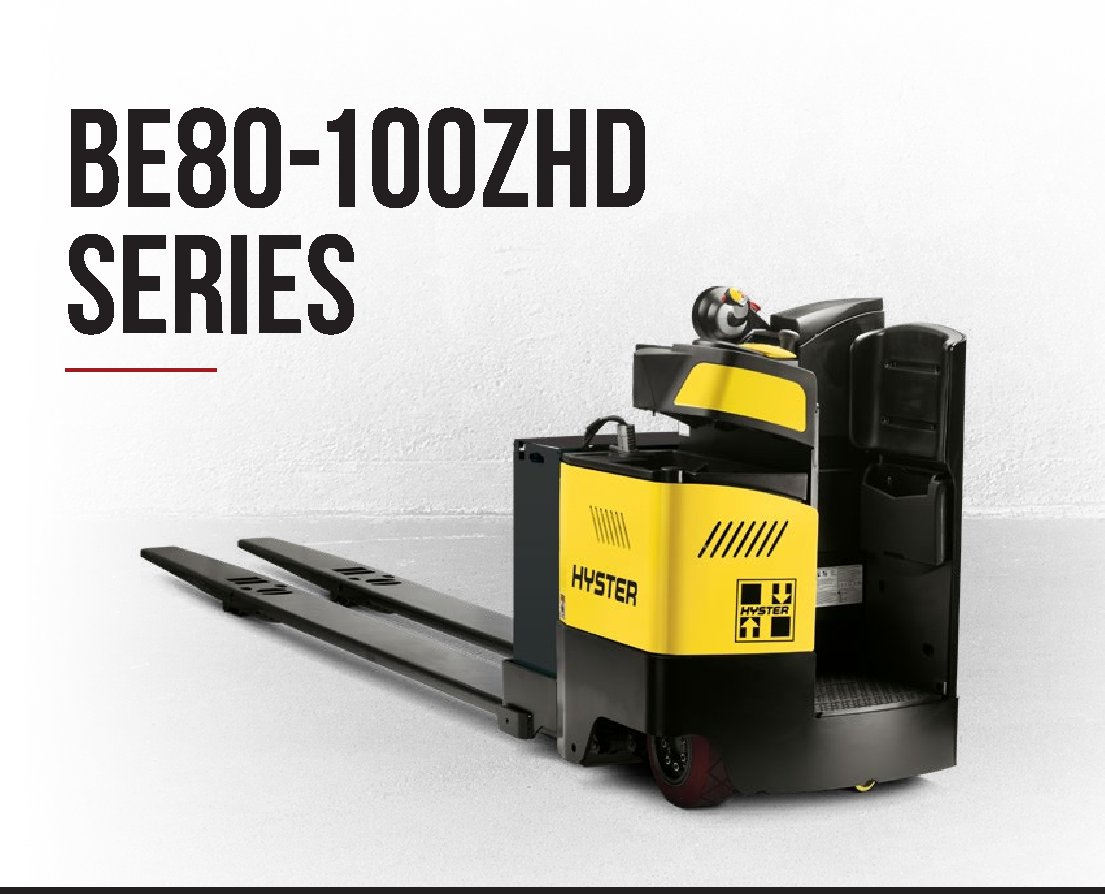

Hyster BE100ZHD Specs
Quick-reference specifications for the Hyster BE100ZHD forklift, taken from the manufacturer’s spec sheet.
- Rated capacity – lifting
- 10000 lb4536 kg
Performance 9 specs
| Rated capacity – lifting | 10000 lb (4536 kg) |
|---|---|
| Outside turning radius Raised | 128.1 in (3254 mm) |
| Outside turning radius Lowered | 132.1 in (3356 mm) |
| Max travel speed – chassis first (no load/rated load) | 9.0/6.5 mph (14.5/10.5 kph) |
| Max travel speed – forks first (no load/rated load) | 7.0/6.5 mph (11.3/10.5 kph) |
| Traction motor control method type | AC transistor |
| Service brake type | Electro-mechanical |
| Ampere hours – maximum | 930 ah |
| Ampere hours – minimum | 375 ah |
Dimensions 18 specs
| Fork length – nominal | 144 in (3658 mm) |
|---|---|
| Fork length – actual | 143.8 in (3652 mm) |
| Fork overall width | 28.6 in (726 mm) |
| Individual fork width | 10 in (254 mm) |
| Wheelbase Raised | 114.6 in (2910 mm) |
| Wheelbase Lowered | 118.6 in (3012 mm) |
| Overall length Raised | 188.7 in (4793 mm) |
| Overall length Lowered | 188.2 in (4780 mm) |
| Center of load wheel to tip of forks Raised | 59.9 in (1521 mm) |
| Center of load wheel to tip of forks Lowered | 56.1 in (1424 mm) |
| Right angle stack Raised | 190.6 in (4842 mm) |
| Equal intersecting aisle Raised | 99.7 in (2533 mm) |
| Overall lift height Top of forks | 9.3 in (235 mm) |
| Lowered height Top of forks | 3.3 in (84 mm) |
| Total lift | 5.9 in (151 mm) |
| Truck overall width | 38.0 in (967 mm) |
| Chassis length Raised | 44.9 in (1141 mm) |
| Chassis length Lowered | 44.4 in (1128 mm) |
Weight 2 specs
| Maximum weight | 1500 lb (680 kg) |
|---|---|
| Minimum weight | 825 lb (374 kg) |
Power / Engine 2 specs
| Battery type | 24 volt |
|---|---|
| Truck weight (approximate) – without battery (no load) | 2211 lb (1002 kg) |
