Forklift · Hyster

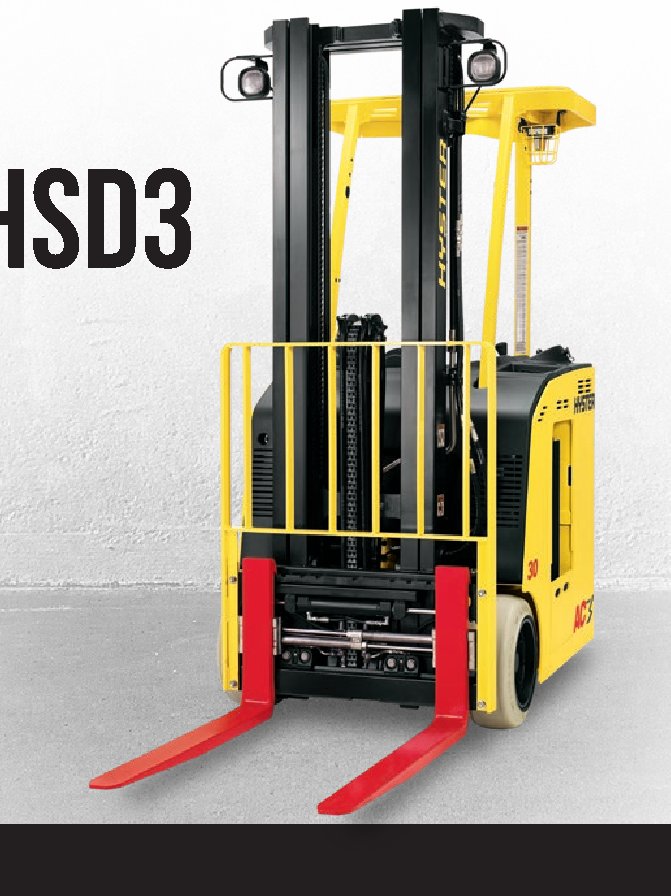

Hyster E40HSD3 Specs
Quick-reference specifications for the Hyster E40HSD3 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 6,801 lb3,085 kg
- Gradeability
- 15%
Performance 8 specs
| Lift speed | Std 2-stg LFL mast (NL/RL) |
|---|---|
| Lower speed | Std 2-stg LFL mast (NL/RL) |
| Max Speed | 7.3 mph (11.75 kph) |
| Lift Speed (No Load) | 87 ft/min (26.52 m/min) |
| Lower Speed (No Load) | 63 ft/min (19.20 m/min) |
| Travel Speed (Full Load) | 7.2 mph |
| Gradeability | 15% |
| Drawbar Pull | 2,562 lb (1,162.11 kg) |
Dimensions 11 specs
| Length to Fork Face | 5.60 ft (1.71 m) |
|---|---|
| Overall Width | 3.60 ft (1.10 m) |
| Overall Height – Mast Lowered | 7.00 ft (2.13 m) |
| Height to Top of Overhead Guard | 15.00 ft (4.57 m) |
| Wheelbase | 3.90 ft (1.19 m) |
| Turning Radius | 4.80 ft (1.46 m) |
| Ground Clearance | 4.10 in (10.41 cm) |
| Right Angle Stack | 5.90 ft (1.80 m) |
| Max Fork Spread | 131.20 in (333.25 cm) |
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
Weight 3 specs
| Operating Weight | 6,801 lb (3,085 kg) |
|---|---|
| Axle Load – Front | 4,477 lb (2,030.74 kg) |
| Axle Load – Rear | 5,569 lb (2,526.06 kg) |
Power / Engine 5 specs
| Battery dimensions – max | X |
|---|---|
| Fuel Type | Electric – 36 Volts |
| Traction Motors (Dual) | 6.4 hp (4.8 kW) each |
| Load Capacity | 4,000 lb (1,814 kg) |
| Load Center | 24.00 in (60.96 cm) |
Hydraulics / Fluids 2 specs
| Battery Voltage | 36 V |
|---|---|
| Minimum Battery Weight | 2,300 lb (1,043 kg) |
