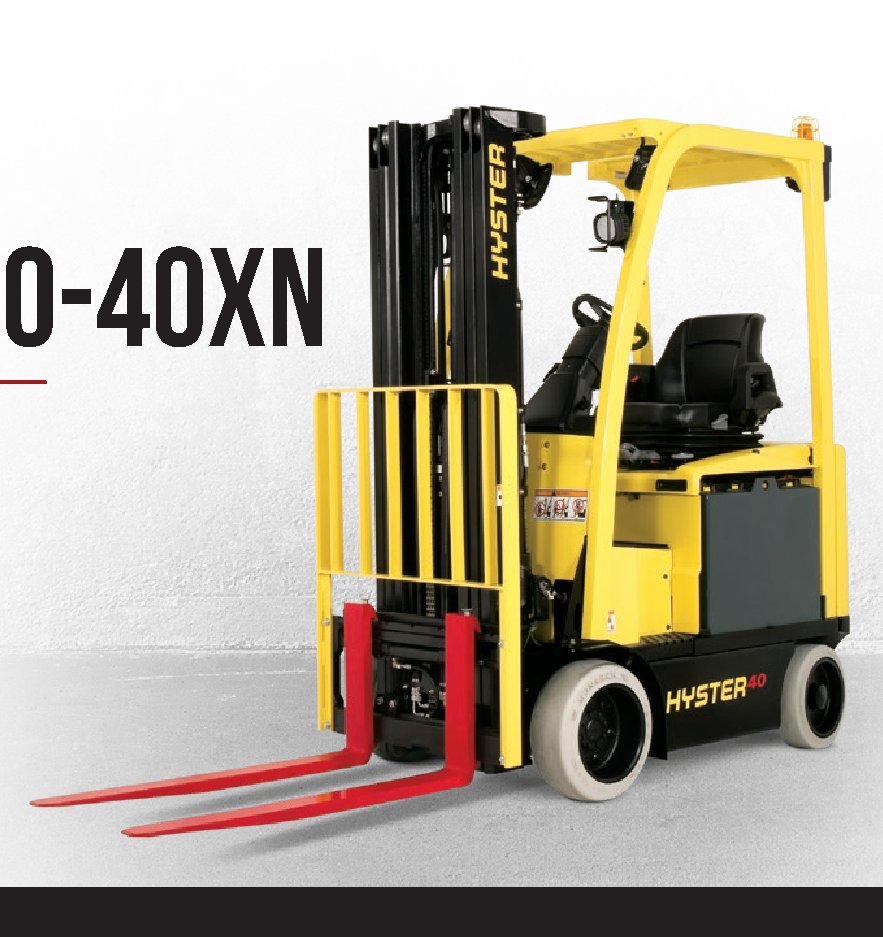

Hyster E40XN Specs
Quick-reference specifications for the Hyster E40XN forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 5,769.50 lb2,617 kg
- Gradeability (full load)
- 22.7%
Performance 7 specs
| Center of tires | Nar/int/wide 6 in/wide 7 in |
|---|---|
| Lower speed | Std 2-stg LFL mast |
| Max Speed | 11.5 mph (18.51 kph) |
| Lift Speed | 126 ft/min (38.40 m/min) |
| Gradeability (full load) | 22.7% |
| Turning Radius | 5.56-5.60 ft (1.71 m) |
| Drawbar Pull | 2,621 lb (1,188.87 kg) |
Dimensions 12 specs
| Length to Fork Face | 6.46-6.50 ft (1.98 m) |
|---|---|
| Overall Width | 3.24-3.30 ft (1.01 m) |
| Overall Height (mast lowered) | 6.83-6.90 ft (2.10 m) |
| Wheelbase | 4.01-4.10 ft (1.25 m) |
| Ground Clearance | 3.55-3.60 in (9.14 cm) |
| Height to Top of Overhead Guard | 3.23-3.30 ft (1.01 m) |
| Max Fork Height | 0.77-0.80 ft (0.24 m) |
| Right Angle Stack | 10.73-10.80 ft (3.29 m) |
| Max Fork Spread | 127.25-127.30 in (323.34 cm) |
| ForkSize(TxWxL) | 1.6 x 3.9 x 42 in (40 x 100 x 1067 mm) |
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
Weight 5 specs
| Operating Weight | 5,769.50 lb (2,617 kg) |
|---|---|
| Load Capacity | 4,000 lb (1,814 kg) |
| Load Center | 24 in (610 mm) |
| Axle Load – Front | 3,336 lb (1,513.19 kg) |
| Axle Load – Rear | 4,925 lb (2,233.95 kg) |
Power / Engine 3 specs
| Voltage | 36 V / 48 V |
|---|---|
| Traction Motor | 24.7 hp (18.4 kW) |
| Engine Model | E40XN |
Hydraulics / Fluids 4 specs
| Pump motor | S3-15% |
|---|---|
| Attachment Relief Pressure | 2,596 psi (179 bar) |
| Battery Options | 36 V / 1200 Ah – 48 V / 1000 Ah |
| Battery Weight | 1.13 t |
