Forklift · Hyster

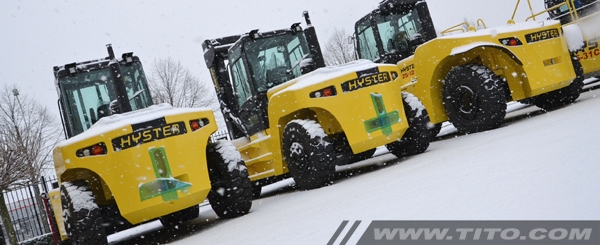

Hyster H16XM-6 Specs
Quick-reference specifications for the Hyster H16XM-6 forklift, compiled from published specifications.
- Rated Capacity
- 35,274 lb16,000 kg
Performance 7 specs
| Rated Capacity | 35,274 lb (16,000 kg) |
|---|---|
| Load Centre Distance | 600 mm |
| Travel Speed (Laden/Unladen) | 23.4/27.3 km/h |
| Hoisting Speed (Laden/Unladen) | 0.28/0.42 m/s |
| Lowering Speed (Laden) | 0.48 m/s |
| Maximum Climbing Ability | 35% |
| Turning Radius | 15.0 ft (4.584 m) |
Dimensions 6 specs
| Lifting Height (Standard) | 20.3 ft (6.2 m) |
|---|---|
| Overall Width | 8.5 ft (2,607 mm) |
| Construction Height | 10.1 ft (3,064 mm) |
| Fork Length | 8.0 ft (2,440 mm) |
| Fork Width | 7.9 in (200 mm) |
| Mast Tilt | 15° forward / 12° backward |
Weight 1 spec
| Service Weight | 43,745 lb (19,847 kg) |
|---|
Power / Engine 6 specs
| Engine Type | QSB6.7 |
|---|---|
| Engine Power | 160 hp (117 kW) |
| Displacement | 409 cu in (6.7 L) |
| Number of Cylinders | 6 |
| Max Torque | 673 Nm @ 1500 rpm |
| Governed Speed | 2150 rpm |
Hydraulics / Fluids 4 specs
| Hydraulic Tank Capacity | 33 gal (125 L) |
|---|---|
| Main Control Valve Relief Pressure | 22.5 MPa (3,263 psi) |
| Steering Circuit Relief Pressure | 16 ±1 MPa (2,320 ±145 psi) |
| Oil Pressure (At low idle) | 10 psi (69 kPa) |
