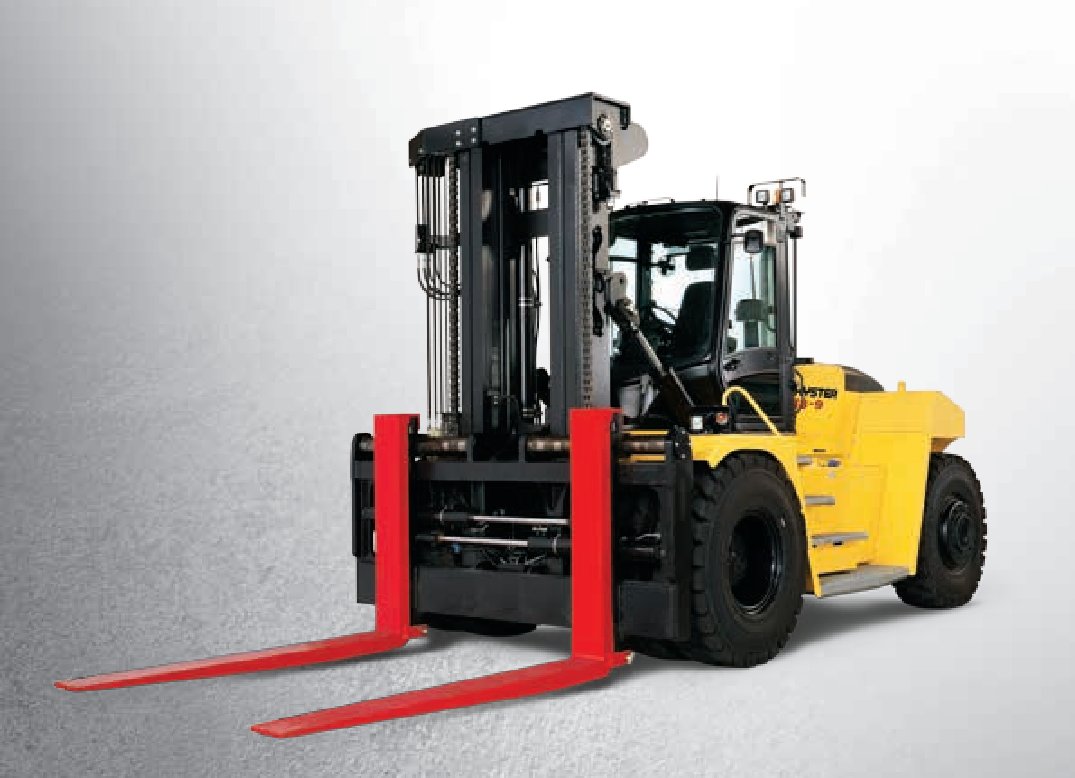

Hyster H18XM-9 Specs
Quick-reference specifications for the Hyster H18XM-9 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity / rated load Q
- 18 t / 16 t
- Gradeability, laden / unladen
- 33 / 34 %
Performance 15 specs
| Rated capacity / rated load Q | 18 t / 16 t |
|---|---|
| Travel speed, laden / unladen | 25 / 25 km/h |
| Lift speed, laden / unladen | 0.33 / 0.50 m/s |
| Lift speed, laden with 70% load | 0.47 m/s |
| Lowering speed, laden / unladen | 0.50 / 0.50 m/s |
| Drawbar pull, laden / unladen | 165 / 203 kN |
| Gradeability, laden / unladen | 33 / 34 % |
| Steering design | Hydraulic power steering |
| Number of steering rotation | 4.4 |
| Tilt of mast/fork carriage forward/backward a / b | 10 / 12° |
| Turning radius Wa | 4,863 / 5,173 mm |
| Internal turning radius b | 1,700 / 1,886 mm |
| Rated speed | 2,000 min-1 |
| Service brake | Oil immersed disc |
| Parking brake | Dry disc on drive axle |
Dimensions 21 specs
| Load centre distance c | 900 / 1,200 mm |
|---|---|
| Load distance, centre of drive axle to fork x | 1,134 mm |
| Wheelbase y | 3,500 / 3,750 mm |
| Tyre size, front | 14.00 – 24 24PR |
| Tyre size, rear | 14.00 – 24 24PR |
| Height, mast lowered h | 4,142 mm |
| Free lift h | 0 mm |
| Lift h | 4,550 mm |
| Height, mast extended h | 6,417 mm |
| Height of closed cabin w/o / with airco h | 3,408 / 3,441 mm |
| Seat height relating to SIP h | 2,240 mm |
| Coupling height h | 907 mm |
| Overall length l | 7,975 / 8,225 mm |
| Length to face of forks l | 5,535 / 5,785 mm |
| Overall width across all b | 2,923 mm |
| Fork dimensions ISO 2331 s/e/l | 100 / 200 / 2,440 mm |
| Fork carriage width b | 2,672 mm |
| Distance over fork arms, minimum / maximum b | 998 / 2,443 mm |
| Sideshift @ width over forks b8 / b | +/- 361 / 1,721 mm |
| Ground clearance, laden, below mast m | 299 mm |
| Ground clearance, centre of wheelbase m | 374 mm |
Weight 3 specs
| Service weight | 26,932 / 29,284 kg |
|---|---|
| Axle loading, laden front / rear | 41,601 / 3,331 / 45,758 / 3,526 kg |
| Axle loading, unladen front / rear | 13,933 / 13,094 / 15,356 / 14,285 kg |
Power / Engine 10 specs
| Engine manufacturer / type | Cummins QSB 6.7 |
|---|---|
| Engine output according to ISO 1585 | 164 kW |
| Max. engine power according to ISO 1585 | 172 kW / min-1 |
| Torque at 1/min | 949 Nm / min-1 |
| Number of cylinders / displacement | 6 / 6,690 cm3 |
| Alternator | 120 A |
| Battery voltage/nominal capacity | 24 V / 102 Ah |
| Type of drive unit | Torque Converter |
| Transmission manufacturer / type | ZF 5WG211 |
| Wheel drive / drive axle manufacturer / type | Axle Tech PRC1756W3H |
Hydraulics / Fluids 4 specs
| Working pressure for attachments | 22.5 MPa |
|---|---|
| Oil volume for attachments | 100 l/min |
| Hydraulic oil tank, capacity | 203 l |
| Fuel tank, capacity | 303 l |
