Forklift · Hyster

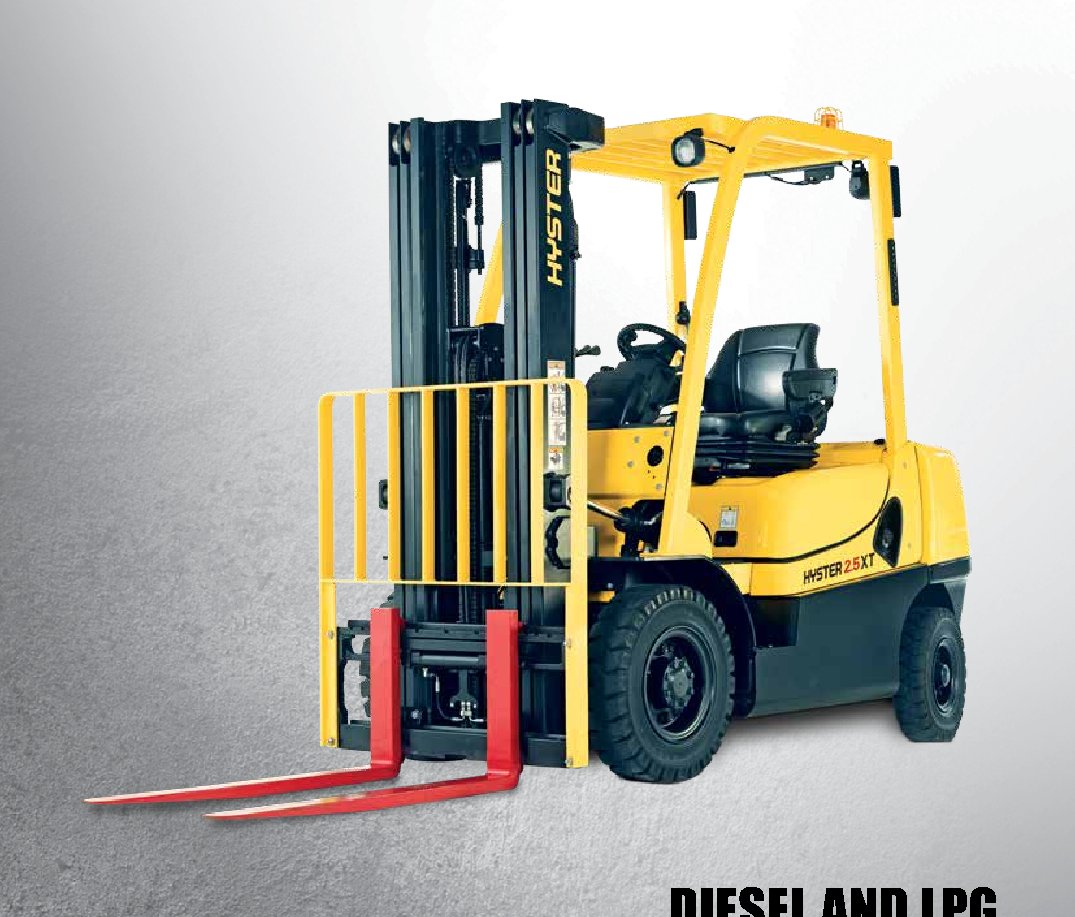

Hyster H2.0XT Specs
Quick-reference specifications for the Hyster H2.0XT forklift, from the manufacturer’s spec sheet and published specifications.
- Rated Capacity
- 2000 kg2.0 t
Performance 12 specs
| Basic Powershift | 1-speed |
|---|---|
| Back tilt | 6° |
| Rated Capacity | 2000 kg (2.0 t) |
| Load Centre Distance | 500 mm |
| Lifting Height | 5 m |
| Travel Speed with Load | 16.9 km/h |
| Travel Speed without Load | 17 km/h |
| Hoisting Speed with Load | 0.42 m/s |
| Hoisting Speed without Load | 0.52 m/s |
| Lowering Speed with Load | 0.5 m/s |
| Maximum Climbing Ability | 29.3% |
| Turning Radius | 2.175 m |
Dimensions 7 specs
| Overall Length | 3750 mm |
|---|---|
| Length to Face of Forks | 1623 mm |
| Overall Width | 1147 mm |
| Construction Height | 2149 mm |
| Mast Lowered Height | 2075 mm |
| Free Lift | 165 mm |
| Wheelbase | 1650 mm |
Weight 3 specs
| Service Weight | 3400 kg (3.4 t) |
|---|---|
| Axle Loading Laden (Front/Rear) | 4984 kg / 767 kg |
| Axle Loading Unladen (Front/Rear) | 1767 kg / 1983 kg |
Power / Engine 3 specs
| Engine Type | 4TNE92 |
|---|---|
| Engine Power | 30 kW |
| Engine Displacement | 2.6 L |
Hydraulics / Fluids 3 specs
| Front Tyre Size | 7.00×12-12 |
|---|---|
| Rear Tyre Size | 6.00x |
| Transmission | Powershift 1-speed Automatic |
