Forklift · Hyster

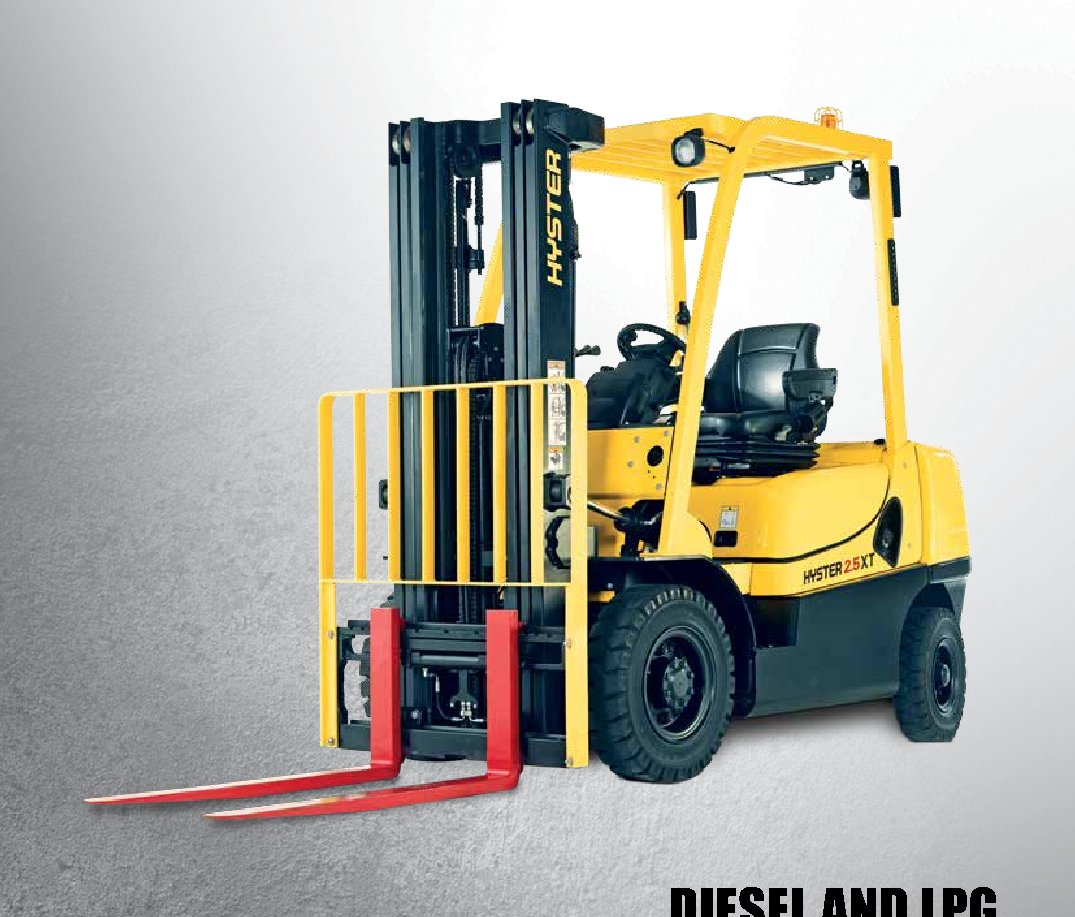

Hyster H2.5XT Specs
Quick-reference specifications for the Hyster H2.5XT forklift, from the manufacturer’s spec sheet and published specifications.
Performance 8 specs
| Basic Powershift | 1-speed |
|---|---|
| Back tilt | 6° |
| Load Capacity (nominal at COG) | 5,512 lb (2.5 t) |
| Max Lift Height (standard) | 16.4 ft (5 m) |
| Travel Speed (loaded/unloaded) | 10.5/10.6 mph (16.9/17 km/h) |
| Hoisting Speed (loaded/unloaded) | 0.41/0.52 m/s |
| Lowering Speed (loaded) | 0.5 m/s |
| Turning Radius | 7.3 ft (2.236 m) |
Dimensions 2 specs
| Total Width | 45.2 in (1147 mm) |
|---|---|
| Construction Height (mast lowered) | 84.6 in (2149 mm) |
Weight 2 specs
| Unladen Weight (diesel) | 8,089 lb (3.67 t) |
|---|---|
| Unladen Weight (LPG variant) | 8,905 lb (4.04 t) |
Power / Engine 2 specs
| Engine Model | 4TNE92 |
|---|---|
| Engine Power | 40.2 hp (30 kW) |
