Forklift · Hyster

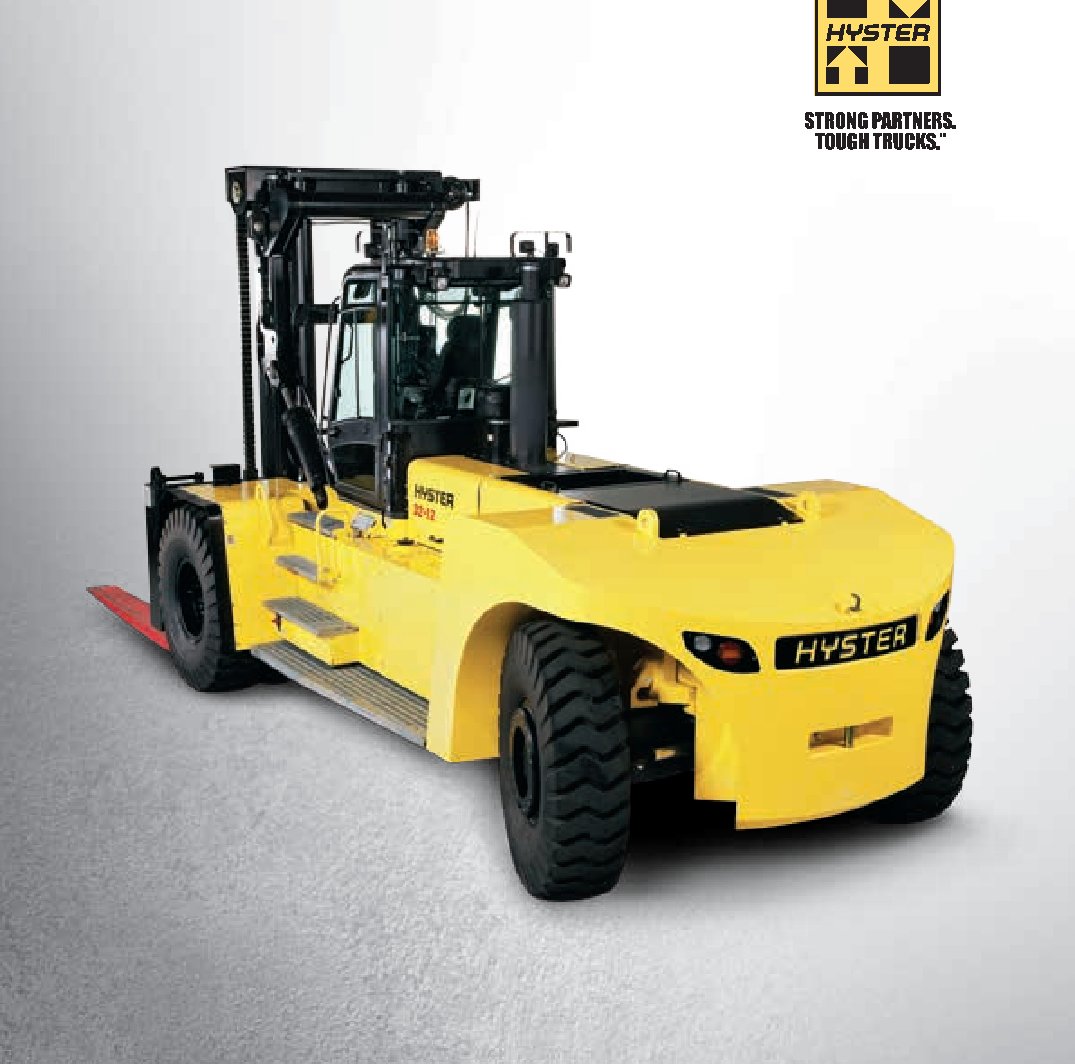

Hyster H25XM-12 Specs
Quick-reference specifications for the Hyster H25XM-12 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 20.34 ft6.2 m
Performance 11 specs
| Hook-type forks | 2440 mm long. |
|---|---|
| Rated Load Capacity | 55,115 lb (25,000 kg) |
| Load Center of Gravity | 1,200 mm |
| Maximum Lift Height | 20.34 ft (6.2 m) |
| Travel Speed with Load | 26 km/h |
| Travel Speed without Load | 27 km/h |
| Hoisting Speed with Load | 0.3 m/s |
| Hoisting Speed without Load | 0.35 m/s |
| Lowering Speed with Load | 0.5 m/s |
| Maximum Climbing Ability | 29% |
| Turning Radius | 20.3 ft (6.185 m) |
Dimensions 5 specs
| Maximum Fork Height | 12 ft (3,655 mm) |
|---|---|
| Overall Lowered Height | 12.45 ft (3,794 mm) |
| Total Width | 10.58 ft (3,225 mm) |
| Construction Height | 11.1 ft (3,385 mm) |
| Fork Dimensions | 105 x 280 x 2,440 mm |
Weight 1 spec
| Unladen Weight | 85,100 lb (38.63 t) |
|---|
Power / Engine 2 specs
| Engine Model | QSC8.3 |
|---|---|
| Engine Power | 265 hp (198 kW) |
