Forklift · Hyster

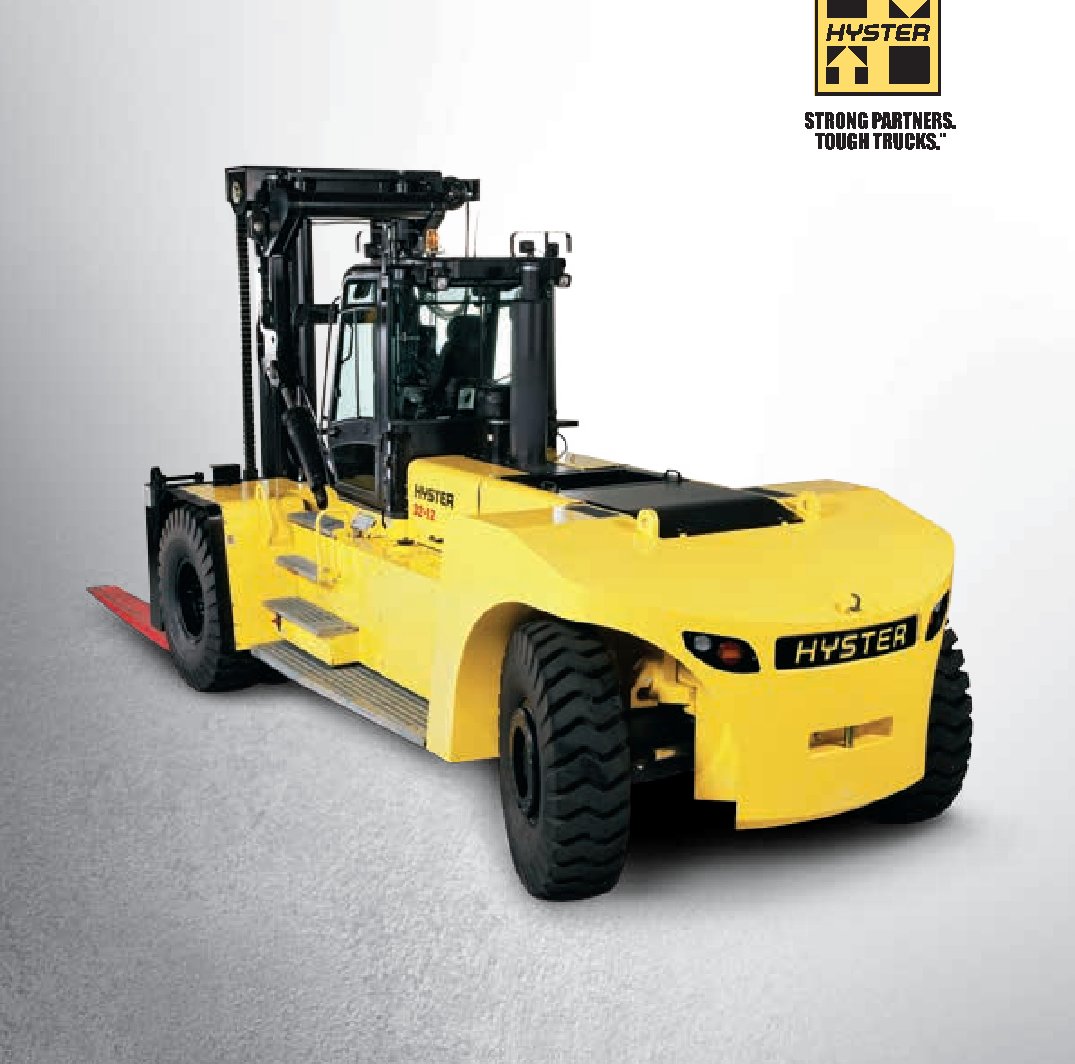

Hyster H32XM12 Specs
Quick-reference specifications for the Hyster H32XM12 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating weight
- 101,435 lb46.01 t
Performance 7 specs
| Hook-type forks | 2440 mm long. |
|---|---|
| Nominal load at COG | 70,548 lb (32 t) |
| Lifting height | 20.34 ft (6.2 m) |
| Travel speed with load | 25 km/h |
| Travel speed without load | 26 km/h |
| Maximum climbing ability | 27% |
| Turning radius | 22.47 ft (6.848 m) |
Dimensions 2 specs
| Total width | 133 in (3,380 mm) |
|---|---|
| Construction height | 136 in (3,455 mm) |
Weight 1 spec
| Operating weight | 101,435 lb (46.01 t) |
|---|
Power / Engine 2 specs
| Engine type | QSC8.3 |
|---|---|
| Engine power | 265 hp (198 kW) |
