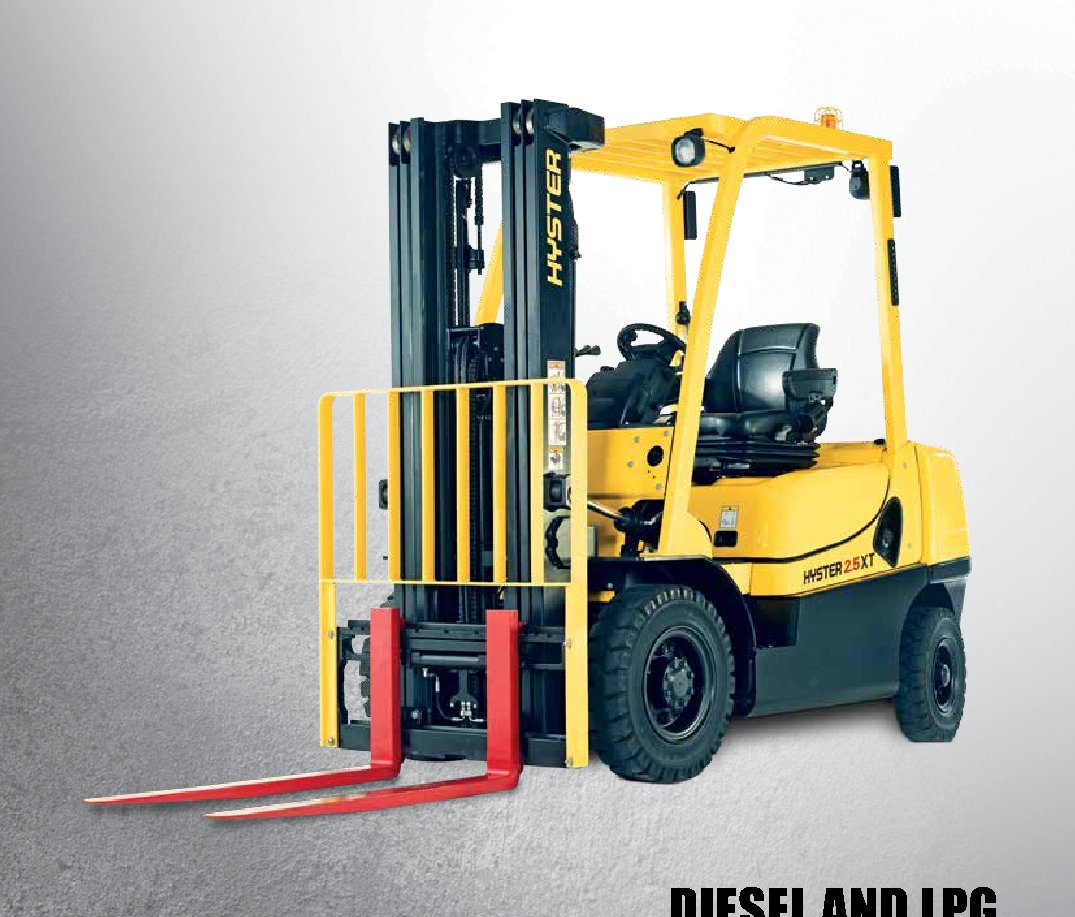

Hyster H3.0XT Specs
Quick-reference specifications for the Hyster H3.0XT forklift, from the manufacturer’s spec sheet and published specifications.
- Rated Capacity
- 6,614 lb3,000 kg
Performance 16 specs
| Basic Powershift | 1-speed |
|---|---|
| Back tilt | 6° |
| Full Free Lift | 6320 1680 |
| Limited Free Lift | 2490 1930 2410 |
| Rated Capacity | 6,614 lb (3,000 kg) |
| Load Centre Distance | 19.7 in (500 mm) |
| Lift Height (max mast extended) | 14.2 ft (4,335 mm) |
| Lift Height (standard) | 10.2 ft (3,105 mm) |
| Free Lift Height | 0.49 ft (150 mm) |
| Mast Lowered Height | 7.2 ft (2,195 mm) |
| Travel Speed (with load) | 12.3 mph (19.8 km/h) |
| Travel Speed (without load) | 12.4 mph (20 km/h) |
| Hoisting Speed (with load) | 0.57 m/s |
| Hoisting Speed (without load) | 0.60 m/s |
| Lowering Speed (with load) | 0.58 m/s |
| Turning Radius | 7.63 ft (2.324 m) |
Dimensions 8 specs
| Overall Length | 12.3 ft (3,750 mm) |
|---|---|
| Overall Width | 3.95 ft (1,206 mm) |
| Overhead Guard Height | 7.35 ft (2,241 mm) |
| Wheelbase | 5.58 ft (1,700 mm) |
| Front Tire Size | 28 X 9-15 or 7.00×12 |
| Rear Tire Size | 6.50 X 10 or 6.00x |
| Front Tread Width | 38.2 in (970 mm) |
| Rear Tread Width | 39.1 in (993 mm) |
Weight 6 specs
| Service Weight | 4,650 kg (10,251 lb) – LPG version |
|---|---|
| Service Weight | 4,690 kg (10,340 lb) – Diesel version |
| Axle Loading Front (laden) | 6,556 kg (14,450 lb) – LPG |
| Axle Loading Rear (laden) | 1,077 kg (2,374 lb) – LPG |
| Axle Loading Front (unladen) | 1,872 kg (4,125 lb) – LPG |
| Axle Loading Rear (unladen) | 2,778 kg (6,126 lb) – LPG |
Power / Engine 5 specs
| Engine Type (Standard) | Yanmar 2.6 L Diesel |
|---|---|
| Engine Power (PSI LPG) | 61.6 hp (46 kW) |
| Engine Displacement (PSI) | 2.361 L |
| Transmission | Powershift 1-speed Automatic |
| Drive Type | 4x |
