- Hyster H3.5FT
Forklift · Hyster

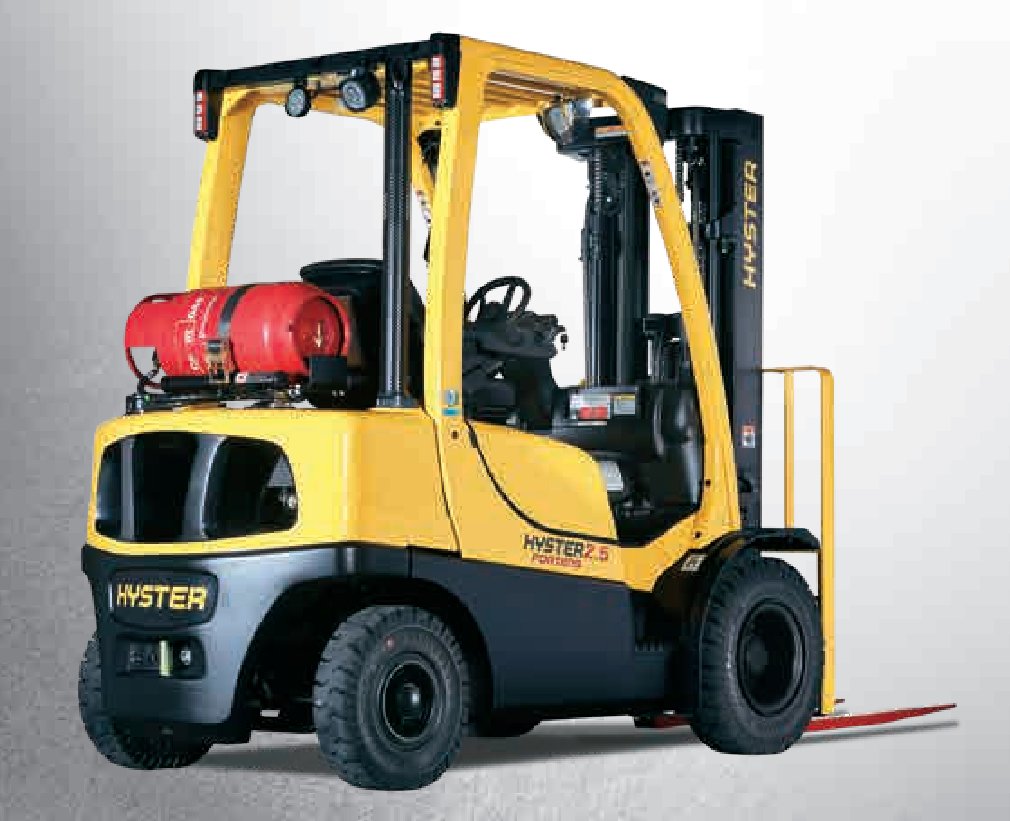

Hyster H3.5FT Specs
Quick-reference specifications for the Hyster H3.5FT forklift, taken from the manufacturer’s spec sheet.
- Rated capacity/rated load Q1
- 3.5 t
- Gradeability – 1.6 km/h, with / without load
- 15.0 / 23.0 %
Performance 16 specs
| Drive | LPG |
|---|---|
| Rated capacity/rated load Q1 | 3.5 t |
| Tilt of mast / fork carriage forward / backward | 6 / 5 ° |
| Turning radius Wa | 2380 mm |
| Internal turning radius b | 647 mm |
| Travel speed with / without load | 19.1 / 20.3 km/h |
| Travel speed, laden/unladen, backwards | 19.1 / 20.3 km/h |
| Lifting speed with / without load | 0.53 / 0.55 m/s |
| Lowering speed with / without load | 0.53 / 0.47 m/s |
| Drawbar pull, laden/unladen | 16905 / 12594 N |
| Gradeability – 1.6 km/h, with / without load | 15.0 / 23.0 % |
| Service brake | Hydraulic |
| Rated speed | 2700 rpm |
| Service brake Type | Drum or Oil immersed |
| Parking brake Type | Mechanical |
| Sound pressure level at the driver’s seat Lpaz | 79 dB (A) |
Dimensions 24 specs
| Load centre distance c | 500 mm |
|---|---|
| Load distance, centre of drive axle to fork x | 483 mm |
| Wheelbase y | 1700 mm |
| Tyre type | Superelastic |
| Tyre size, front | 28 X 9 – 15 |
| Tyre size, rear | 6.50 X 10 |
| Height, mast lowered h | 2195 mm |
| Free lift h | 140 mm |
| Lift h | 3055 mm |
| Height, mast extended h | 3805 mm |
| Height of overhead guard (cabin) h | 2185 mm |
| Cab height (open cab) | 2206 mm |
| Seat height relating to SIP h | 1086 mm |
| Coupling height h | 390 mm |
| Overall length l | 3734 mm |
| Length to face of forks l | 2734 mm |
| Overall width b1/b | 1186 / 1321 / 1601 mm |
| Fork dimensions DIN ISO 2331 s/e/l | 50 X 120 X 1000 mm |
| Fork carriage ISO 2328, class/type A, B | III A |
| Fork carriage width b | 1070 mm |
| Ground clearance, laden, below mast m | 132 mm |
| Ground clearance, centre of wheelbase m | 185 mm |
| Aisle width for pallets 1000 × 1200 crossways Ast | 4063 mm |
| Aisle width for pallets 800 × 1200 lengthways Ast | 4263 mm |
Weight 3 specs
| Service weight | 4799 kg |
|---|---|
| Axle loading with load, front / rear | 7319 / 980 kg |
| Axle loading without load, front / rear | 1797 / 3002 kg |
Power / Engine 8 specs
| Fuel consumtion according to VDI cycle | 3.3 l/h |
|---|---|
| Engine manufacturer / model | PSI (2.4 L) |
| Engine power output according to ISO 1585 | 33.9 kW |
| Number of cylinders / displacement | 4 (2659 cm3) |
| Alternator output | 120 A |
| Battery voltage, rated capacity | 24 V (200 Ah) |
| Drive control / transmission Type | Automatic Powershift |
| Guaranteed sound power 2001/14/EC Lwaz | 102 dB |
Hydraulics / Fluids 3 specs
| Operating pressure for attachments | 0 – 155 bar |
|---|---|
| Oil volume for attachments | 75 l/min |
| Hydraulic oil tank, capacity | 45.8 l |
