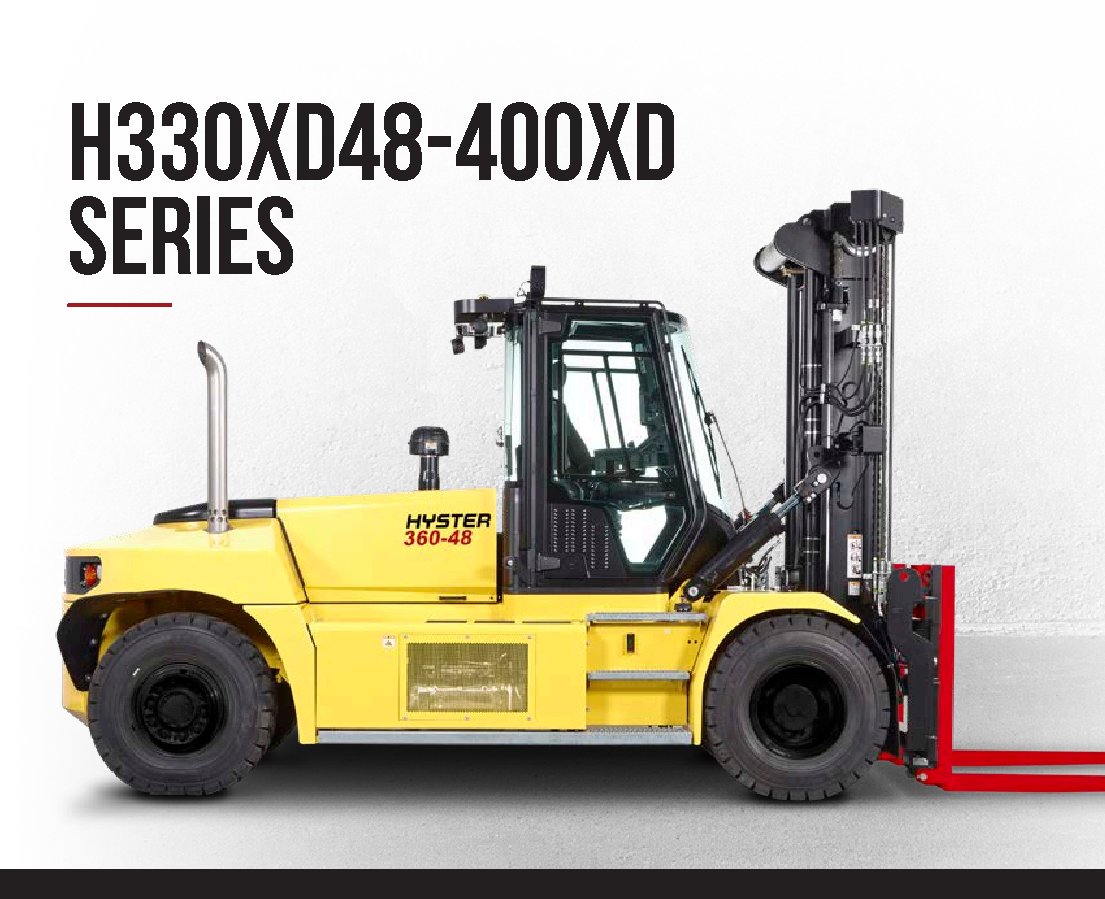

Hyster H360XD48 Specs
Quick-reference specifications for the Hyster H360XD48 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 157 in3,988 mm
Performance 12 specs
| Load distance | x |
|---|---|
| CUMMINS QSB | 6.7 L |
| CUMMINS QSB 6.7L | CUMMINS QSB 6.7 L |
| Load Capacity | 36,000 lb (16,329 kg) |
| Load Center | 48 in (1,220 mm) |
| Maximum Lift Height | 157 in (3,988 mm) |
| Travel Speed (Forward/Reverse) – Full Load | 17.0 mph (27.4 km/h) |
| Maximum Travel Speed | 17.9 mph (28.8 km/h) |
| Lifting Speed – Full Load | 77 ft/min (0.39 m/s) |
| Maximum Lift Speed | 86.6 ft/min (0.44 m/s) |
| Lowering Speed – Full Load | 106 ft/min (0.54 m/s) |
| Turning Radius (Outside) | 192 in (4,877 mm) |
Dimensions 11 specs
| Height to top of operator compartment (open cab) | h |
|---|---|
| Height, top of operator comp (closed cab) | h |
| Height, top of operator comp (closed cab w/ airco) | h |
| Overall Length | 307 in (7,798 mm) |
| Overall Width | 100 in (2,540 mm) |
| Mast Lowered Height | 146 in (3,708 mm) |
| Wheelbase | 138 in (3,505 mm) |
| Fork Spread (Outside) | 96 in (2,438 mm) |
| ForkSize(TxWxL) | 4 x 8 x 96 in (102 x 203 x 2,438 mm) |
| Tilt Range (Forward/Backward) | 15°F / 10°B |
| Basic Right-Angle Stack | 229.0 in (5,815 mm) |
Weight 3 specs
| Total Weight (Without Battery) | 51,546 lb (23,381 kg) |
|---|---|
| Weight Distribution – No Load (Front/Rear) | 21,754 lb / 29,793 lb (9,863 kg / 13,515 kg) |
| Weight Distribution – Full Load (Front/Rear) | 79,973 lb / 7,574 lb (36,282 kg / 3,434 kg) |
Power / Engine 8 specs
| Engine Make/Model | Cummins QSB 6.7 L |
|---|---|
| Rated Torque @ RPM | 540 lb-ft @ 1,500 rpm (732 Nm @ 1,500 rpm) |
| Engine Displacement | 409 cu in (6.7 L) |
| Number of Cylinders | 6 |
| Fuel Tank Capacity | 40 gal (151 L) |
| Battery Voltage | 24 V |
| Transmission Type | ZF WG 161 Powershift |
| Transmission Speeds | 3 Forward / 3 Reverse |
Hydraulics / Fluids 1 spec
| Auxiliary Hydraulic Max Flow Rate | 26 gpm (98.4 L/min) |
|---|
