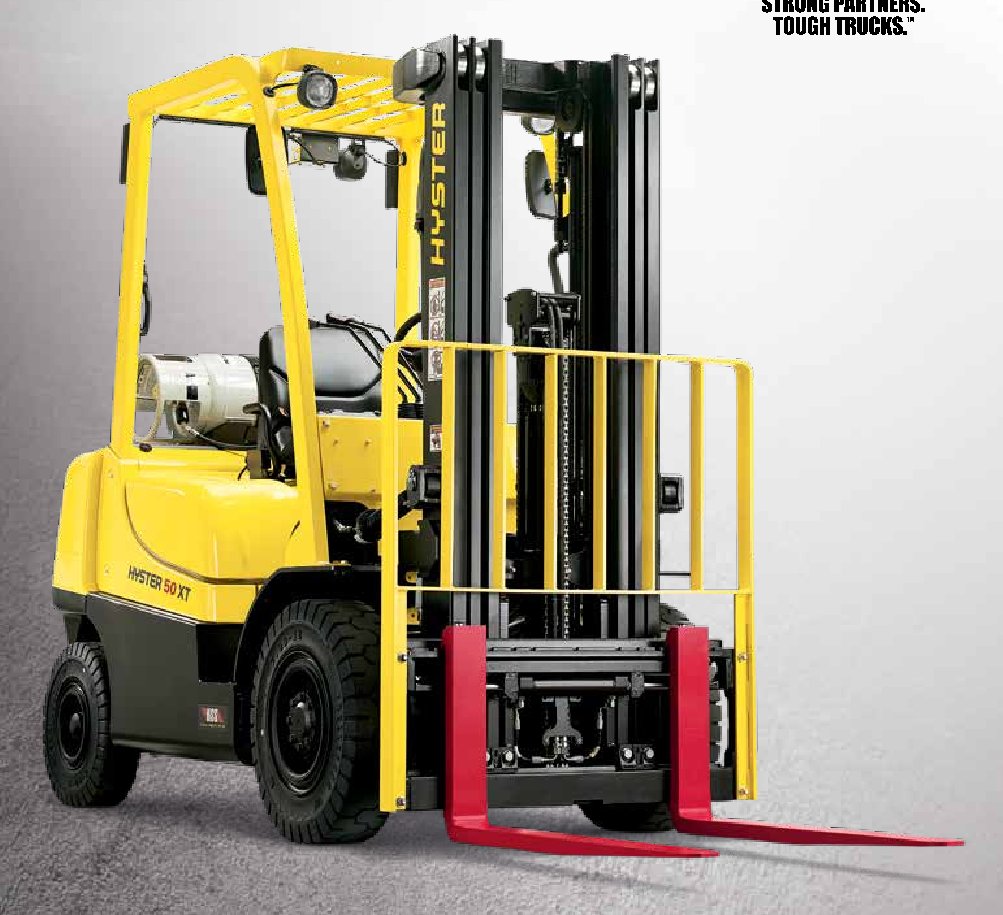

Hyster H50XT Specs
Quick-reference specifications for the Hyster H50XT forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 5000 lb2268 kg
- Gradeability, Standard Transmission @ 1 mph RL/NL
- 30.2/27.6 Percent
Performance 9 specs
| Rated Capacity | 5000 lb (2268 kg) |
|---|---|
| Mast Tilt Angles, Forward/Backward | 6/6 degrees |
| Turning Radius, Minimum Outside (OTR) | 85.7 in (2178 mm) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 128/134 ft/min (0.65/0.68 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 120/126 ft/min (0.61/0.64 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 114/98 ft/min (0.58/0.50 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 114/98 ft/min (0.58/0.50 m/s) |
| Maximum drawbar pull RL/NL | 4916/2217 lb (2230/1006 kg) |
| Service Brake – Method of Control/Operation | Foot/Hydraulic |
Dimensions 20 specs
| Load Center, Distance | 24 in (610 mm) |
|---|---|
| Step Height | 16.3 in (415 mm) |
| Tire Type – Cushion, Solid, Pneumatic | Pneumatic |
| Lift Height, Top of Fork (TOF) | 129 in (3292 mm) |
| Forks, Thickness x Width x Length | 1.6 X 3.9 X 42 in (40 X 100 X 1067 mm) |
| Length To Face of Forks | 99.5 in (2528 mm) |
| Overall Width, Standard Tread | 45.7 in (1162 mm) |
| Overall Width, Wide Tread | 52 in (1322 mm) |
| Height, Standard Mast – Lowered | 86 in (2170 mm) |
| Height, Standard Mast – Extended with LBR | 147 in (3715 mm) |
| Height, Standard Mast – Extended without LBR | 154 in (3904 mm) |
| Height, Standard Overhead Guard | 87.7 in (2228 mm) |
| Height, Optional Overhead Guard | 83.8 in (2128 mm) |
| Length, Center of Wheel to Face of Forks | 18.5 in (471 mm) |
| Tire Size, Front | 7.00 x 12 – 12 |
| Wheelbase | 63.9 in (1623 mm) |
| Ground Clearance, Center of Wheelbase NL | 7.5 in (190 mm) |
| Head Clearance – Non-Suspension | 46.9 in (1192 mm) |
| Head Clearance – Standard OHG Non-Suspension | 43.0 in (1092 mm) |
| Head Clearance – Optional OHG Non-Suspension | 36.9 in (939 mm) |
Weight 4 specs
| Weight, Standard Truck (2-Stg. LFL 84/127) NL | 8910 lb (4040 kg) |
|---|---|
| Weight, Standard Truck (2-Stg. LFL 84/127) RL | 13910 lb (6308 kg) |
| Axle Loading, Static Front/Rear NL | 3695/5210 lb (1676/2363 kg) |
| Axle Loading, Static Front/Rear RL | 12024/1881 lb (5453/853 kg) |
Power / Engine 9 specs
| Power Type – LPG, Dual Fuel | LPG / Dual Fuel |
|---|---|
| Travel Speed, Powershift Transmission RL/NL | 11.4/11.6 mph (18.4/18.6 km/h) |
| Drawbar Pull, Standard Transmission @ 1 mph RL/NL | 4154/2217 lb (1884/1006 kg) |
| Gradeability, Standard Transmission @ 1 mph RL/NL | 30.2/27.6 Percent |
| Battery Type | Maintenance Free |
| Volts/Cold Cranking Amps | 12/475 v/cca |
| Engine, Manufacturer/Model | PSI (2.4 L) |
| Transmission Type, Standard | Electronic Powershift |
| Standard Speeds, Forward – Reverse | 1-1 |
