Forklift · Hyster

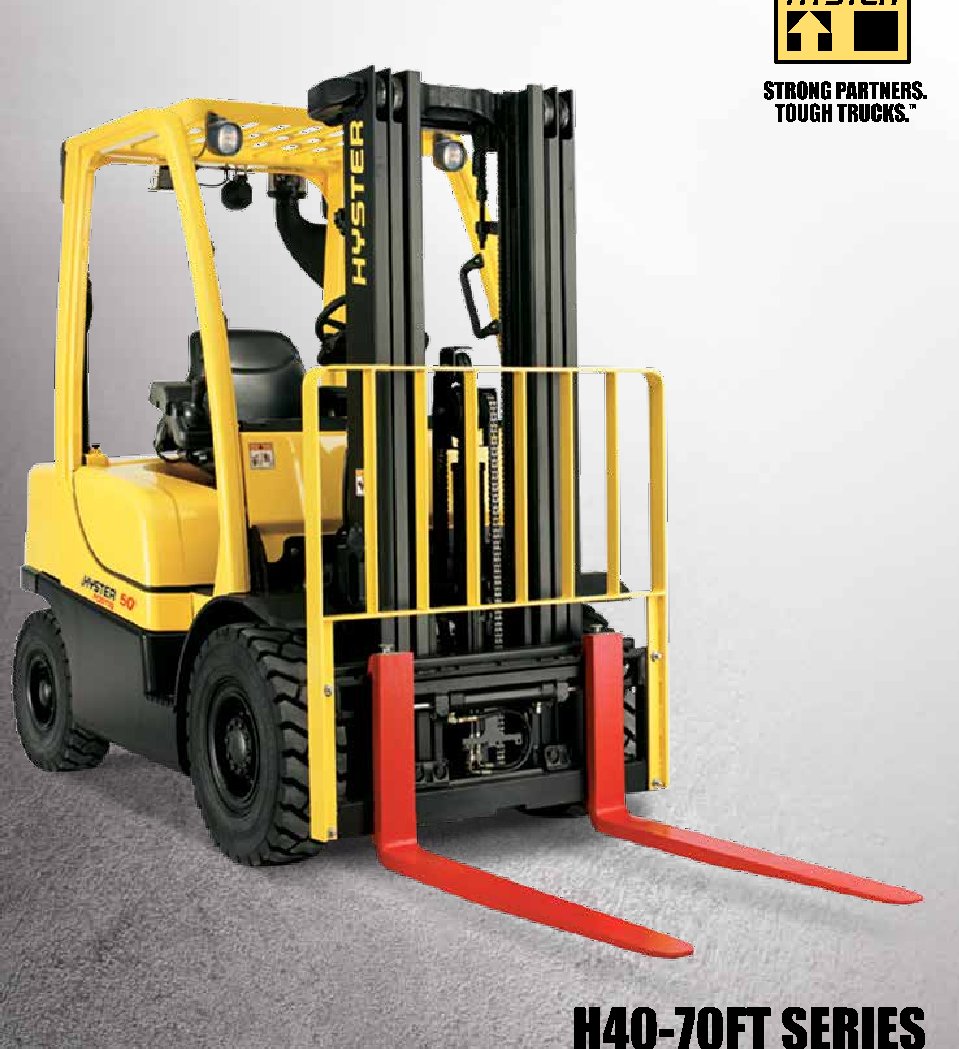

Hyster H60FT Specs

Quick-reference specifications for the Hyster H60FT forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Rated Capacity: 6000 lb2722 kg

Performance 11 specs

Rated Capacity	6000 lb (2722 kg)
Load Center, Distance	24.0 in (610 mm)
Mast Tilt Angles, Forward/Backward	6F/6B degrees
Turning Radius, Minimum Outside (OTR)	89.6 in (2277 mm)
Lift Speed, Standard 2-Stage LFL RL/NL	104/108 ft/min (.53/.55 m/s)
Lift Speed, Optional 2-Stage FFL RL/NL	102/102 ft/min (.52/.52 m/s)
Lift Speed, Optional 3-Stage FFL RL/NL	100/104 ft/min (.51/.53 m/s)
Lowering Speed, Standard 2-Stage LFL RL/NL	104/93 ft/min (.53/.47 m/s)
Lowering Speed, Optional 2-Stage FFL RL/NL	98/83 ft/min (.50/.42 m/s)
Lowering Speed, Optional 3-Stage FFL RL/NL	114/87 ft/min (.58/.44 m/s)
Maximum drawbar pull RL/NL	4497/2346 lb (2040/1064 kg)

Dimensions 14 specs

Step Height	16 in (407 mm)
Tire Type – Cushion, Solid, Pneumatic	Pneumatic
Lift Height, Top of Fork (TOF)	126 in (3209 mm)
Forks, Thickness x Width x Length	2.0 X 4.9 X 42 in (50 X 125 X 1067 mm)
Fork Spread, Outside Dimensions	43.3 in (1099 mm)
Length To Face of Forks	103.4 in (2625 mm)
Overall Width, Standard Tread	46.7 in (1186 mm)
Overall Width, Wide Tread	52.0 in (1321 mm)
Height, Standard Mast – Lowered	89 in (2245 mm)
Height, Standard Mast – Extended with LBR	175 in (4330 mm)
Height, Standard Mast – Extended without LBR	154 in (3905 mm)
Height, Standard Overhead Guard	86.0 in (2185 mm)
Height, Optional Overhead Guard	83 in (2118 mm)
Length, Center of Wheel to Face of Forks	18.9 in (480 mm)

Power / Engine 3 specs

Power Type – LPG, Diesel, Dual Fuel	LPG Dual Fuel LPG Diesel
Travel Speed, Powershift Transmission RL/NL	11.8/12.4 mph (19.0/20.0 km/h)
Drawbar Pull, Standard Transmission @ 1 mph RL/NL	3845/2346 lb (1744/1064 kg)

Hyster H60FT spec sheet (PDF)
