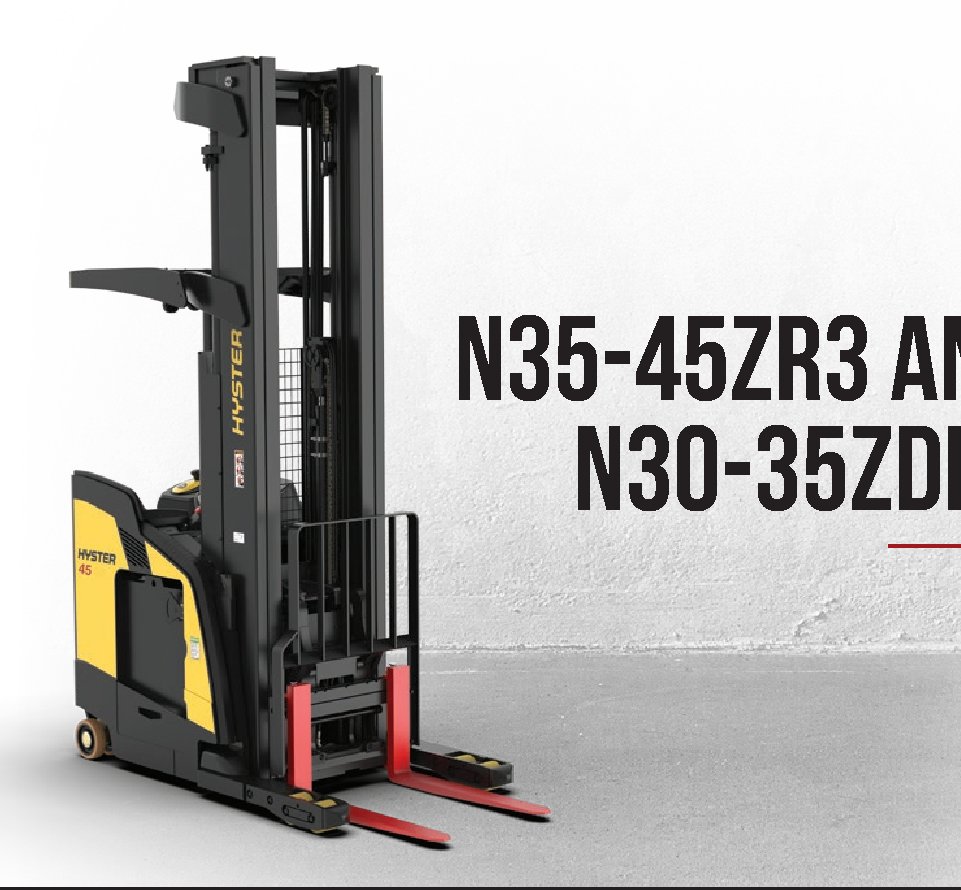

Hyster N35ZDR3 Specs
Quick-reference specifications for the Hyster N35ZDR3 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 3500 lb1588 kg
Performance 5 specs
| Rated capacity | 3500 lb (1588 kg) |
|---|---|
| Mast tilt angle, forward/back | 3/4 degrees |
| Stability – comply with ANSI | YES |
| Size – front load wheels, standard | 5 x 2.9 |
| Brakes, service/parking (method of control) | Foot/auto |
Dimensions 4 specs
| Load center, distance | 24 in (610 mm) |
|---|---|
| Tire type – load/caster/drive | Poly/poly/poly |
| Forks, standard (length x width x thickness) | 1.60 x 3.9 x 42 in |
| Size, standard – drive tire/dual casters | 13.5 x 5.5 / 7.9 x 2.2 |
Weight 1 spec
| Axle loading with assembly retracted (front/rear) | 7578 / 4458 lb |
|---|
Power / Engine 5 specs
| Power type – electric, diesel, LPG | Electric – 36 V |
|---|---|
| Truck weight, without battery (approximate) | 6190 lb |
| Battery compartment size, 16.25″ – (LxWxH) | 39.0 x 16.25 x 31.5 in |
| Traction motor control method | Transistor |
| Hoist motor control method | Transistor |
